Once the measurement has been finished, you will be working under the review mode. In this

mode, three different views can be seen by sliding up your fingers: B-scan, C-scan, and full

3D matrix view.

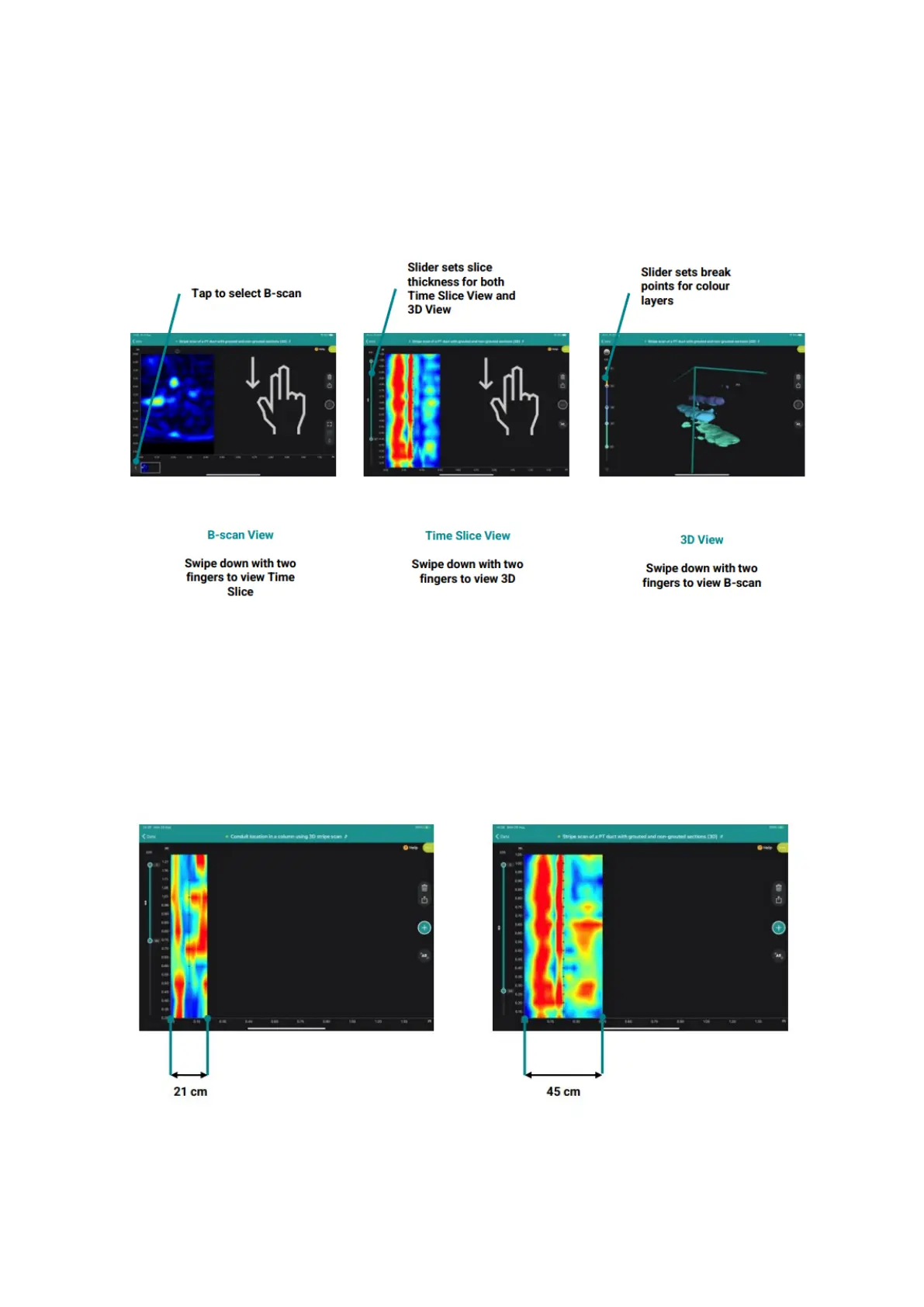

Figure 64: Three different views in Review Mode.

If you are using two PD8050 in parallel – 16 channels – you will be able to collect data two

times faster than in the standard mode.

Also, multiple 3D matrix scans can be combined to create larger volume scans using the

optional Pundit Vision Software.

Figure 65: 8 vs 16 channels.
