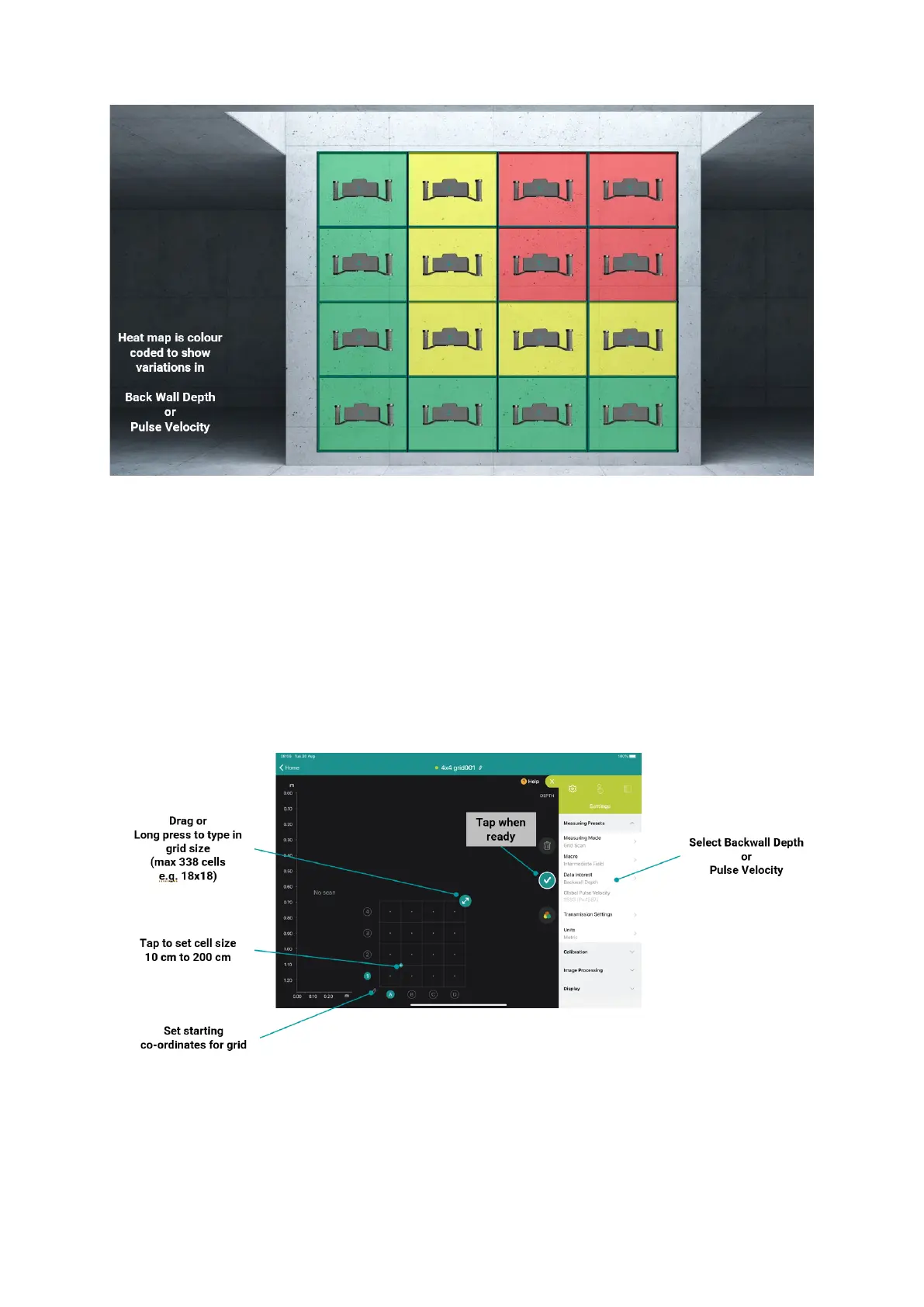

Figure 68: Grid scan heatmap.
To define the grid properties, please follow the following steps:
Drag or long-press the corner arrow to type in the grid size.
Tap the plus icon to set the cell size.
Tap the pencil icon to set the starting point for the origin of coordinates.
Select backwall depth or pulse velocity according to the data of interest.
Figure 69: Setting up the grid.
