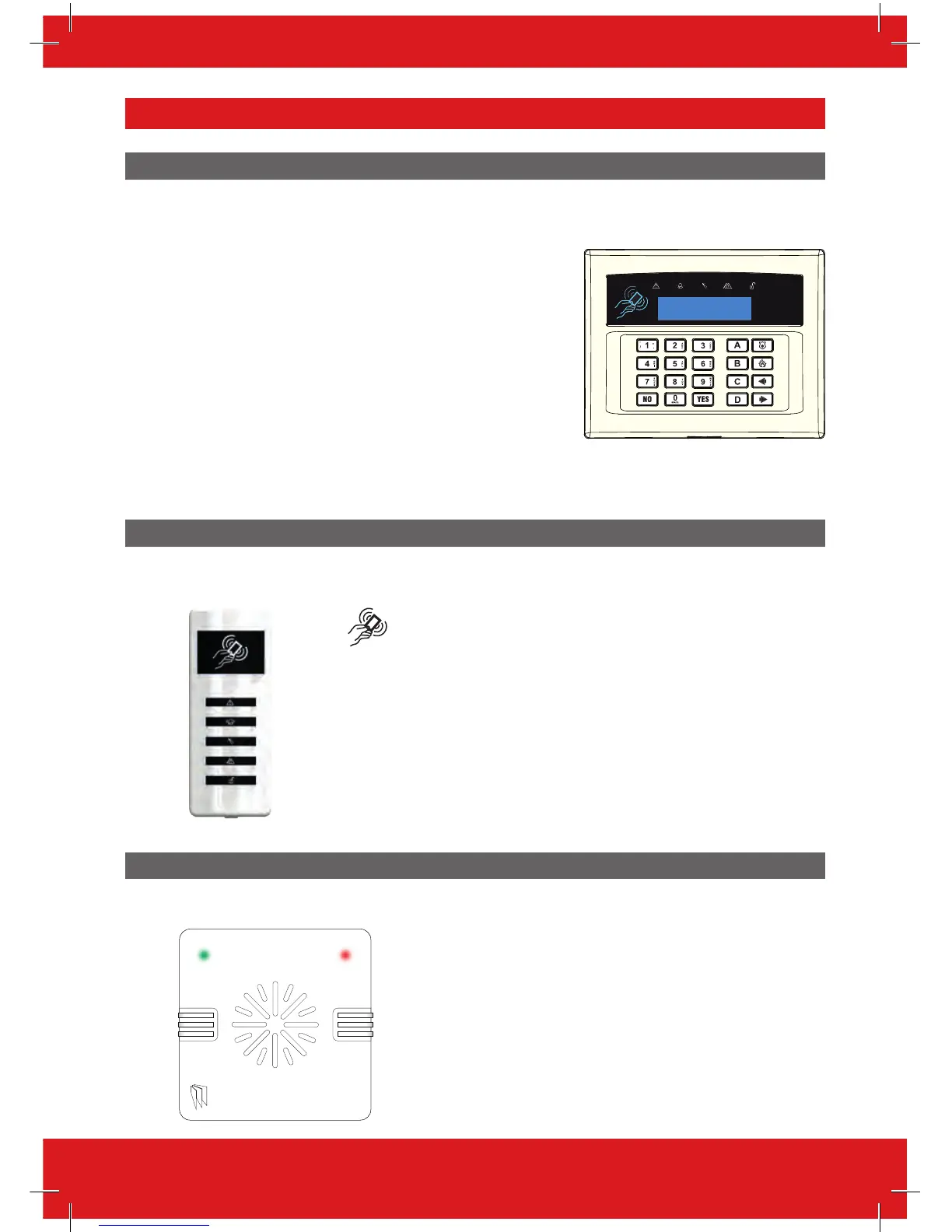

Setting Devices
Wired Keypads
Internal Tag Readers
External Tag Readers
Additional wired keypads may also be connected to the alarm
panel, please ask your engineer for more information.
a = Exits the Master Manager Menu and selects Area A
when setting.
b = Moves backwards in the Master Manager Menu and
selects Area B when setting.
c = Enables chime, displays additional information in
the event log, and selects Area C when setting.
d = Moves forward in the log, scrolls between options
and enters the Master Manager Menu and selects Area D
when setting.
p f = Not used.
[ ] = Directional buttons and enables/disables functions.
I = Selects commands.
A = Cancels items, resets the panel and moves to next item
in a menu item.
Euro 46
Time 10:09 c
The internal tag reader can be used for setting/un-setting, entry control or access control.
Ask your engineer for more details.
The external tag reader can be used for setting/un-setting, entry control or access control.
Ask your engineer for more details.
Proximity area (please present your tag here)
: Alert LED
; Alarm LED
< Tamper LED
= Fault LED
> Unset LED
To set/unset the system using the external tag reader,
present a pre-programmed tag to the centre of the device.
The device will display the system status:
Green = Unset
Red = Set
Present the tag again within 10 seconds and the system
will set or unset.
The system will then set depending on the type of exit
mode programmed (Final Door, Timed or Push to set),
