Q-See QT SERIES Manual

11

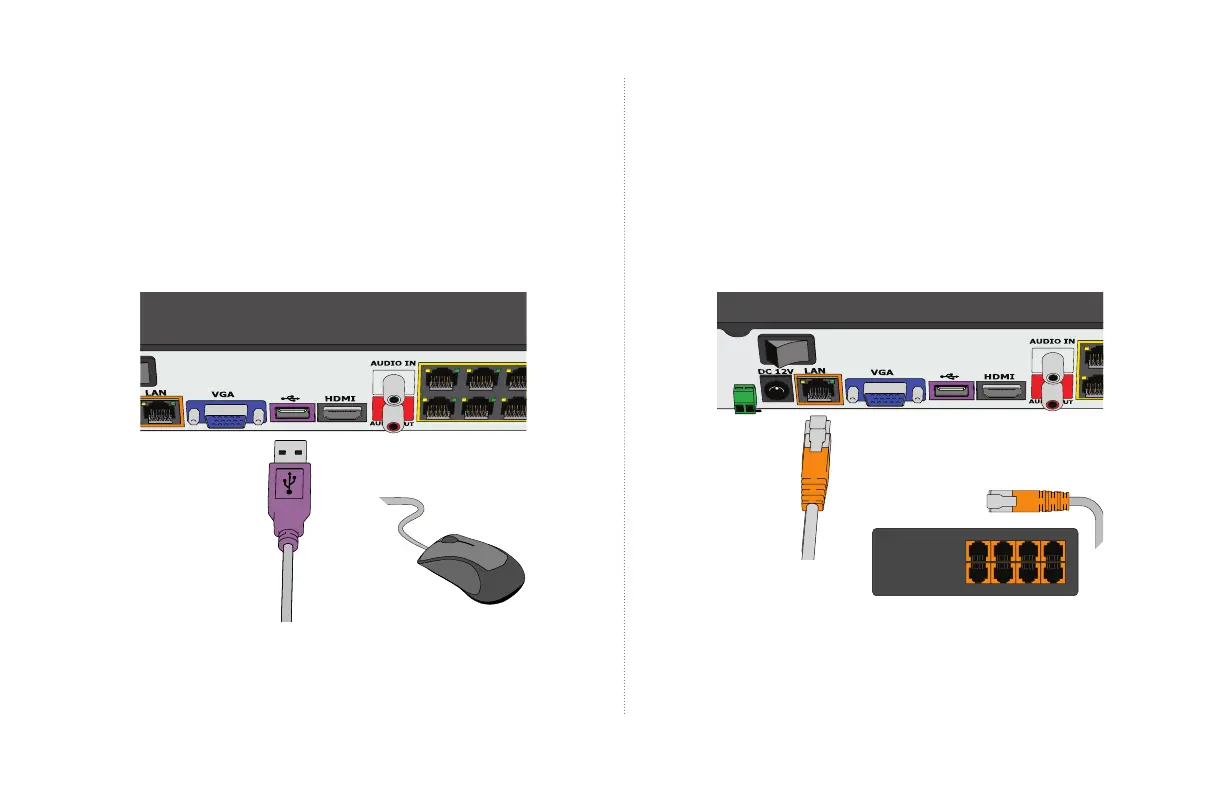

Step 4: Connect Mouse
Plug the mouse into the USB port on the back of the
NVR. If your model has two USB ports on the back,
either one will work.
Step 5: Connect To Router
A. Plug the included Network (Ethernet) cable into the
Network (LAN) port on the back of the NVR.
B. Connect the other end of the cable to an open
port on your router (not included).
You will hear a click when the cable is properly
connected
Network
Router
Network
Router
Network
Router
Network
Router

Q-See QT SERIES Specifications

General

Series	QT Series
Video Compression	H.264
Remote Viewing	Yes
HDMI Output	Yes
VGA Output	Yes
Motion Detection	Yes
Channels	4, 8, 16
Recording Resolution	1080p, 720p
Hard Drive Capacity	Up to 6TB
Mobile App Support	Yes
Network Connectivity	Ethernet
