Q-See QT SERIES Manual

10

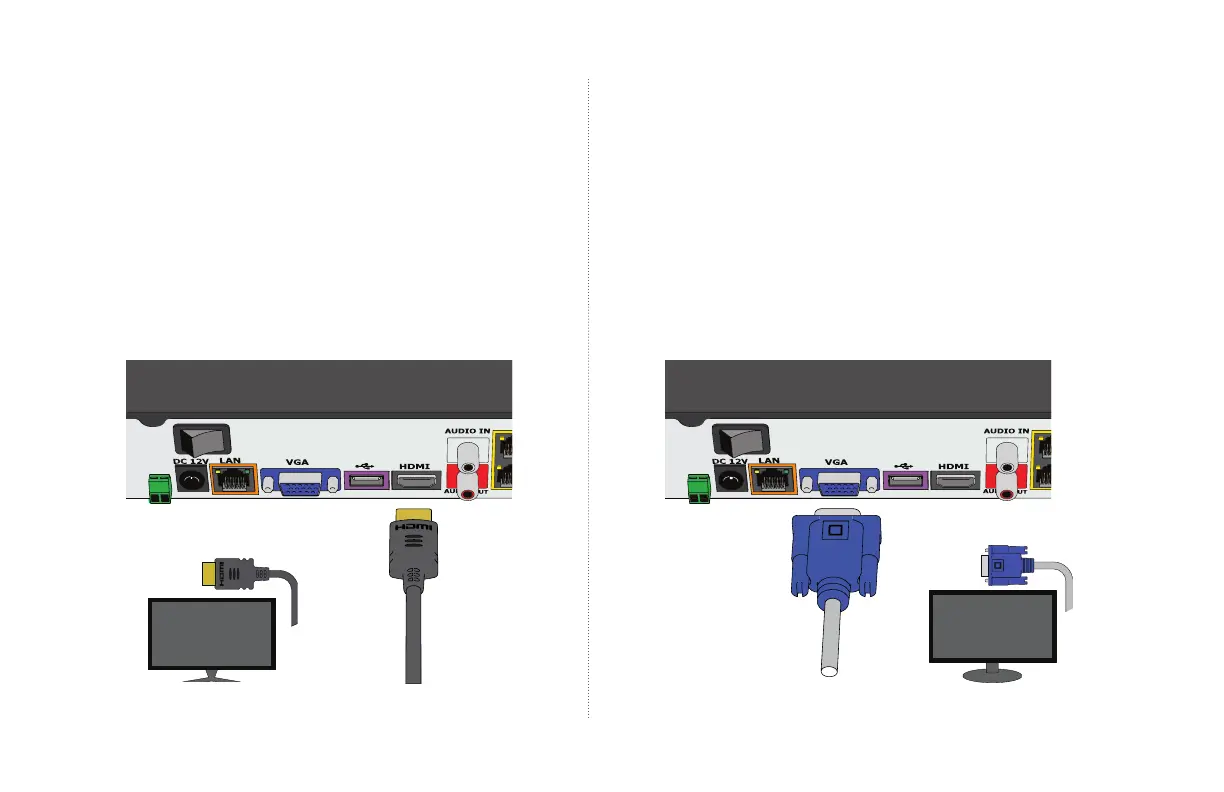

Step 3: Connect NVR to Display
Choose video display option A or B:
Option A: HDMI
A. Plug the included HDMI cable into the
NVR’s HDMI port.
B. Connect the other end of the HDMI cable
to the monitor or TV.
C. Plug the monitor or TV into a surge protector.
Option B: VGA Monitor
A. Plug a VGA cable (not included) into the
NVR’s VGA port.
B. Connect the other end of the VGA cable to the
monitor (19" or larger).
C. Plug the monitor into a surge protector.
Note: Colors are for reference only. VGA cable not included.
Note: Colors are for reference only.
HD TV
Monitor
19”+

Q-See QT SERIES Specifications

General

Series	QT Series
Video Compression	H.264
Remote Viewing	Yes
HDMI Output	Yes
VGA Output	Yes
Motion Detection	Yes
Channels	4, 8, 16
Recording Resolution	1080p, 720p
Hard Drive Capacity	Up to 6TB
Mobile App Support	Yes
Network Connectivity	Ethernet
