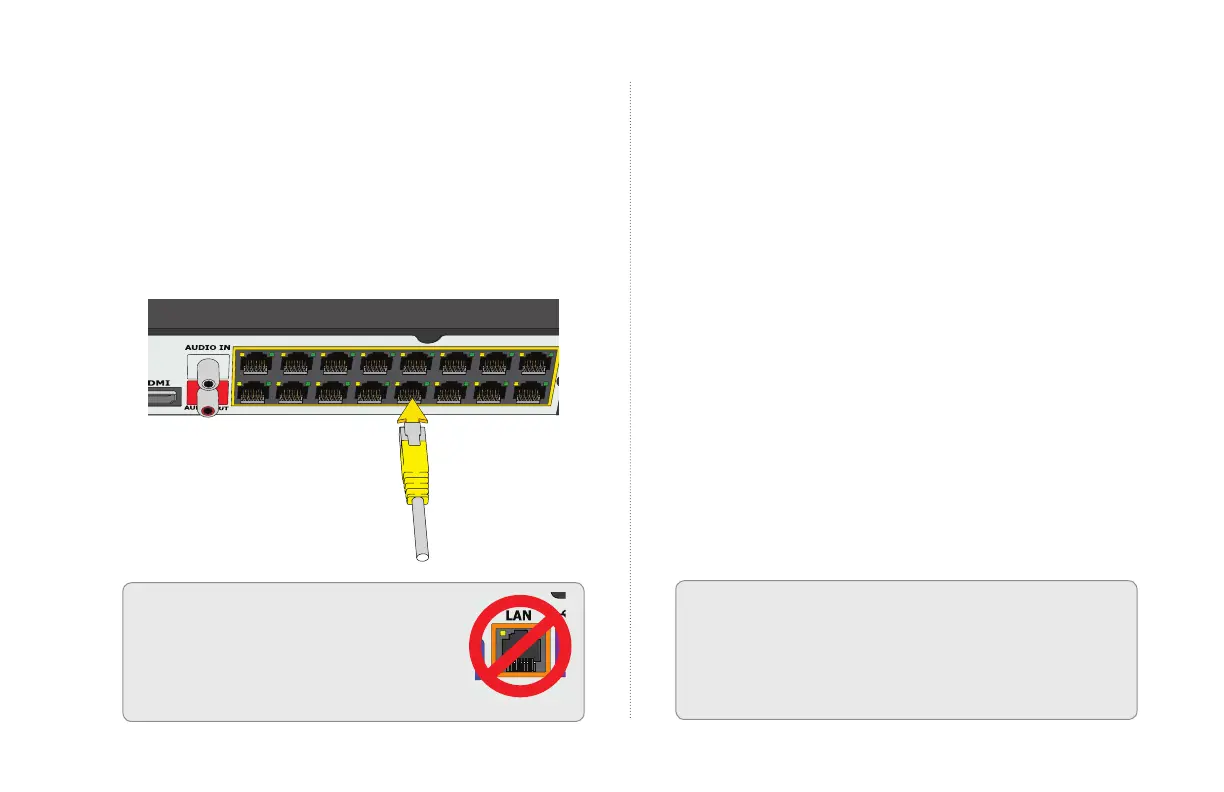

B. Plug the RJ45 connector on the other end of the
camera cable into an available Video-In POE port on
the back of the NVR. You will hear a click when the
cable is properly inserted.
These POE (Power Over Ethernet) ports will power
the camera and receive its video.
Repeat steps A-B for each camera.
Cameras will appear on screen in Live View in the
order they were connected
ATTENTION: Please test cameras and connections
prior to mounting. If there is no image or a dark screen
when you first connect the cameras, please see
Troubleshooting pg. 43.
ATTENTION: Do not connect a
camera to the separate network (LAN)
port. This is used to connect the NVR
to your network and the Internet.
Network
Router
Network
Router

Q-See QT SERIES Specifications

General

Series	QT Series
Video Compression	H.264
Remote Viewing	Yes
HDMI Output	Yes
VGA Output	Yes
Motion Detection	Yes
Channels	4, 8, 16
Recording Resolution	1080p, 720p
Hard Drive Capacity	Up to 6TB
Mobile App Support	Yes
Network Connectivity	Ethernet
