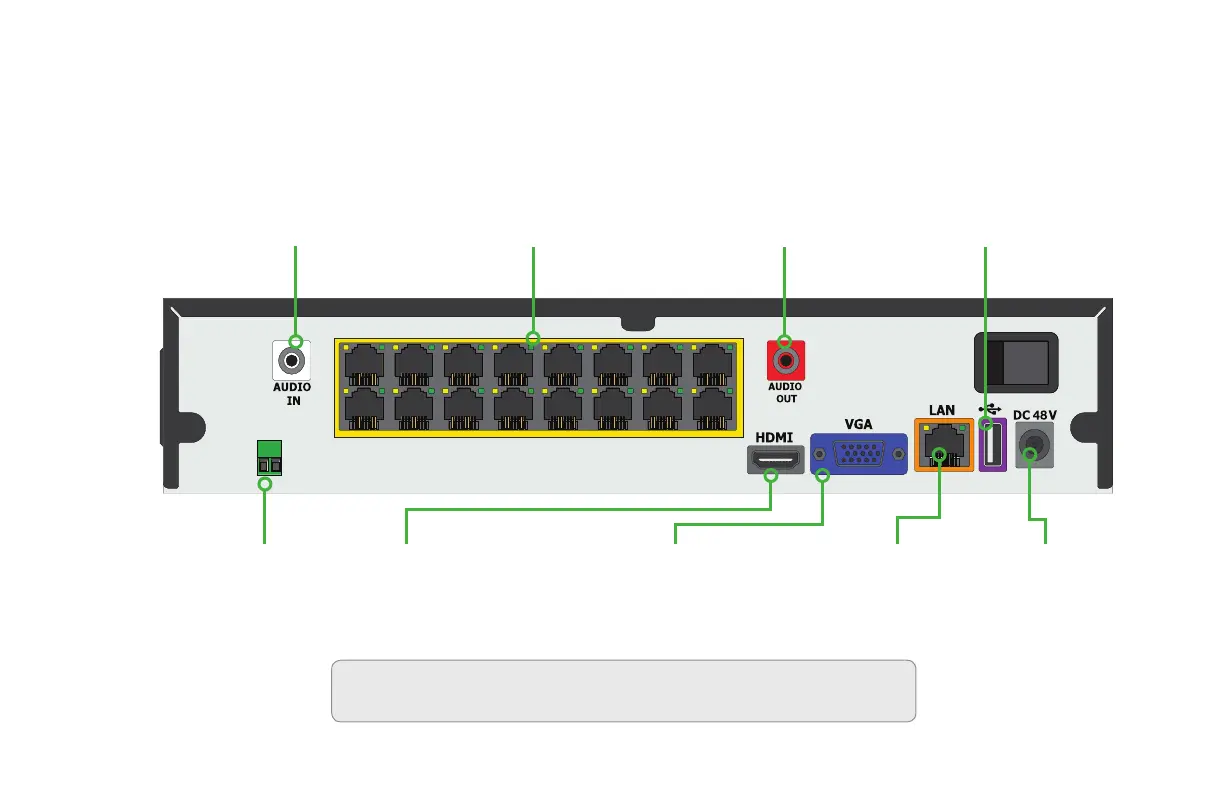

Understanding Your NVR: Rear Panel
Audio In: Single channel RCA
audio input from microphone
POE Ports: Powers
High Definition cameras
and receives their video
VGA: Video output for
connecting to monitor
19" or larger
LAN: Network
(Ethernet) port
DC +48V:
Power input
Audio Output: RCA connection
for audio output – connect to an
amplified speaker
HDMI: HDMI video output
USB: Connect
USB mouse
RS-485 (PTZ):
For Legacy Pan-Tilt
base control
NOTE: Your NVR model may differ from that shown in this illustration. Not all features may be present. Colors are for reference only.
ATTENTION: Some models may have two power supplies. Each will only fit
into its proper port. Do not force or modify plugs or ports.

Q-See QT SERIES Specifications

General

Series	QT Series
Video Compression	H.264
Remote Viewing	Yes
HDMI Output	Yes
VGA Output	Yes
Motion Detection	Yes
Channels	4, 8, 16
Recording Resolution	1080p, 720p
Hard Drive Capacity	Up to 6TB
Mobile App Support	Yes
Network Connectivity	Ethernet
