QNAP TL-R1200C-RP User Manual

Connecting the JBOD Enclosure to a NAS
Important
• QTS supports a maximum of two JBOD enclosures.
• QNAP JBOD enclosures do not support USB 2.0 connections.
• Depending on the number of installed drives, the JBOD enclosure may consume more
USB endpoints than the host device can support on a single USB connection.
Therefore, the host device may not recognize all drives installed in the JBOD
enclosure.
You can resolve this issue by installing a USB expansion card in the host device.
Compatible USB expansion cards can be purchased from QNAP or an authorized
reseller.
Warning
• Do not connect the JBOD enclosure to a host device using a USB hub.
• Boot failures may occur when disconnecting and reconnecting the external device from
the host device repeatedly within a short time. QNAP recommends waiting 10 seconds
before reconnecting the external device to the host device.

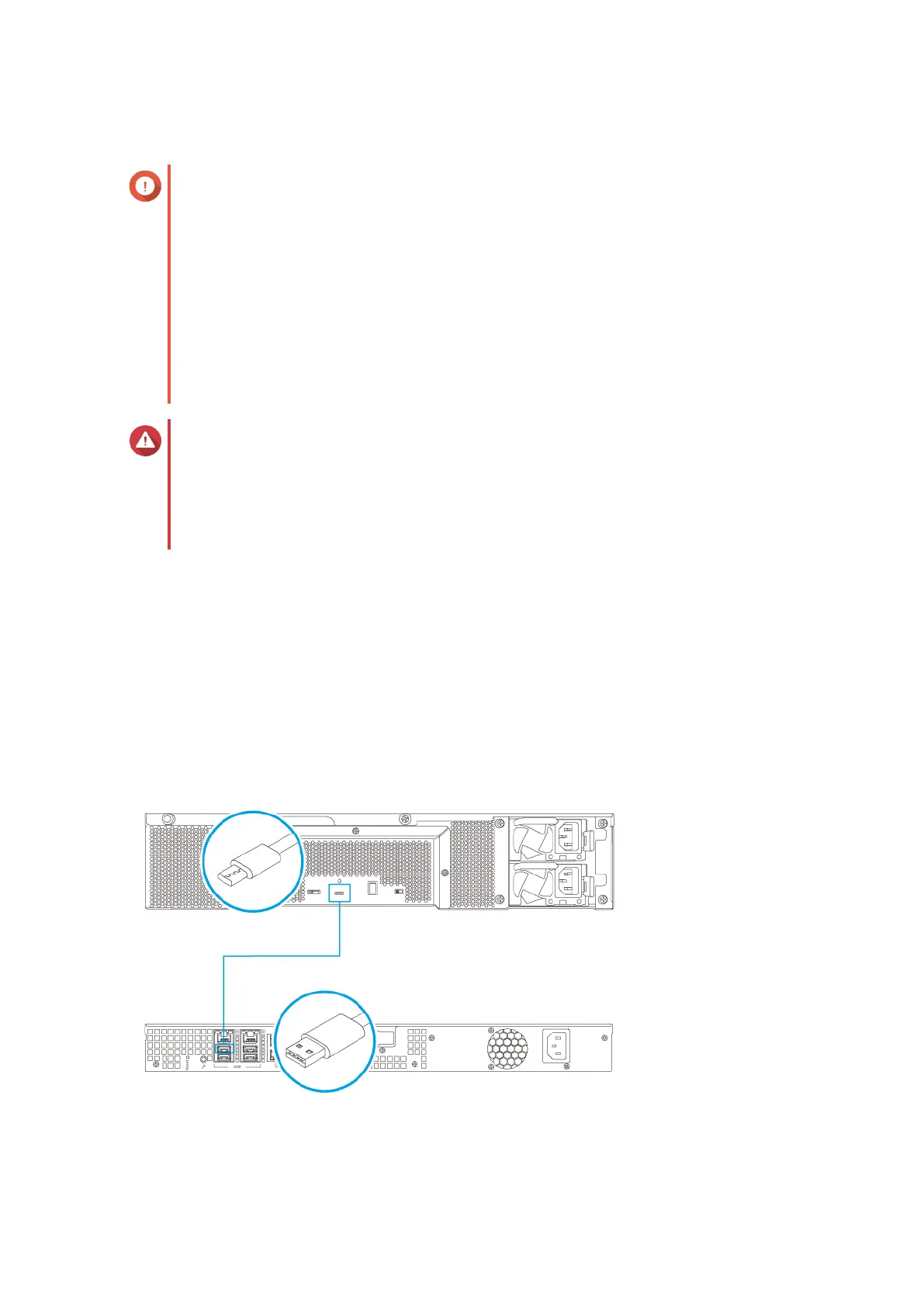

1. Power off the NAS.
2. Power off the JBOD enclosure.
3. Connect the JBOD enclosure to the NAS.
a. Connect a USB cable to the USB 3.1 Gen 2 Type-C port on the JBOD enclosure.
b. Connect the USB cable to a USB Type-A port on a NAS.
c. Optional: Connect a second JBOD enclosure to the NAS.
4. Power on the JBOD enclosure.
TL-R1200C-RP User Guide
Hardware Installation 15

QNAP TL-R1200C-RP Specifications

General

Storage drive size	2.5/3.5 \
Total installed storage capacity	0 TB
Number of storage drives supported	12
Supported storage drive interfaces	Serial ATA III
USB version	3.2 Gen 2 (3.1 Gen 2)
USB connectivity	Yes
USB connector type	USB Type-C
USB ports quantity	1
USB connector gender	Female
Fan diameter	70 mm
Product type	HDD/SSD enclosure
Product color	Black, Grey
Rack capacity	2U
LED indicators	Fan fail, HDD, Link, Status
Number of fans	2 fan(s)
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Power source type	AC
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
Noise level	33.4 dB
Data transfer rate	6 Gbit/s
Cables included	AC, USB Type-C to USB Type-A
Harmonized System (HS) code	84733080

Weight and Dimensions

Depth	562.5 mm
Width	482 mm
Height	88.6 mm
Weight	11030 g
Package weight	14290 g
