- 10 -

Chapter 2 Install TS-109

2.1 Install Hard Disk

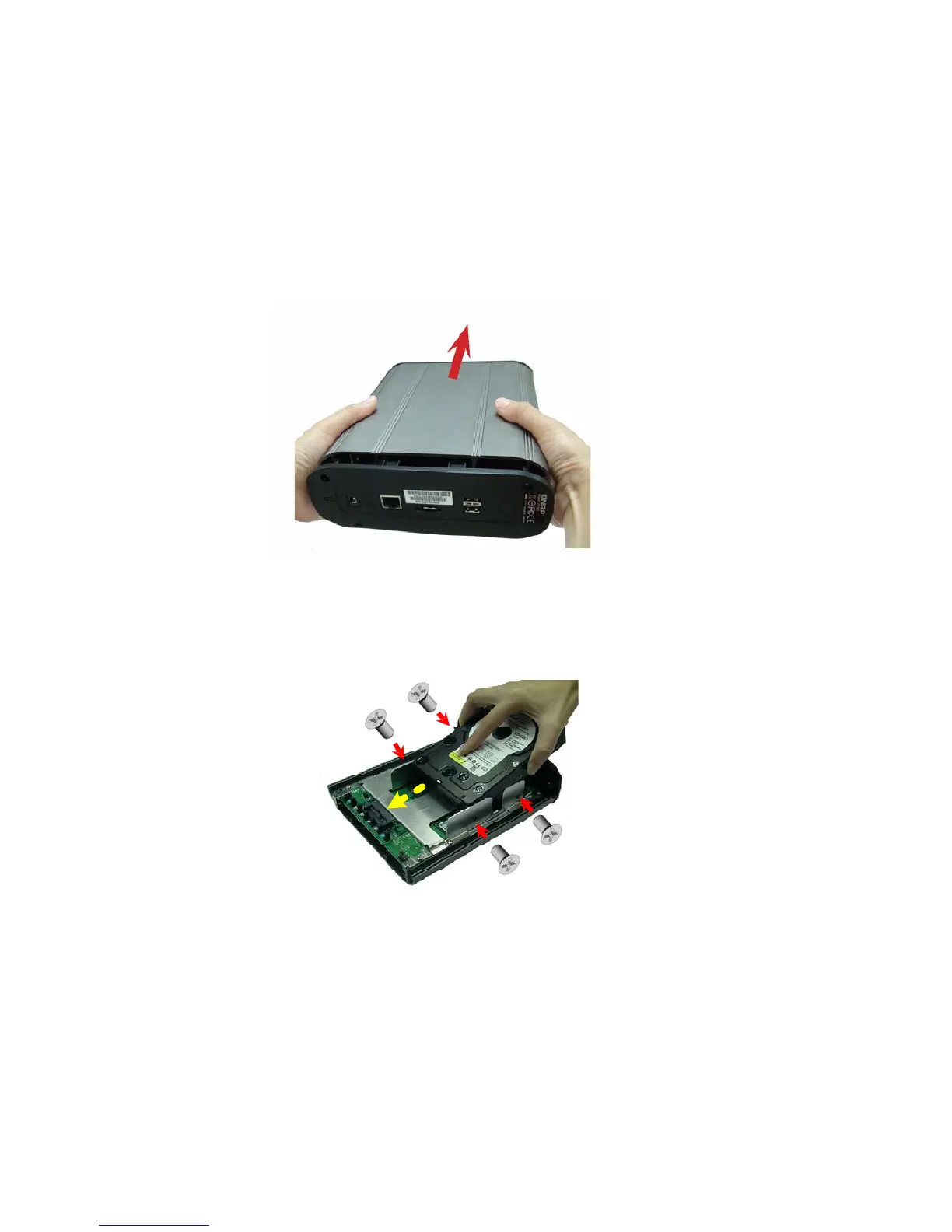

1. Pull out the front case of TS-109 as shown below:

2. Install a hard disk in TS-109 drive plate. Make sure the disk holes of the disk

match the holes of drive plate. Lock the disk with the provided flathead

screws.
