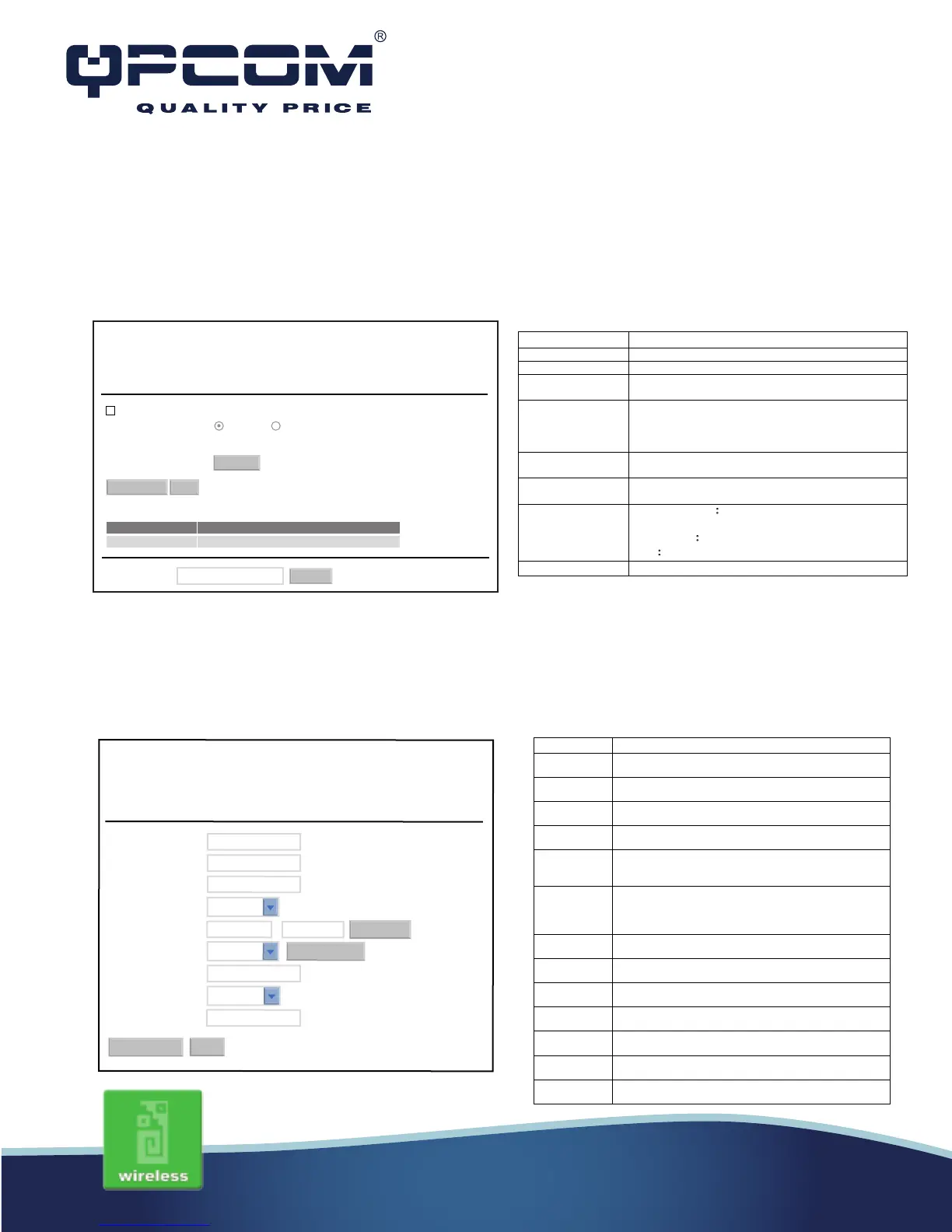

WPS
This page allows you to change the setting for WPS (Wi-Fi Protected Setup). Using this featu-
re could let your wireless client automically syncronize its setting and connect to the Access
Point in a minute without any hassle.
LAN Interface Setup
This page is used to configure the parameters for local area network that connects to the LAN
ports of your WLAN Broadband Router. Here you may change the setting for IP address,
subnet mask, DHCP, etc.
Apply Changes
Reset
Start PBC
Start PIN
Current Key Info:
Authentication Encryption Key
Open None N/A
This page alows you to change the setting for WPS (Wi-Fi Protectd Setup). Using this feature could
let your wireless client automically syncronize is setting and connect to the Access Point in a minute
without any hassle.
Wi-Fi Protected Setup
Diseable WPS
WPS Status:
Self-PIN Number:
Push Button Configuration:
18864540
Configured UnConfigured
Client PIN Number:
Item
Description
Disable WPS
Click on to disable the Wi-Fi Protected Setup function.
WPS Status
Show WPS status is Configured or UnConfigured.
Self-PIN Number Fill in the PIN Number of AP to register the wireless
distribution system access capability.
Push Button
Configuration
The Start PBC button provides tool to scan the
wireless network. If any Access Point or IBSS is
found, you could connect it automatically when client
join PBC mode.
Apply Changes Click the Apply Changes button to complete the new
configuration setting.
Reset
Click the Reset button to abort change and recover
the previous configuration setting.
Current Key Info
Authentication
It shows the Authentication is
opened or closed.
Encryption
It shows the Encryption mode.
Key
It shows the Encryption key.
Client PIN Number Fill in the
Client PIN Number
from your Client sites.
This page is used to configure the parameters for local area network whitch connects to
the LAN port of your Access Point. Here you may change the setting for IP Address,
subnet mask, DHCP, etc,.
IP Address:
Subnet Mask:
Default Getaway:
DHCP:
DHCP Client Range:
Static DHCP:
Domain Name:
802.1Spanning Tree:
Clone MAC Address:
LAN Interface Setup
Diseabled
Enabled
Server
Apply Changes
Set Static DHCP
Show Client
Reset
00000000000
192.168.1.100 - 192.168.1.200
0.0.0.0
255.255.255.0
192.168.1.254
Item
Description
IP Address
Fill in the IP address of LAN interfaces of this WLAN
Access Point.
Subnet Mask Fill in the subnet mask of LAN interfaces of this WLAN
Access Point.
Default
Gateway
Fill in the default gateway for LAN interfaces outgoing
data packets.
DHCP Click to select Disabled, Client or Server in different
operation mode of wireless Access Point.
DHCP Client
Range
Fill in the start IP address and end IP address to allocate
a range of IP addresses; client with DHCP function set
will be assigned an IP address from the range.
Show Client Click to open the Active DHCP Client Table window that
shows the active clients with their assigned IP address,
MAC address and time expired information. [Server
mode only]
Static DHCP Select enable or disable the Static DHCP function from
pull-down menu. [Server mode only]
Set Static
DHCP
Manual setup Static DHCP IP address for specific MAC
address. [Server mode only]
Domain Name Assign Domain Name and dispatch to DHCP clients. It is
optional field.
802.1d
Spanning Tree
Select enable or disable the IEEE 802.1d Spanning Tree
function from pull-down menu.
Clone MAC
Address
Fill in the MAC address that is the MAC address to be
cloned
Apply
Changes
Click the Apply Changes button to complete the new
configuration setting.
Reset
Click the Reset button to abort change and recover the
previous configuration setting.
