qpcom QP-WR154N User Manual

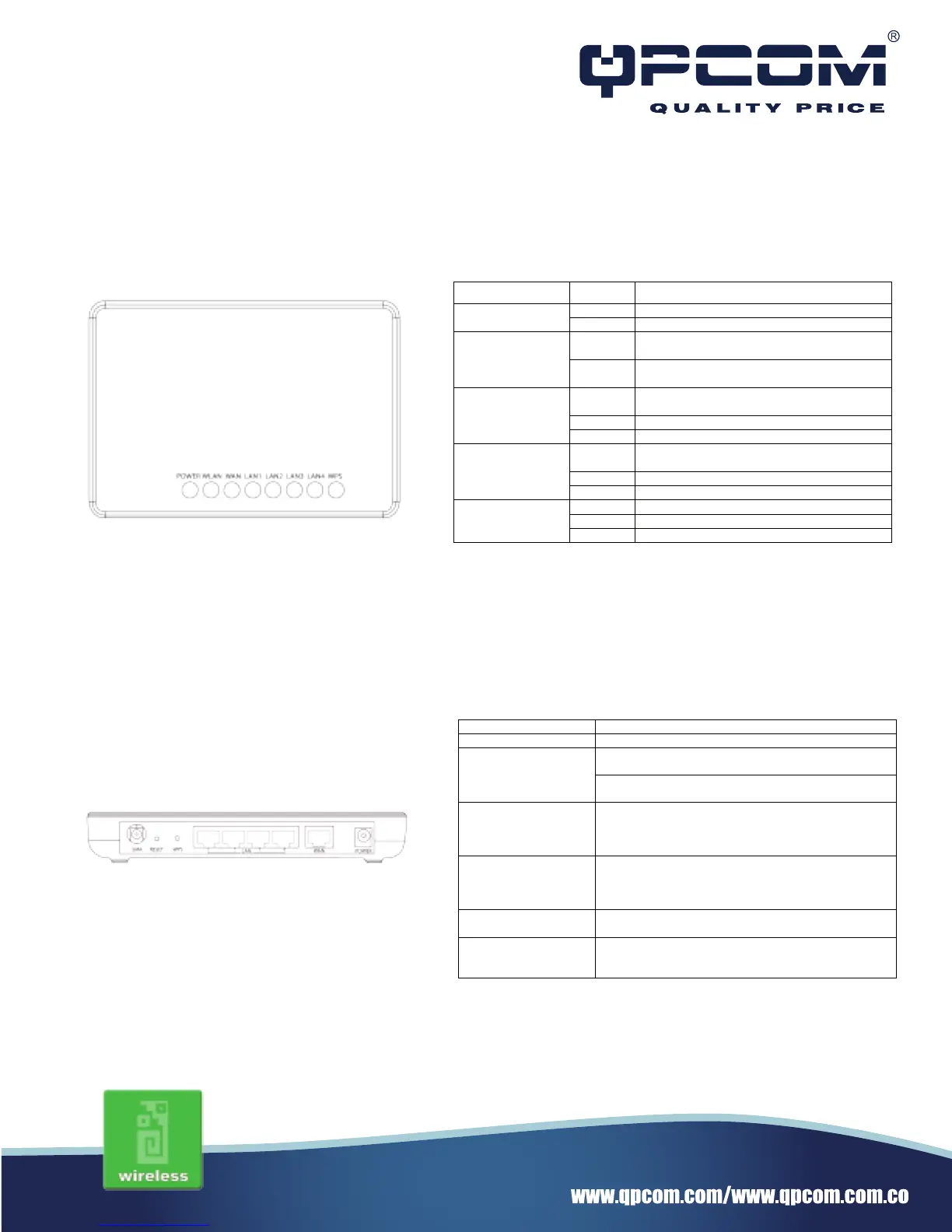

Front Panel description
Rear Panel description
LED Indicator
State
Description
PWR LED
on
The WLAN Broadband Router is powered on.
off
The WLAN Broadband Router is powered off.
WLAN LED
Flashing
Data is transmitting or receiving on the
antenna.
off
No data is transmitting or receiving on the
antenna.
LAN LED ACT
Flashing
Data is transmitting or receiving on the LAN
interface.
on
Port linked.
off
No link.
WAN LED ACT
Flashing
Data is transmitting or receiving on the WAN
interface.
on
Port linked.
off
No link.
WPS LED ACT
Flashing
1 sec flash light / 1 sec light dark
on
Press Button
off
Default No link
Interfaces
Description
Antenna (Fixed / SMA)
The Wireless LAN Antenna.
Power The power jack allows an external DC power supply
connection.
The external DC adaptor provide adaptive power
requirement to the WLAN Broadband Router.
LAN The RJ-45 sockets allow LAN connection through
Category 5 cables. Support auto-sensing on 10/100M
speed and half/ full duplex; comply with IEEE 802.3/
802.3u respectively.
WAN
The RJ-45 socket allows WAN connection through a
Category 5 cable. Support auto-sensing on 10/100M
speed and half/ full duplex; comply with IEEE 802.3/
802.3u respectively.
Reset
Push continually the reset button 5 ~ 10 seconds to
reset the configuration parameters to factory defaults.
WPS Push the WPS button implementation to reduce the
network configuration steps,and also easy to
implement network security.
