Installation of the High Capacity Vertical Stacker (HCVS-1)
The High Capacity Vertical Stacker can be used to stack filled envelopes. The vertical
stacker can store up to 325 filled envelopes. In case you have a High Capacity Vertical
Stacker, install it as follows on your system:
Move the stacker as indicated by the arrow.1.
2. Lift the stacker with the suspension hooks over the two rods (upper and lower) and
lower it.
3. Connect the connector.

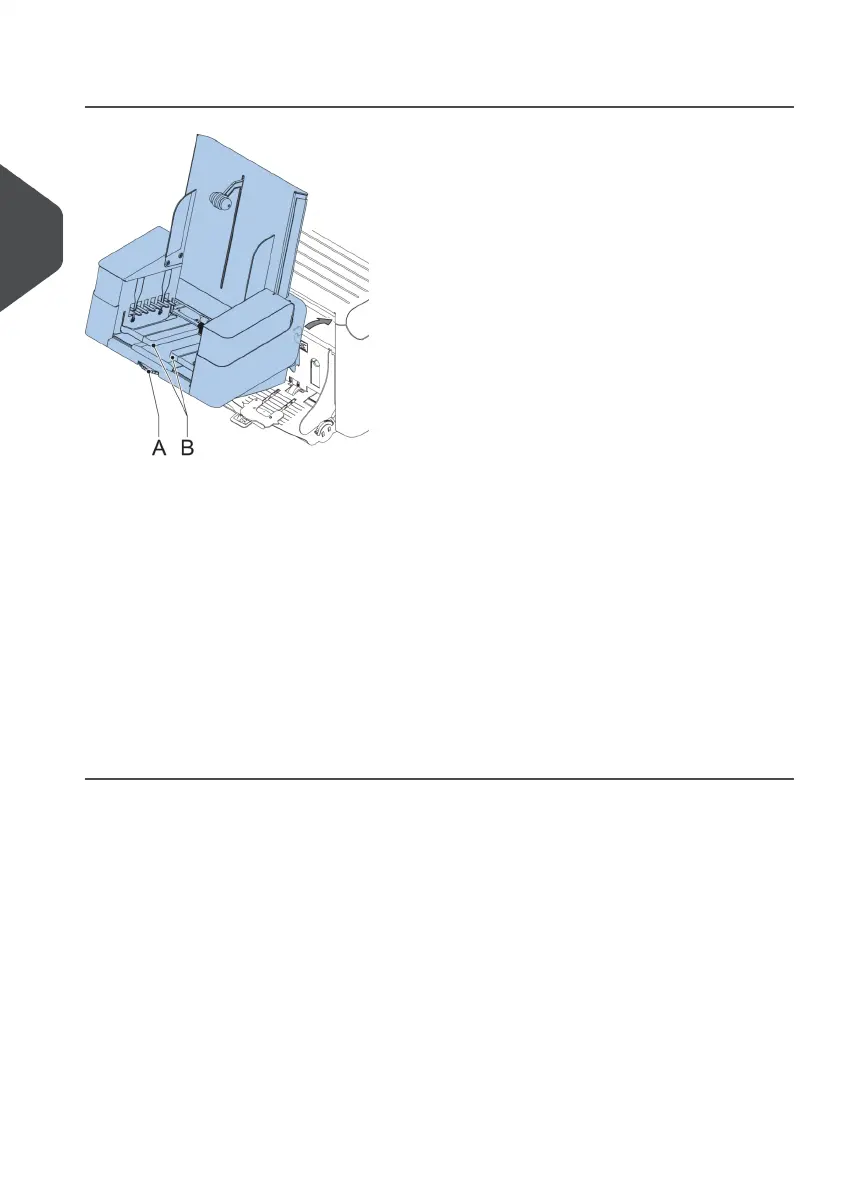

4. Adjust the side guides with wheel A until a margin of 3 to 5 mm is left between the
envelopes and the side guides.
5. For small envelopes it can be necessary to remove the extensions B from the envelope
support.
22
