High Capacity Document Feeder

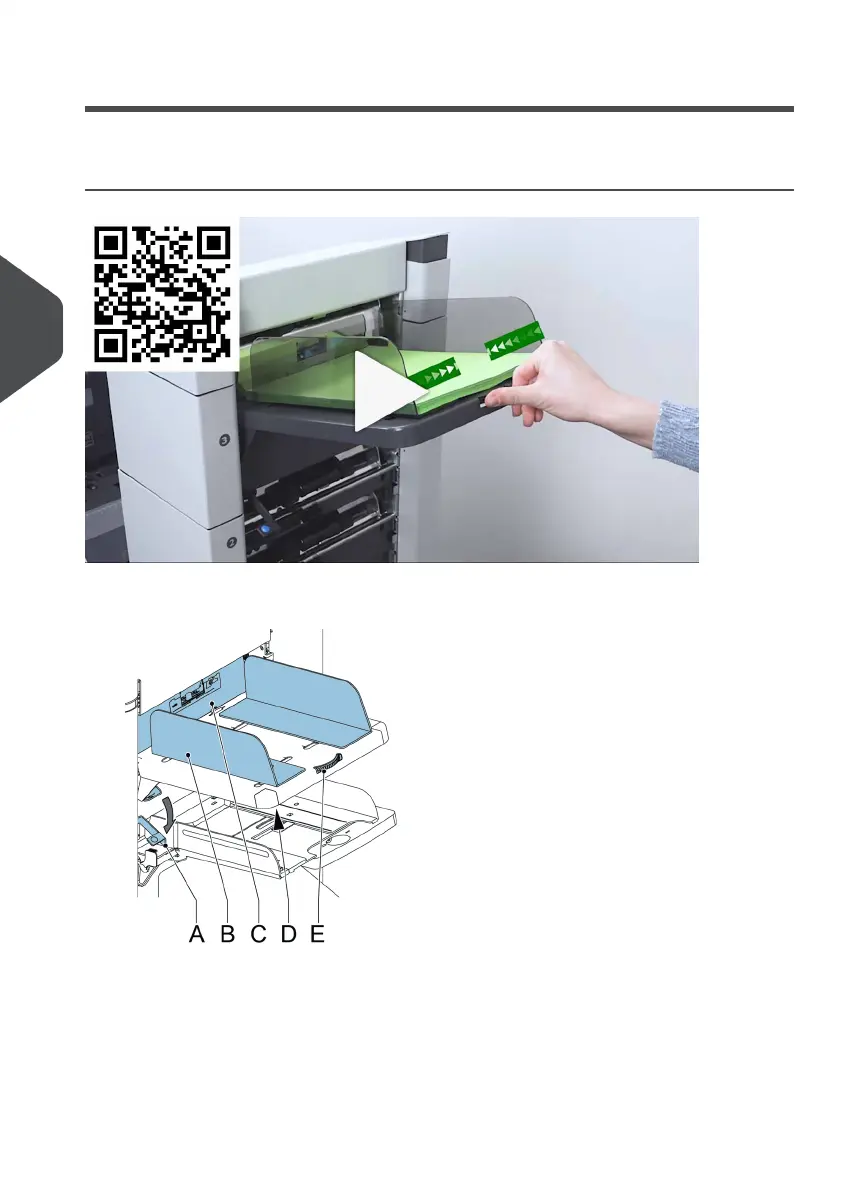

Adjust the Side Guides
To adjust the side guides B:
1. Loosen knob D, which is located underneath the feeder tray, half a turn.
2. Put a small stack of documents between the side guides.
3. Rotate wheel E.
The space between the side guides and the documents should be such that the
documents have just enough play to move freely.
64
| Page 64 | Nov-25-2020 04:16 | Loading the System
