Real Time – User: SPD Infoframes

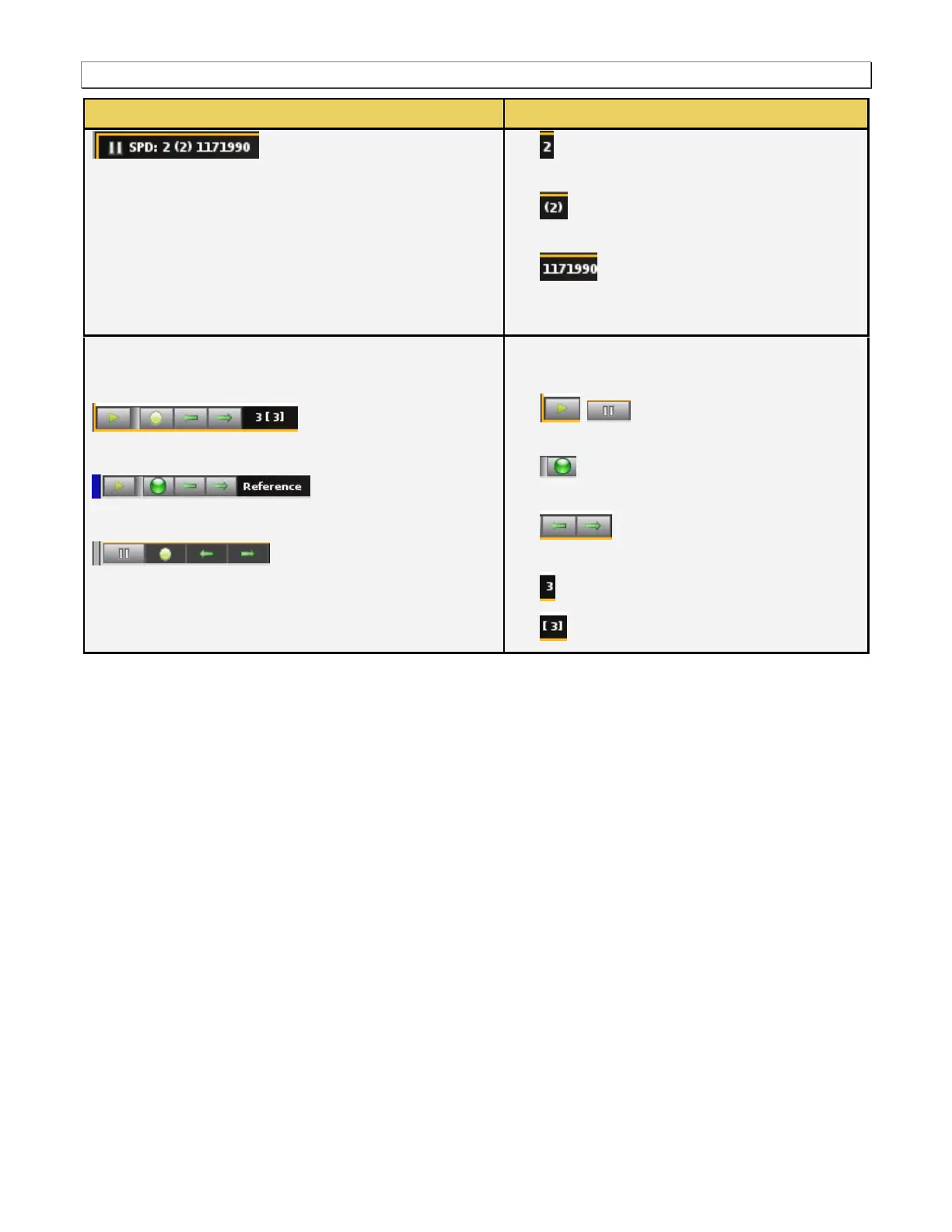

Information / Function
Resume (active) mode
 The number of changes defined since you
set the reference frame.
 The number of distinct data views in
parentheses.
 The total number of frames captured
since the panel was opened or since the last
clear.
Lower Control Panel
Pause mode
Pause mode after going to the reference frame
Resume (active) mode
The lower control panel enables you to control and
view the following:
 Set the pause/resume (active)
status.
 Go to the Reference Frame (must be in
paused mode).
 Navigate left or right through the
distinct data views (must be in paused mode).
 The data view currently displayed.
 The number of distinct data views.
