device. The pass-through mode enables you to
monitor the HDMI traffic passively between an
HDMI source and an HDMI sink device.
o Encrypted Link Analyzer - In the Encrypted Link
Analyzer configuration the 980 HDMI Rx port is
connected to the source device under test and
the 980 HDMI Tx port is connected to a sink
device. The Encrypted Link Analyzer
configuration enables you to monitor and analyze
HDCP encrypted protocol data transmitted
between an HDMI source device and sink device.
Note that you will not be able to view the HDCP
transactions between the source and the sink.
o Checking the TX-RX HPD checkbox will
replicate the hot plug signal from the TX side (an
attached sink device) on the RX side (like a hot
plug repeater).
Rx - This field shows the status related to HDCP on
the 980 Rx port. A + sign and green text indicates
that the HDCP is enabled on the 980 Rx port.
Tx - This field shows the status related to HDCP on
the 980 Tx port. A + sign and green text indicates that
HDCP is active on the 980 Tx port.
Ri - This field shows the current Ri count since
collection began.
The upper status bar shows the following information
from left to right:
HDCP Enabled – In the Enabled mode, the 980 sink
emulator (Rx port) will respond to HDCP
authentication from a source device under test.
When disabled the 980 sink emulator will not respond
to an HDCP authentication request.
BSTATUS – This check box enables you to toggle
between the 980 sink emulator responding to a
source HDCP authentication by indicating in its
BSTATUS register that it is or is in HDMI mode or
DVI mode.

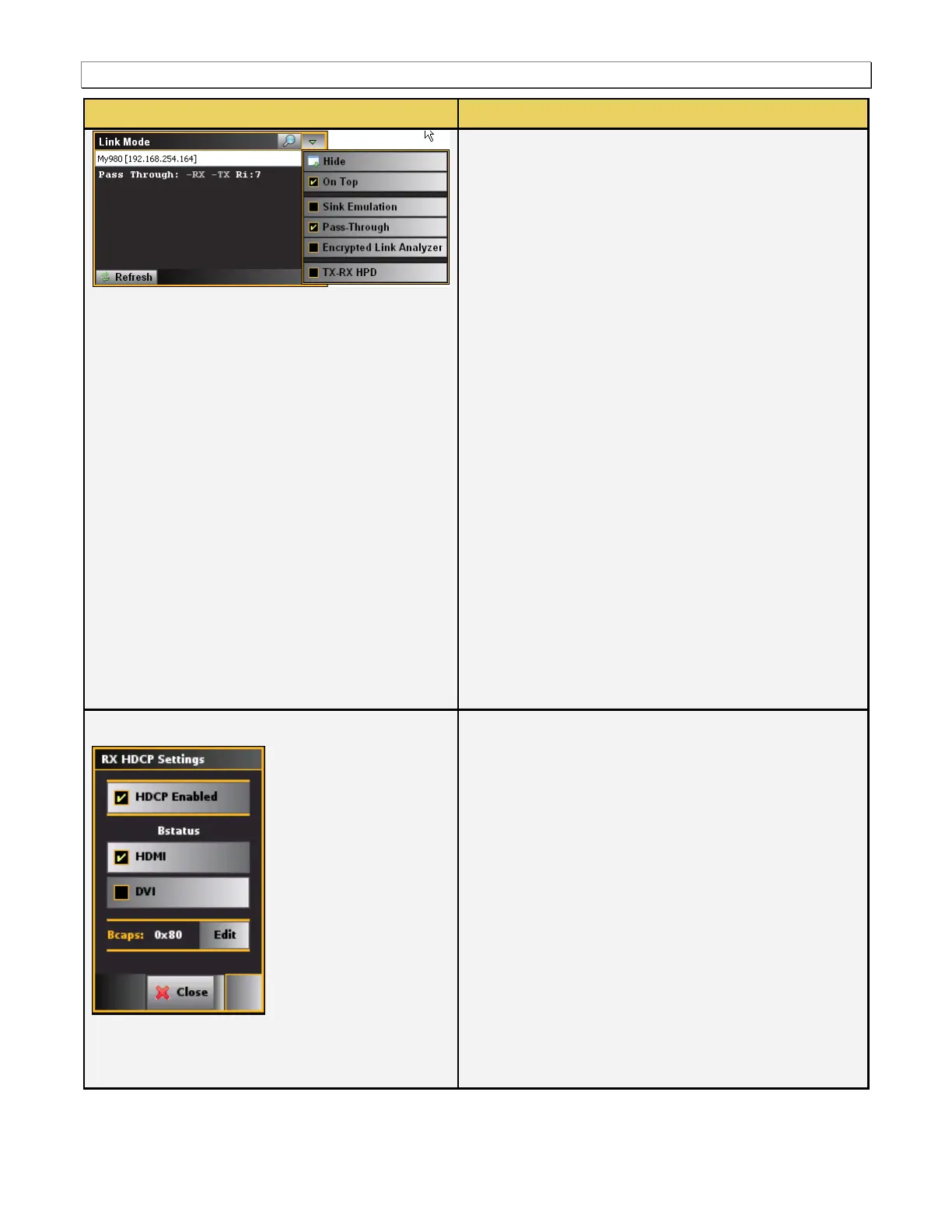

Set Bcaps – This check box opens up a dialog box
enabling you to configure the bits of the Bcaps
register. The dialog box is shown as well. You can
set the bits by clicking on that bit. Clicking on any one
