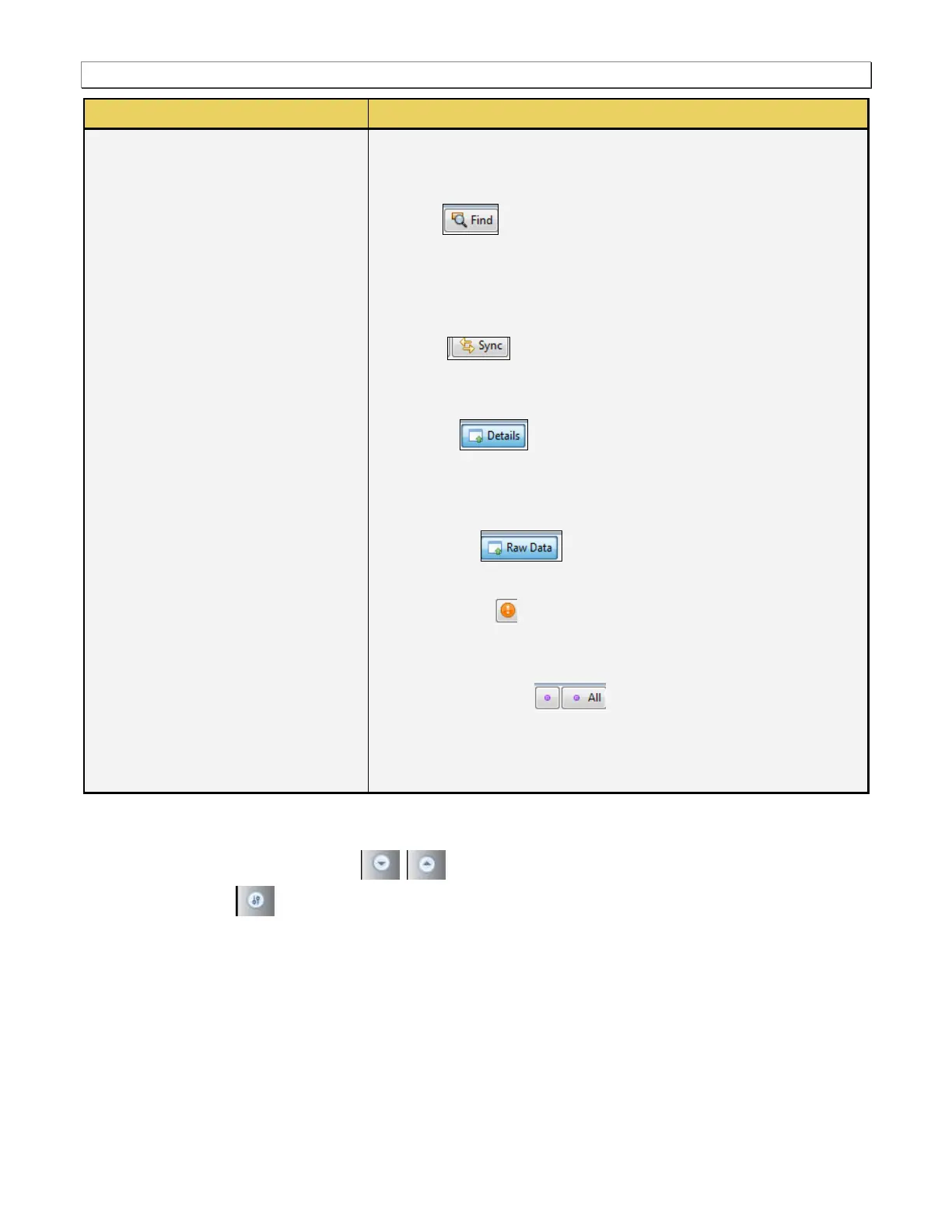

Data Decode Status Icons
Function
dialog box appears enable you do select or deselect data types
individually or a page at a time. This dialog box is described further
below.
 Find – The Find activation button enables you to locate
captured data by type. When you click on the Find button a dialog
box appears enable you do specify a data type to search on.
individually or a page at a time. This dialog box is described further
below.
 Sync – The Sync activation button enables you to
synchronize the Event Plot and the Timing Analysis panels to the
data in the Data Decode panel.
 Details – The Details activation button enables you to
toggle the view of the Details subpanel. The Details subpanel
provides human readable text description of the data of the record
that is highlighted.
 Raw Data – The Raw Data activation button enables
you to toggle the view of the hex data on and off.
 Marker icon – The Marker icon enables you to flag certain
important records for easy identification. You can also flag a
record by double clicking on the record.
 Clear Marker icon – The Clear Marker and Clear All
icons enable you to clear the flags on specific records or all
records. You can also clear the flag on a record by double clicking
on the record.
There is a vertical scroll bar available on the right side of the Data Decode panel. This enables you to browse
through the Data Decode records. The buttons enable you to advance downward or upward one
record at a time. The button is a scroll button that you can slide up or down.
