5G Module Series
RM500Q-AE&RM502Q-AE Hardware Design
RM500Q-AE&RM502Q-AE_Hardware_Design 40 / 83
Host Module
PCIE_REFCLK_P
PCIE_REFCLK_M
PCIE_RX_P
PCIE_RX_M
PCIE_TX_P
PCIE_TX_M
BB
PCIE_REFCLK_P
PCIE_REFCLK_M
PCIE_RX_P
PCIE_RX_M
PCIE_TX_P
PCIE_TX_M
55
53
49
47
43
41
PCIE_CLKREQ_N
PCIE_RST_N
PCIE_WAKE_N
PCIE_CLKREQ_N
PCIE_RST_N
PCIE_WAKE_N
54
52
50
Note: The voltage level of VCC_IO_HOST depends on the host side due to the open drain in pins
50, 52 and 54.
C6 220 nF
C5 220 nF
C2 220 nF
C1 220 nF
R1
100k
R2
100k
R3
100k
VCC_IO_HOST
R5 0R
R4 0R

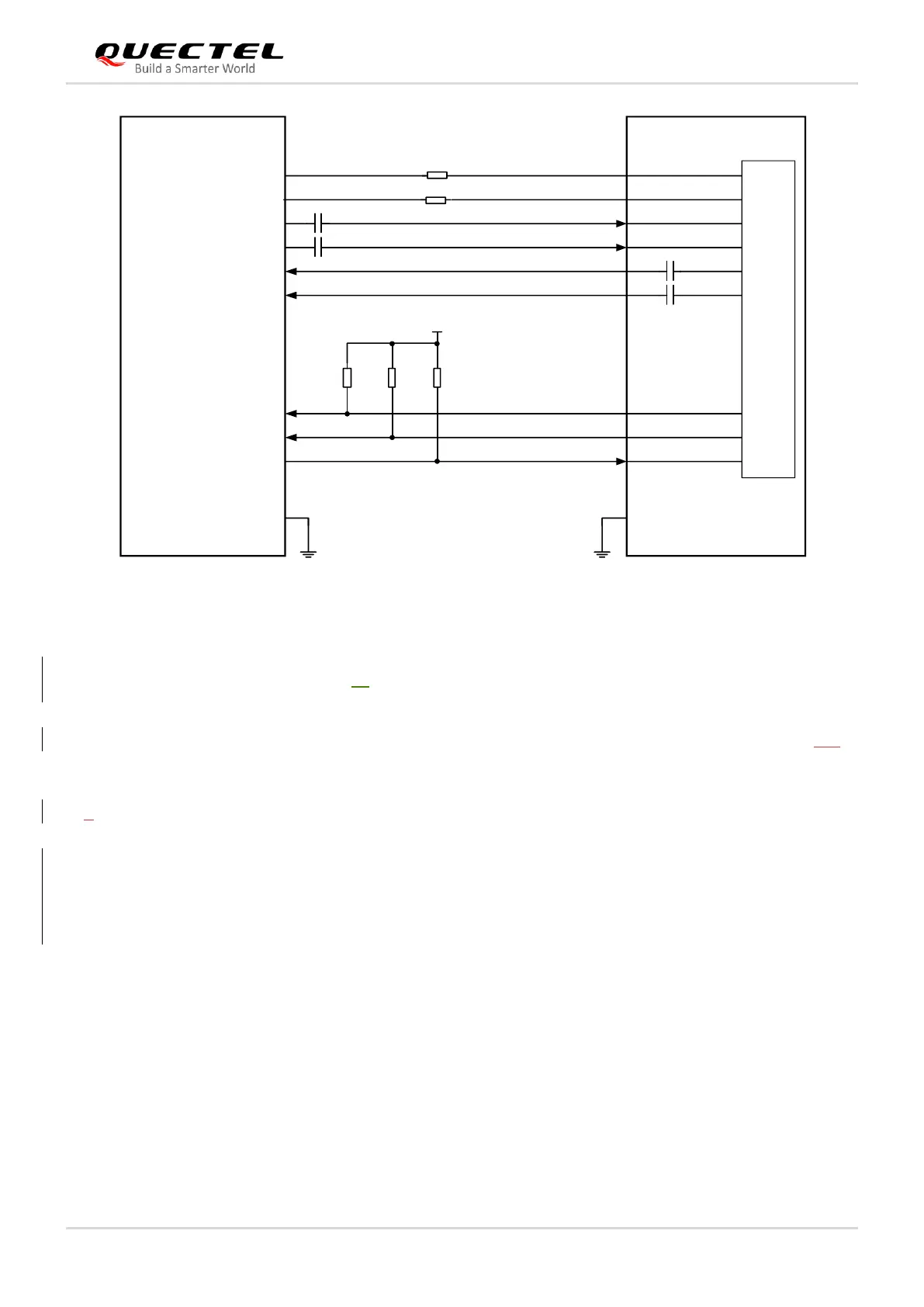

Figure 17: PCIe Interface Reference Circuit
AT+QCFG="pcie/mode" is used to set PCIe RC/EP mode. For more details about the command, see
document [2].
To ensure the signal integrity of PCIe interface, AC coupling capacitors C5 and C6 should be placed close
to the host on PCB. C1 and C2 have been embedded into the module, so do not place these two
capacitors on your schematic and PCB.
