5G Module Series
RM500Q-AE&RM502Q-AE Hardware Design
RM500Q-AE&RM502Q-AE_Hardware_Design 63 / 83

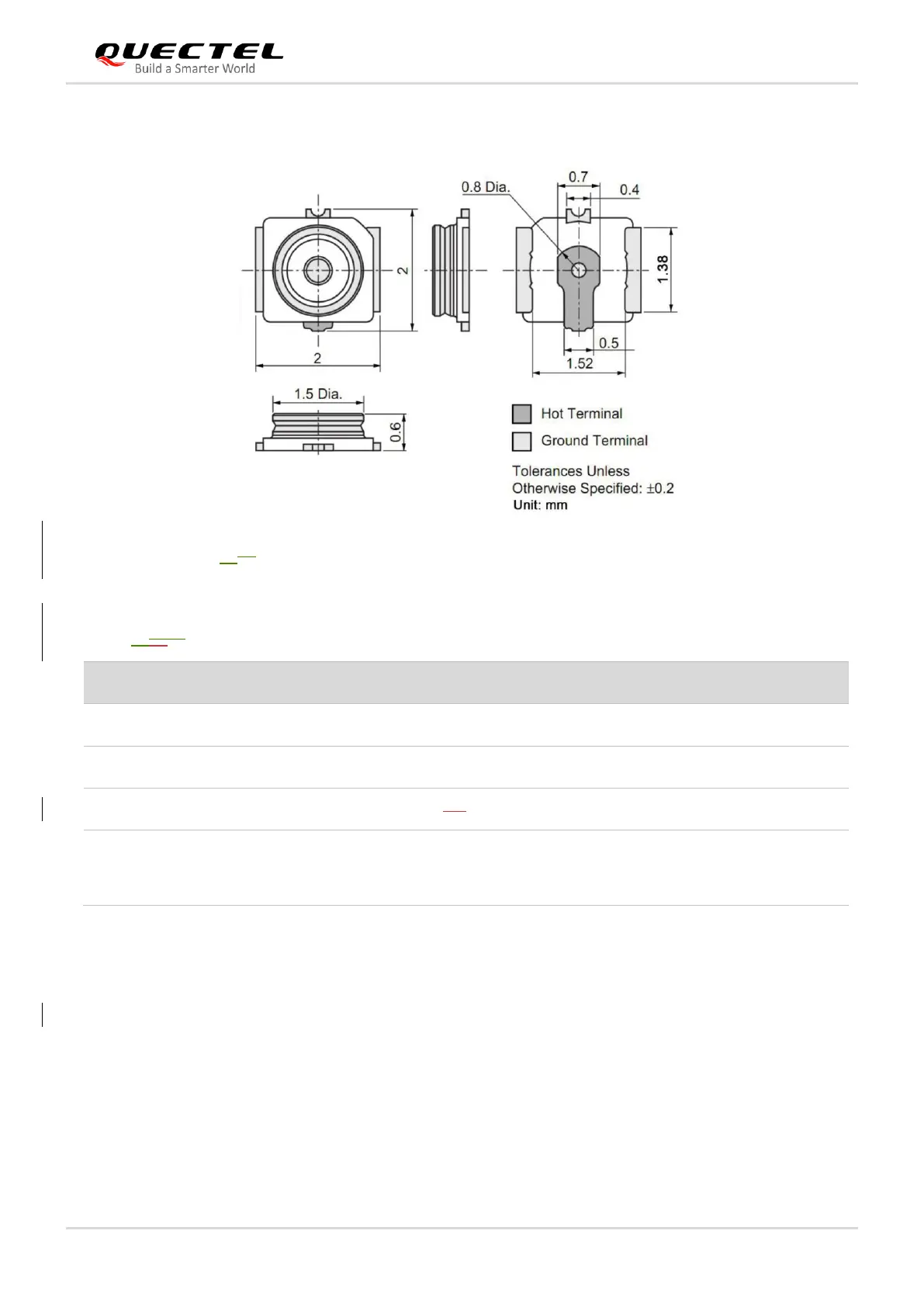

The connector dimensions are illustrated as below:
Figure 3334: RM500Q-AE&RM502Q-AE RF Connector Dimensions (Unit: mm)
Table 303029: Major Specifications of the RF Connector
The receptacle RF connector used in conjunction with the module will accept two types of mating plugs
that will meet a maximum height of 1.2 mm using a Ø0.81 mm coaxial cable or a maximum height of 1.45
mm utilizing a Ø1.13 mm coaxial cable.
The following figure shows the specifications of mating plugs using Ø0.81 mm coaxial cables.
