Quickie QM710 - Controller Access

Jive Up 51
Rev.2.0
Fig. 14.19
Fig. 14.21
Fig. 14.22
Fig. 14.23
Fig. 14.20
Fig.14.25
Fig.14.24

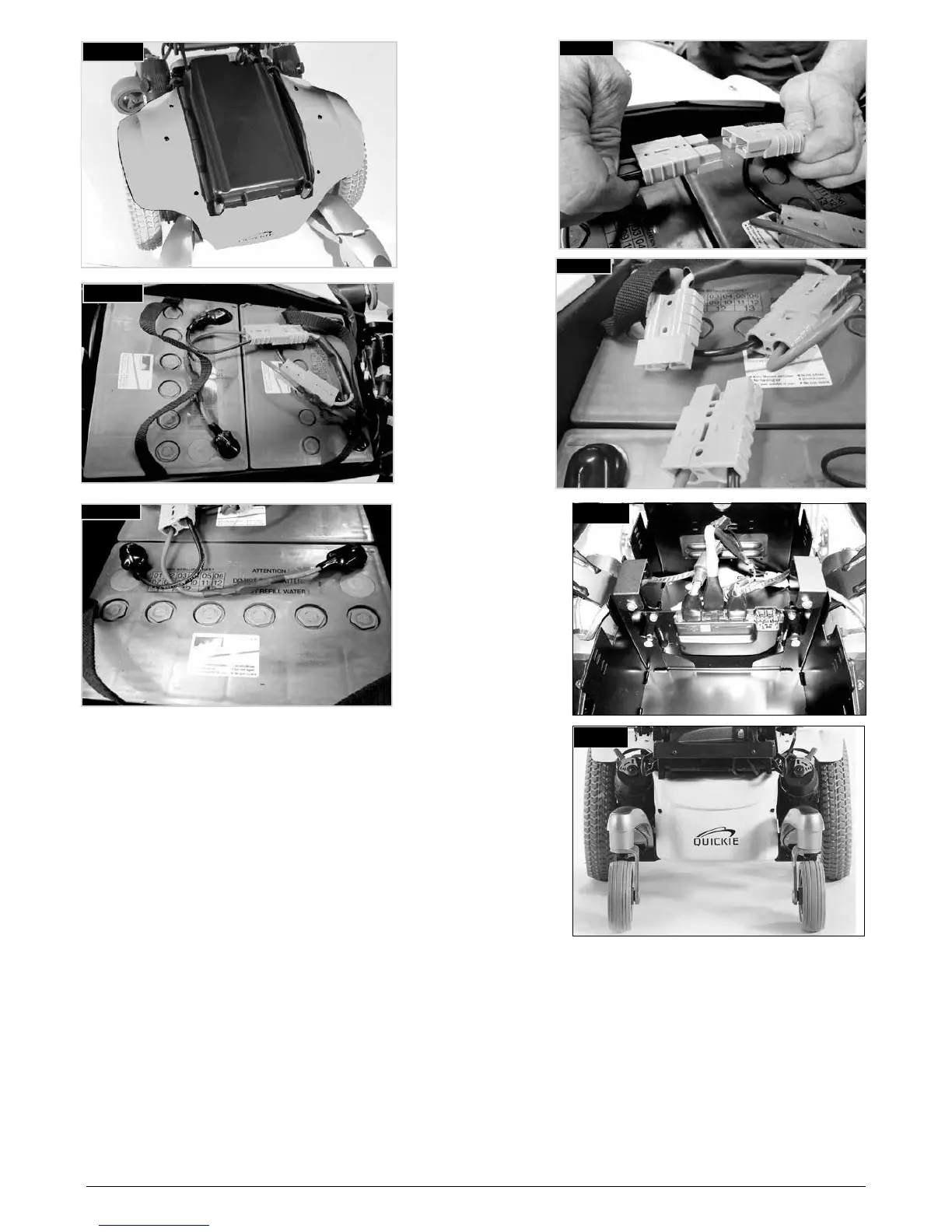

14.8 Controller access
For the Jive Up / QM-710 Stand Up please follow the
“battery access instruction in section 12. This also
gives access to the Motor Control Module (Fig. 14.24)
on Jive F.
To access the controller on the Jive Uptake the rear
shroud on the base between the rear castor wheels off.
(Fig. 14.25).
For further information please contact your Sunrise
M
edical authorised dealer.
