Quickie QM710 User Manual

54 J
ive Up / QM-710 Stand Up
Rev.2.0

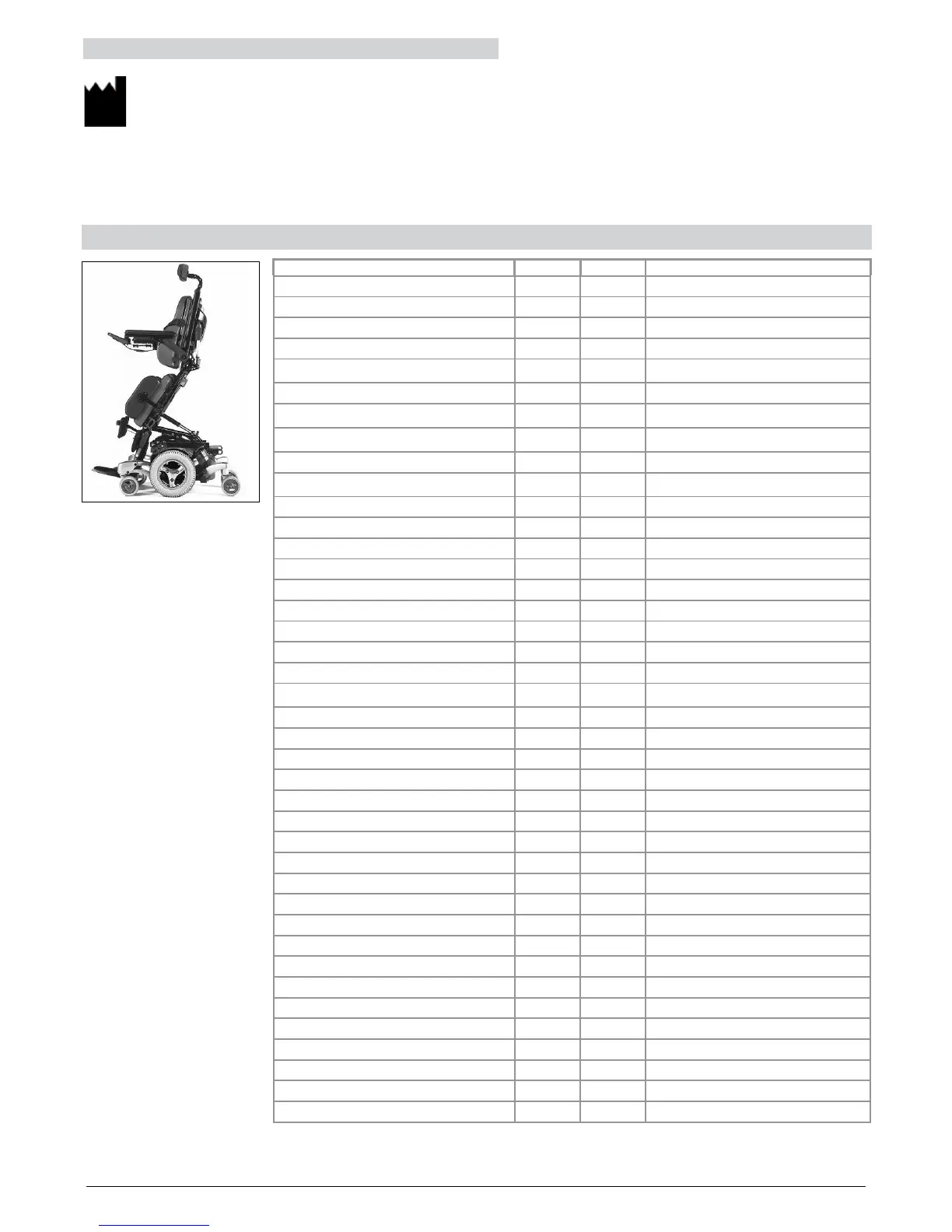

15.0 Specification sheets (EN 12184 & ISO 7176-15)
Sunrise Medical GmbH & Co. KG
Kahlbachring 2-4
69254 Malsch/Heidelberg
Deutschland
Tel.: +49 (0) 7253/980-0
Fax: +49 (0) 7253/980-222
kundenservice@sunrisemedical.de
www.SunriseMedical.de
Maximum occupant mass
(test dummy mass): 120 kg
The wheelchair Quickie
Jive Up conforms to the
following standards:
a) requirements and test
methods for static, impact
and fatigue strengths
(ISO 7176-8)
b) power and control
systems for electric
wheelchairs —
requirements and test
methods (ISO 7176-14)
c) climatic test in
accordance with ISO
7176 -9
d) requirements for
resistance to ignition in
accordance with ISO 7176-
16
15.1 Model: Quickie Jive Up / QM-710 Stand Up
ISO 7176-15 Min Max Comments
Overall length (with legrest)
1070 mm
1130 mm
With 50mm leg extesions fitted
Overall width 622 mm 660 mm Without lights and with lights
Folded length N/A N/A Not a folding chair
Folded height N/A N/A Not a folding chair
Total mass (with batteries) 115 kg 180 kg
Min = Lightest chair with no seat module
tted. Max = Heaviest chair conguration
Mass of the heaviest part 23,5 kg Heaviest removable part
Static stability downhill 8° 25°
0º / 0º recline & max. seat height. Not
with Balle unit
Static stability uphill 19° 25°
9º / 12º recline & max. seat height. Not
with Balle unit
Static stability sideways 14° 21° 0º / 0º recline & max. seat height
Energy consumption (Max Range) 35 km
Depending on terrain, speed and user
weight
Dynamic stability uphill 10°
Obstacle climbing 100 mm 100 kg (75 mm at 160 kg)
Maximum speed forward 6 km/h 13 km/h
Minimum braking distance from max speed 3.1m Dependant on programming
Seat plane angle 0° 22°
Effective seat depth 400 mm 520mm
Effective seat width 400 mm 500 mm
Seat surface height at front edge 460 mm 480 mm With a 0° seat angle
Backrest angle 0° 85° Powered
Backrest height 560mm 700mm
Depends on option chosen and length of
back posts
Footrest to seat distance 400 mm 500 mm
Leg to seat surface angle 5° 90°
Armrest to seat distance 210mm 300mm Using Standard Cushion
Front location of armrest structure 260mm 560mm
Handrim diameter N/A N/A Not a manual chair
Horizontal location of axle N/A N/A Not a manual chair
Minimum turning radius 560 mm 630 mm
Mass of the test dummy 120kg
EN 12184 MIN MAX Comments
Maximum kerb height 100mm
Ground clearance 90 mm
Turning space 1100 mm
Reversing width 1000 mm
Speed control operation force 1,5 N
Direction control operation force 1,5 N
Pressure switch range -6,9 kPa +6,9 kPa Relative to atmospheric (-1.0 to +1.0 PSI)
Pressure switches operation force (puff) N/A N/A Programmable
Pressure switches operation force (sip) N/A N/A Programmable
Pressure resolution 0.1
Pressure Barb size (OD) 0,15 Inches
Operating temperature: -25°C to 50°C
Storage temperature: -40°C to 65°C
Moisture resistance: IPX4
No restrictions on humidity and air pressure.
