Quickie QM710 - Removing the Castor Wheels

48 Jive Up / QM-710 Stand Up
Rev.2.0

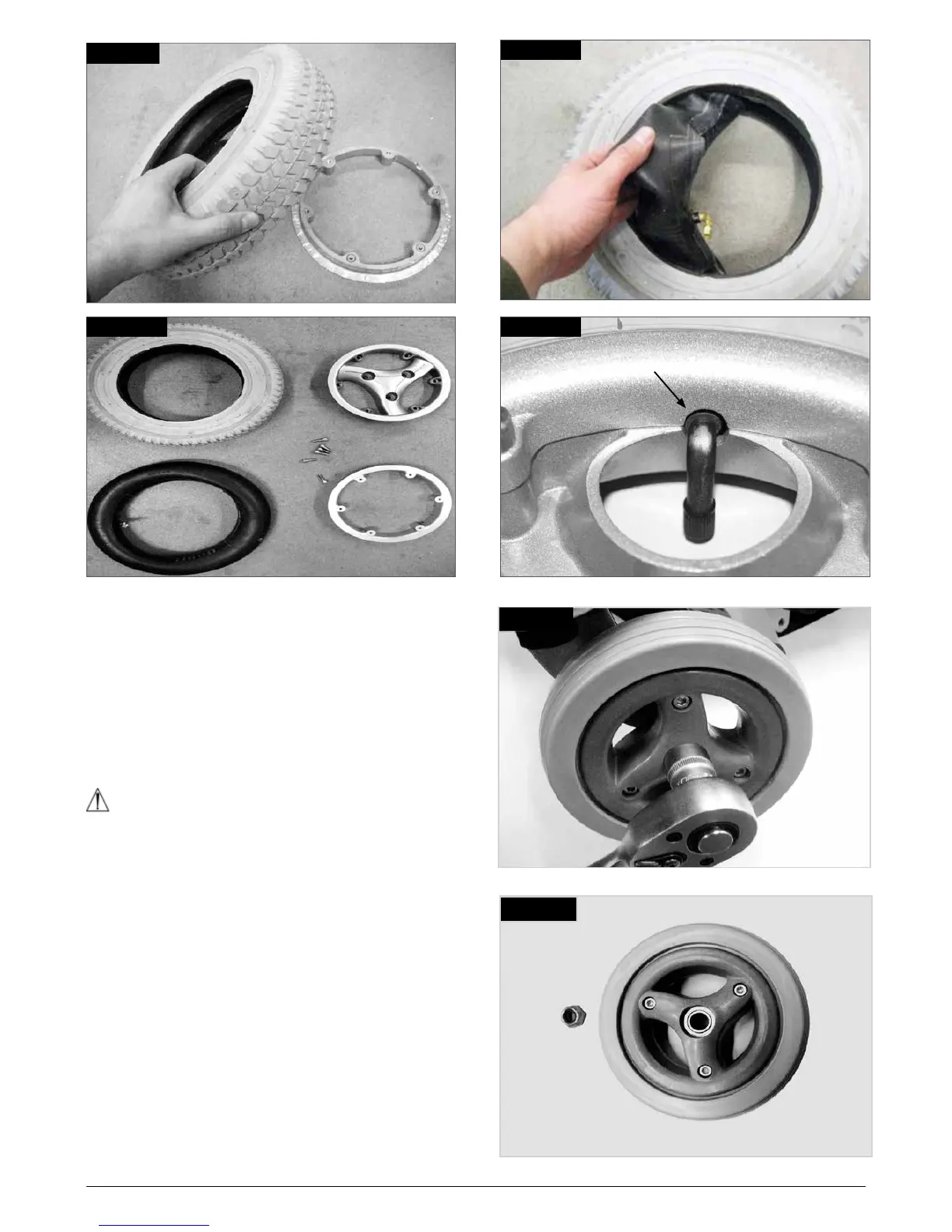

Fig. 14.8
Fig. 14.7
Fig. 14.9
Fig. 14.10
Valve Gap
14.2 Removing the castor wheels.
• Use a 13.0 mm spanner/socket to undo the axle bolt,
(Fi g.14.11).
• Remove the nyloc nut, (Fig.14.12).
Refitting:
When refitting do not try to force the bolt through.
Gently move the wheel back and forth until the bolt slips
through.
WARNING!
Always use a new nyloc nut when refitting.
Fig. 14.11
Fig. 14.12
