Q-Drive Installation Manual Issue 1.5
Page 10 Copyright © 1996 Quin Systems Ltd.
3.5 Mounting Details
The Q-Drive has mounting holes on the rear plate for fixing to an electrical panel inside
a cabinet. The unit is fixed with four M5 bolts using the fixing centres as shown in
Figure 2. below.

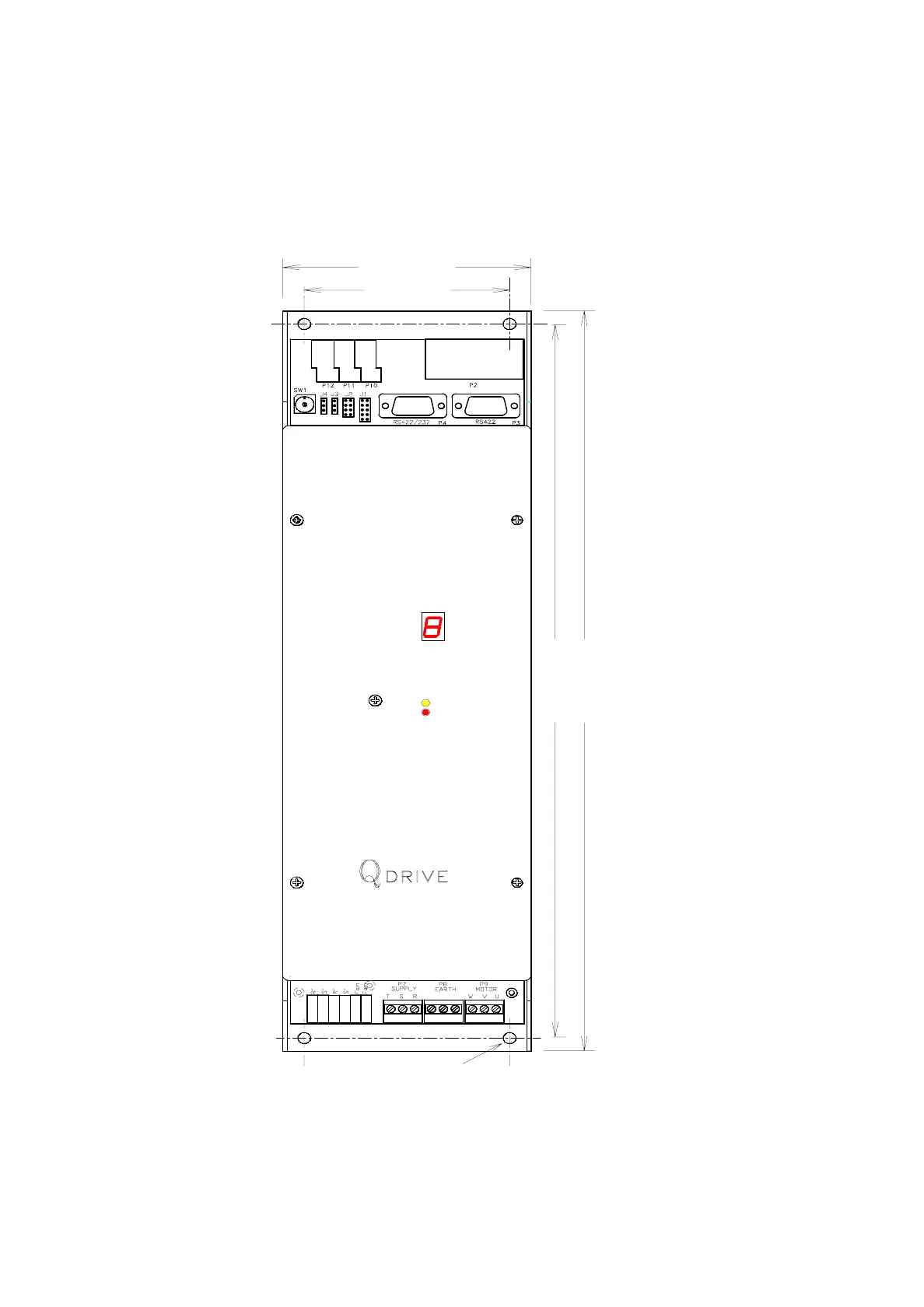

Figure 2. Fixing centres for the Q-Drive.
385.0m
m
400.0m
m
4 off fixing holes
M5 Clearance.
Braking
Over Current
115.5mm
95.5mm
