Quin Q-drive - Figure 5: P2 Lower: Encoder Connector; Table 5: P2 Lower, Encoder Output Connections

Issue 1.5 Q-Drive Installation Manual
Copyright © 1996 Quin Systems Ltd. Page 17

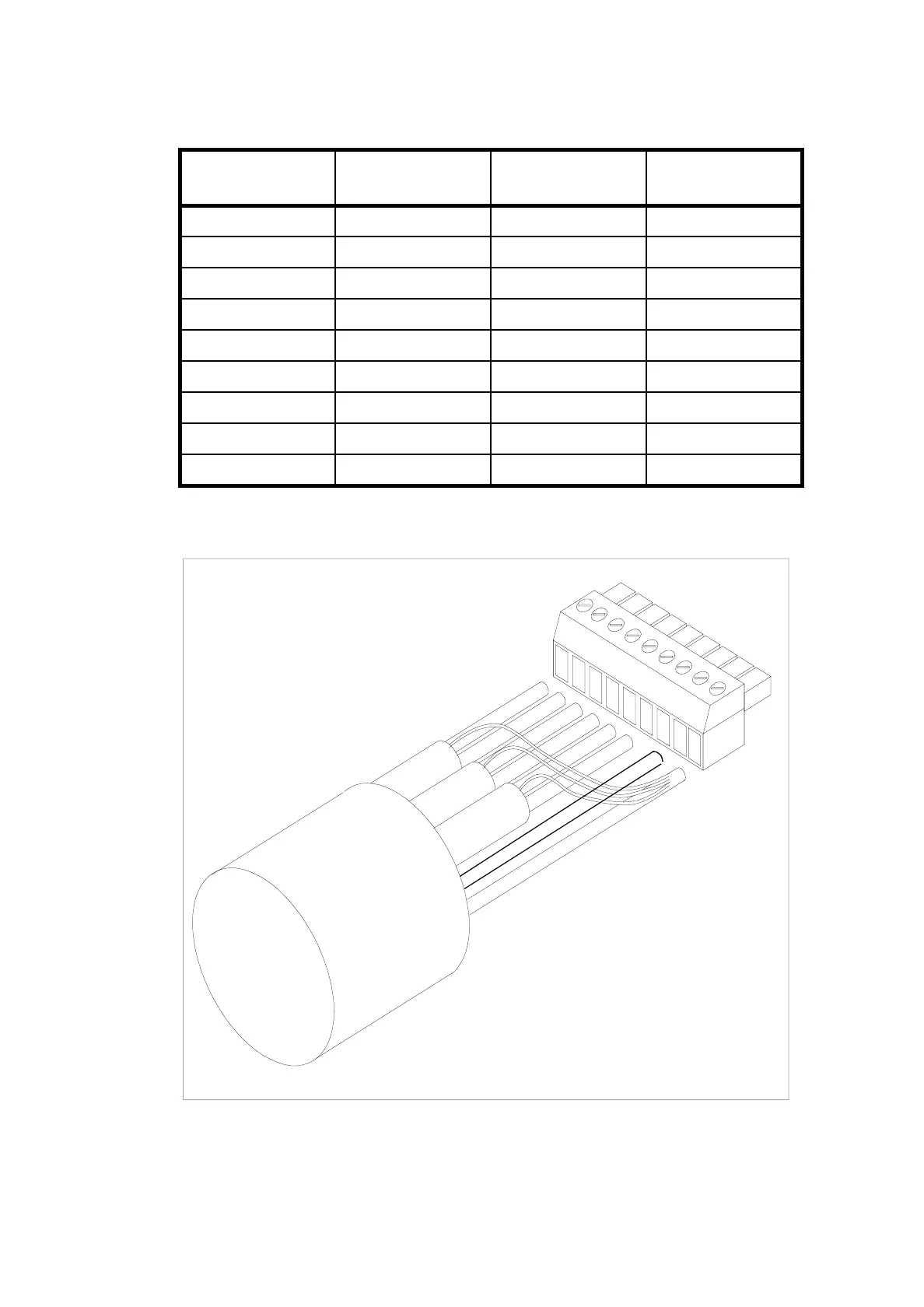

Figure 5. P2 Lower: encoder connector
Q-Drive Pin
Number.
Function.
PTS D-type Pin
no.
Suggested Wire
Colour.
1. A. 1. Pink.
2. /A. 6. Grey.
3. B. 2. Yellow.
4. /B. 7. Green.
5. Z. 3. Blue.
6. /Z. 8. Red.
7. Not Used. . .
8. 0V. 9. White.
9. Screen. 5. All screens.
Table 5: P2 Lower, Encoder Output Connections
2
3
1
Screen
Heidenhain cable
type 200 775 02
Blue
Yellow
Green
Grey
Pink
Red
4
7
6
5
9
8
W
hi
t
e
