8.3.1 Checking the electrical rotation sense of the resolver
The decimal point of the 7 segment display lights up when the motor shaft is turned
clockwise.

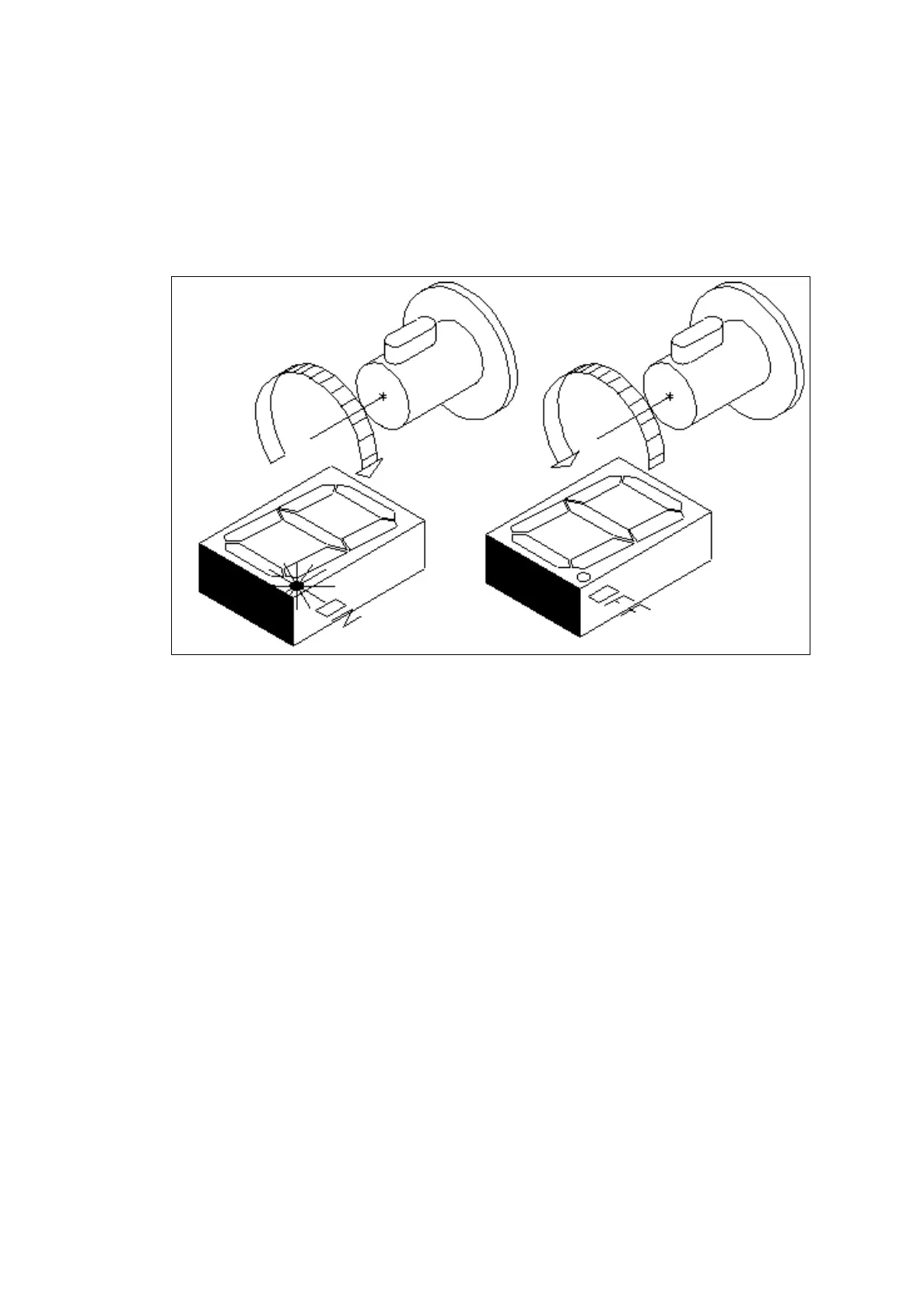

Figure 23. Electrical rotation sense of the resolver
If the decimal point lights up during anti-clockwise rotation, connections to the upper
half of connector P2 pin 7 (COS1) and pin 6 (COS2) must be reversed.
