Q-Drive Installation Manual Issue 1.5
Page 42 Copyright © 1996 Quin Systems Ltd.
The parameters on Page 6 are Read only and as such cannot be changed.
54 Resolver position
The resolver position is a 12 bit value of the current resolver position within
one rotation.
55 Revolution counter
The revolution counter is a 24 bit count of complete resolver revolutions.
This value can be used with the resolver position to effectively produce an
absolute encoder.
7.8 Pa
e 8 parameters

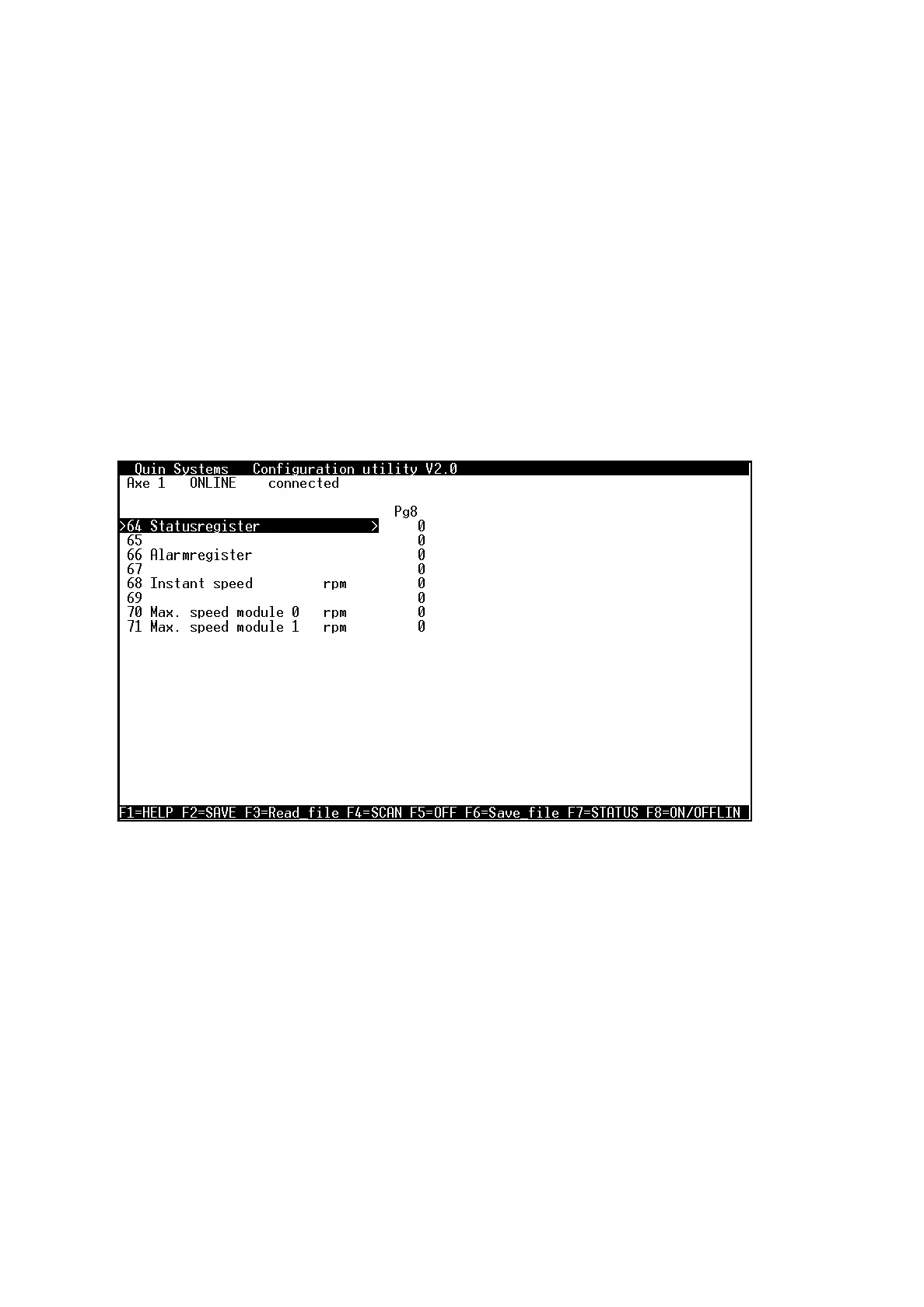

Figure 19. Q-Drive.exe: page 8 parameters
The parameters on Page 8 are Read only and as such cannot be changed.
