Issue 1.5 Q-Drive Installation Manual
Copyright © 1996 Quin Systems Ltd. Page 37
4 Nominal current: (10..64) <F2>
This parameter sets the continuous current delivered to the motor. This
parameter is programmable from 10 to 64
5 Pair of motor poles: (1..6)
This parameter sets the number of motor pole pairs for proper commutation.
This parameter is programmable from 1 to 6 (number of motor pole pairs).
6 Phase advance: (0..360)
This parameter is used to optimize the phase advance angle for each type of
motor. At max. speed (speed factor parameter = 127), this parameter can vary
the phase advance angle from 0 to 360 electrical degrees.
This parameter is programmable from 0 to 360° (typical value: 20).
7 Resolver Shift Angle: (-180..+180)
This parameter is used to set the resolver shift angle in software to
accommodate any resolver shift angle set by the motor manufacturer.
This parameter is programmable from -180 to +180 (electrical degrees).
7.4 Pa
g
e 1 Parameters

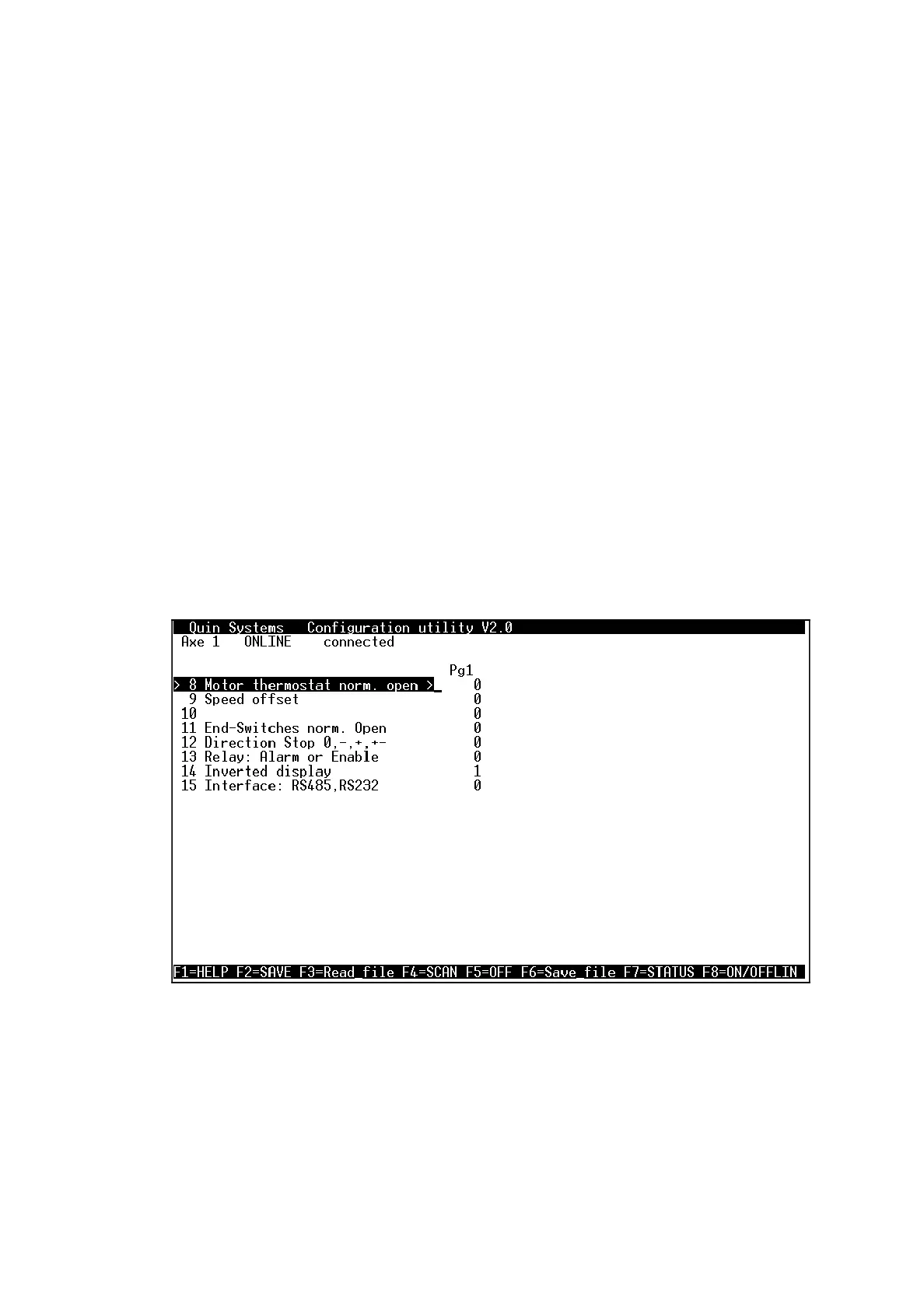

Figure 15. Q-Drive.exe: page 1 parameters
8 Motor thermostat normally, open: (0,1)
The servo-amplifier is set to suit the motor thermal switch type by selecting:
0: for motor thermal switch normally CLOSED (or for PTC)
1: for motor thermal switch normally OPEN (or for NTC)
