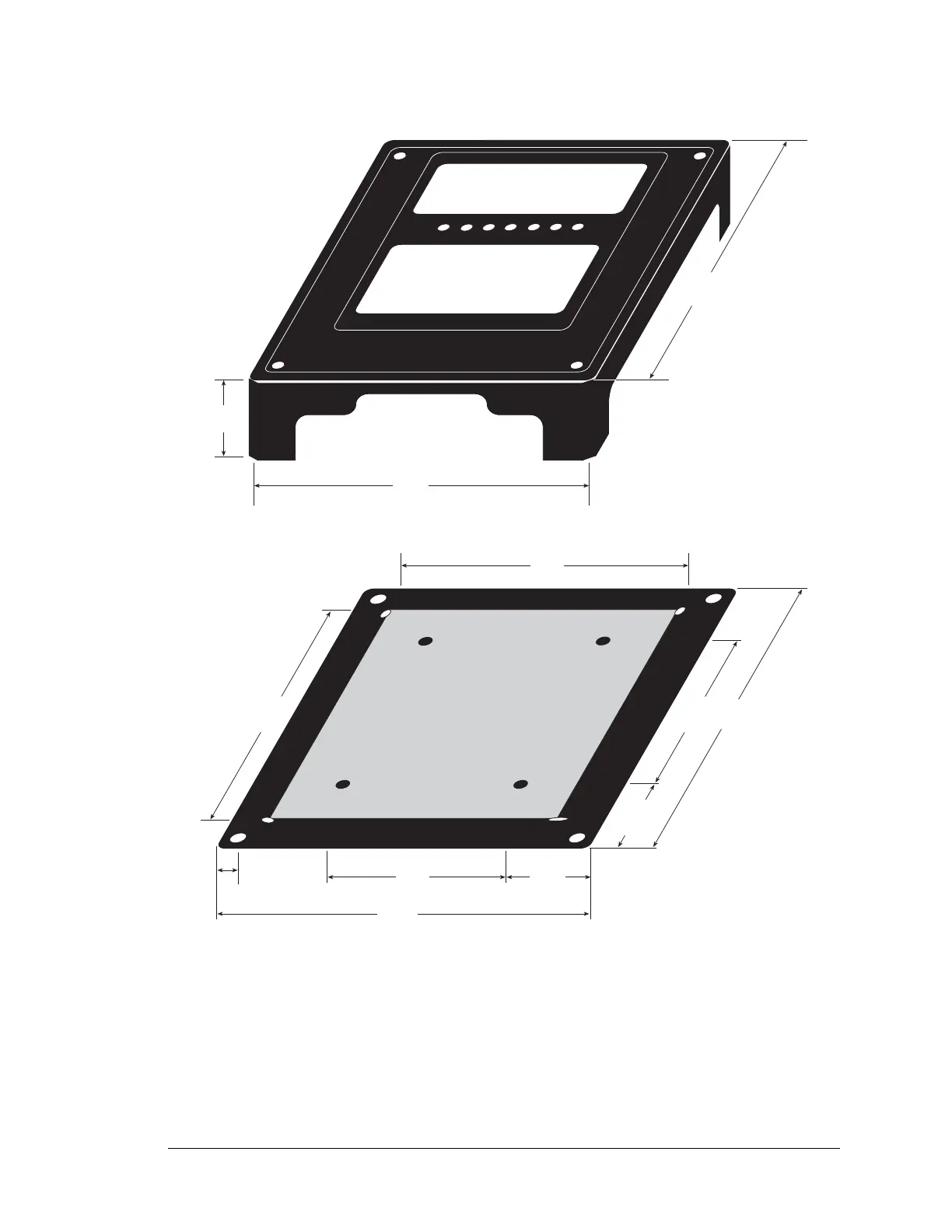

Figure D-6. Plastic Enclosure Dimensions
When fully assembled with the BL2100 and the LCD/keypad module installed, the total
height of the plastic enclosure will be 1.5" (38 mm).
NOTE: All measurements are in inches followed by millimeters enclosed in parentheses.
All dimensions have a manufacturing tolerance of ±0.01" (0.25 mm).
5.579
(142)
2.113
(54)
1.375
(35)
0.25
(6.4)
1.375
(35)
3.603
(92)
4.875
(124)
5.60
(142)
1.375
(35)
4.853
(123)
2.839
(72)
4.329
(110)
