62 Smartcat (BL2100)
A.1 Electrical and Mechanical Specifications

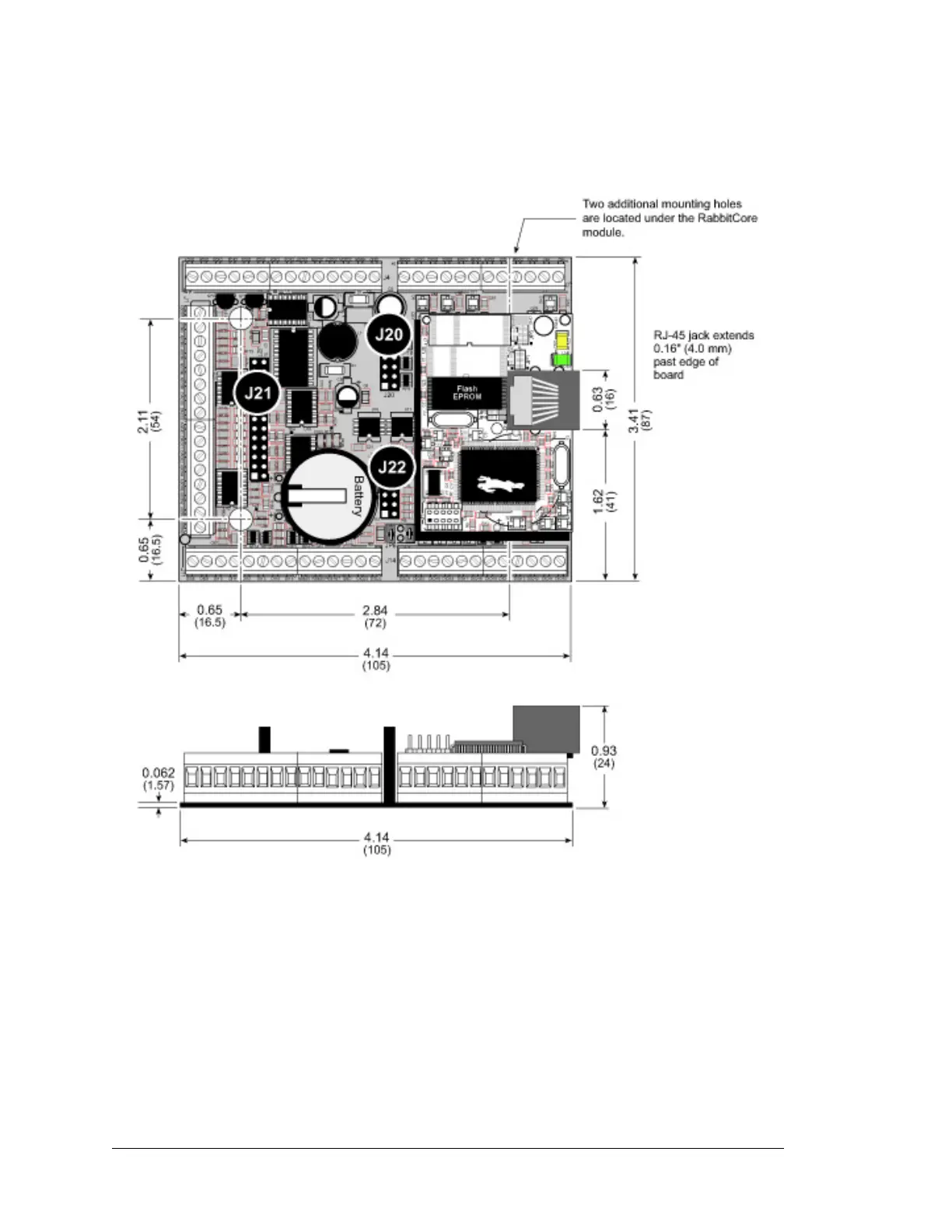

Figure A-1 shows the mechanical dimensions for the BL2100.
Figure A-1. BL2100 Dimensions
NOTE: All measurements are in inches followed by millimeters enclosed in parentheses.
All dimensions have a manufacturing tolerance of ±0.01" (0.25 mm).
