2 Smartcat (BL2100)
Four BL2100 models are available. Their standard features are summarized in Table 1.
Additional 512K flash/512K SRAM memory options are available for custom orders
involving nominal lead times. Contact your Rabbit sales representative or authorized
distributor for more information.
Appendix A provides detailed specifications.
1.2.1 Connector Options
In addition to the standard screw-terminal connectors supplied on BL2100 boards, IDC
headers, bottom-mount sockets, and polarized friction-lock terminals may be factory-
installed instead. Visit our Web site at www.rabbit.com or contact your Rabbit sales
representative or authorized distributor for further information.

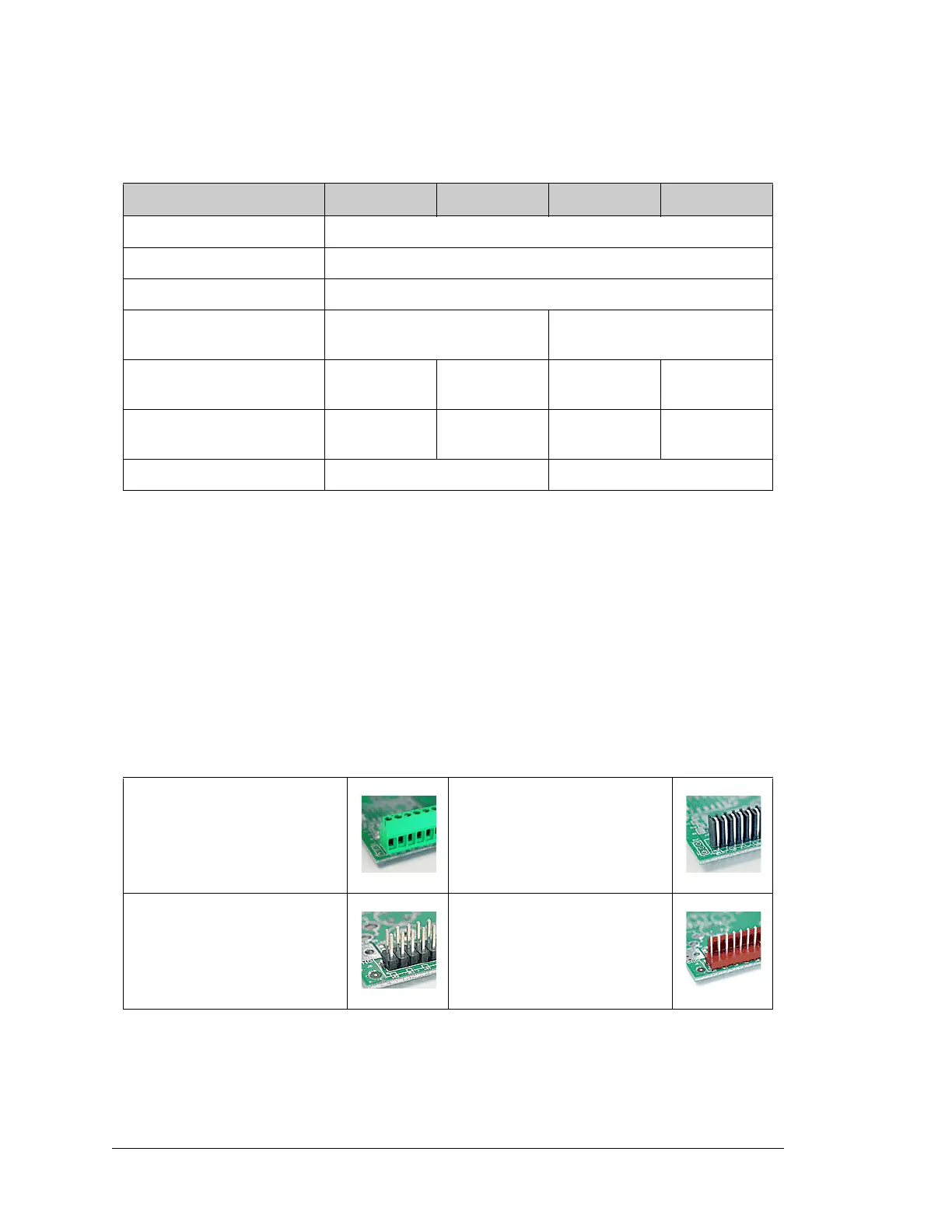

Table 1. BL2100 Models
Feature BL2100 BL2110 BL2120 BL2130
Microprocessor Rabbit 2000 running at 22.1 MHz
Static RAM 128K
Flash Memory 256K
RJ-45 Ethernet Connector,
Filter Capacitors, and LEDs
Yes No
A/D Converter Inputs
(-10 V to + 10 V)
Yes No Yes No
D/A Converter Outputs
(0 V to +10 V)
Yes No Yes No
RabbitCore Module Used RCM2200
RCM2300
Standard screw terminals, accept
up to 14 AWG (1.5 mm
2
) wire
Bottom-mount socket, 0.1" pitch
IDC headers, 0.1" pitch
Polarized friction-lock terminals,
0.1" pitch
