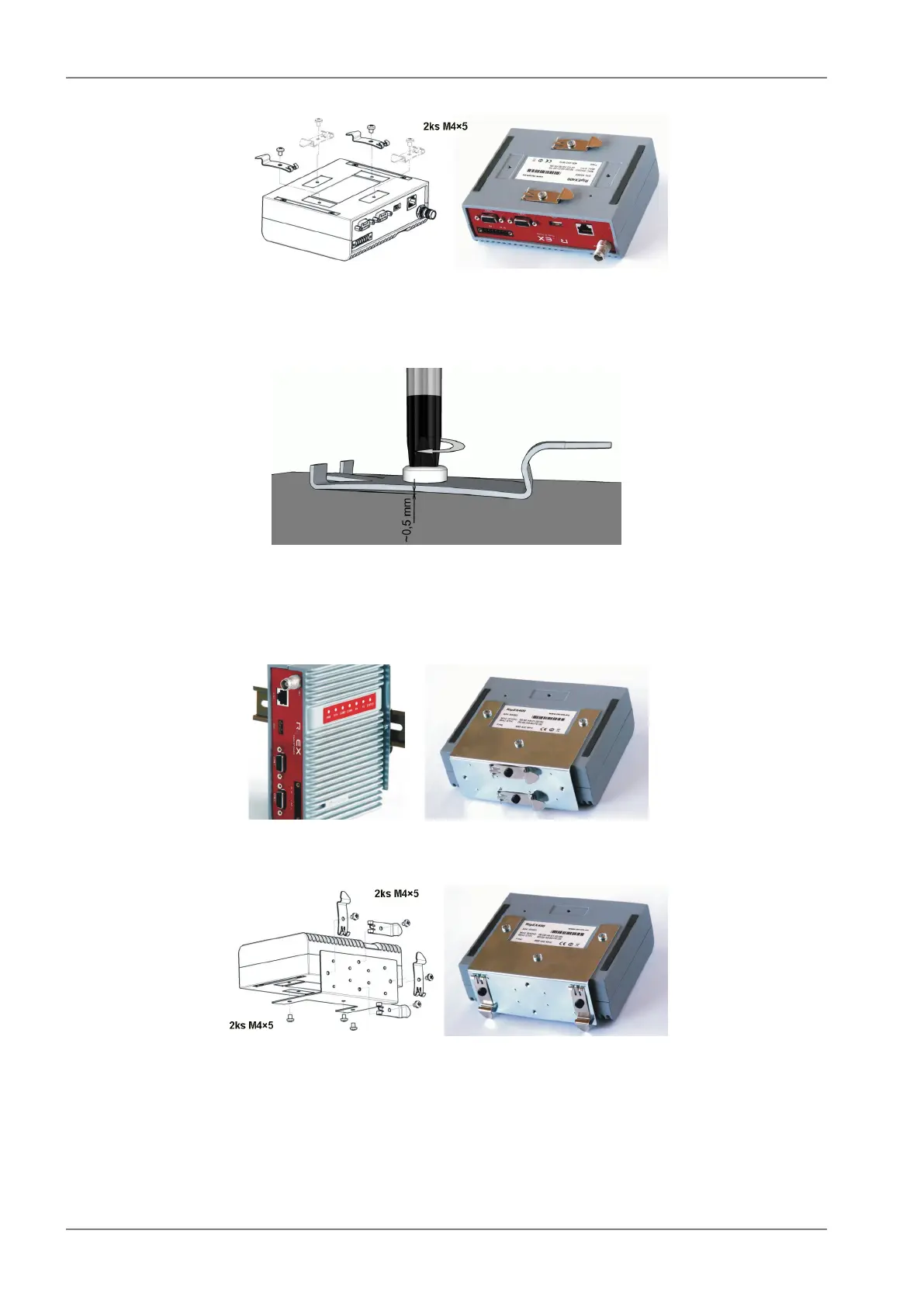

Fig. 6.2: Flat widthwise mounting to DIN rail
When tightening the screw on the clip, leave a 0,5 mm gap between the clip and the washer.
Fig. 6.3: Clip mounting
For vertical mounting to DIN rail, L-bracket (optional accessory) is used. Only use the M4×5 mm screws
that are supplied. Use of improper screws may result in damage to the RipEX mainboard!
Fig. 6.4: Vertical widthwise mounting to DIN rail
Fig. 6.5: Vertical lengthwise mounting to DIN rail
For more information see Section 4.6, “Accessories” – L-bracket.
