6.1.2. Flat mounting
For flat mounting directly to the support you must use the Flat bracket (an optional accessory). Only
use the M4×5 mm screws that are supplied. Use of improper screws may result in damage to the RipEX
mainboard!

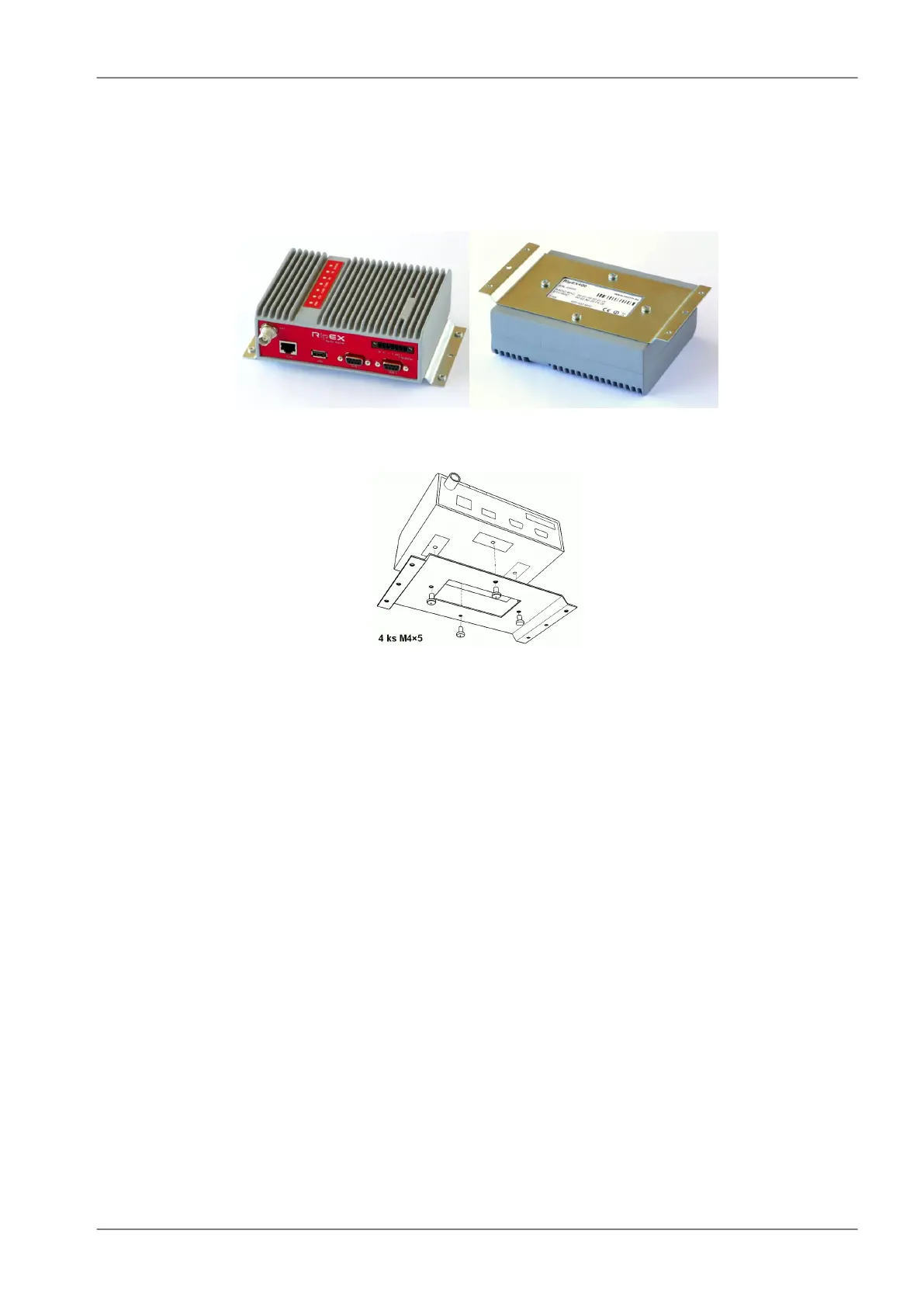

Fig. 6.6: Flat mounting using Flat bracket
Fig. 6.7: Flat mounting using Flat bracket
For more information see Section 4.6, “Accessories” – Flat-bracket.
