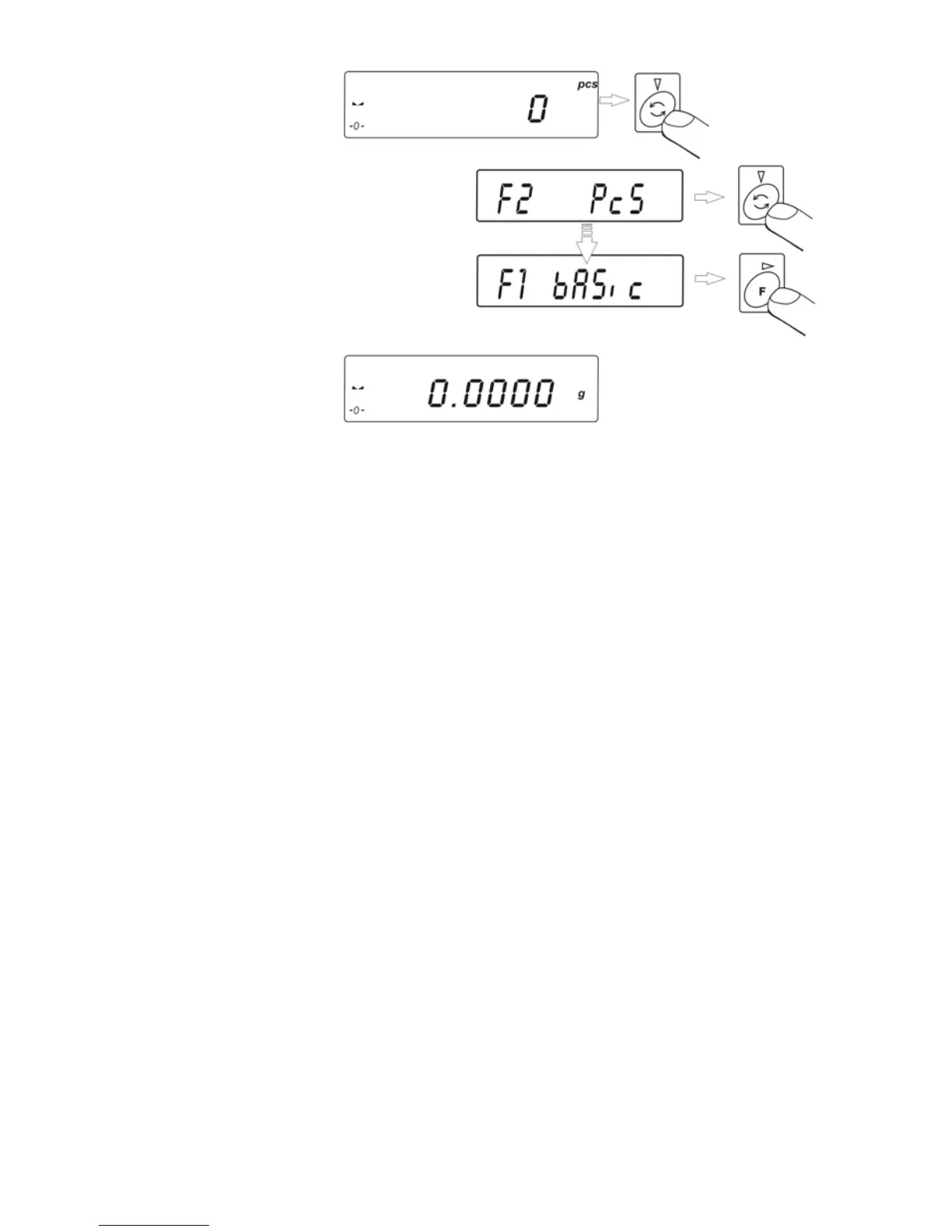

ATTENTION:

If user presses F key when details are not placed on the pan, message Er8 outr will

be indicated for few second and balance will automatically return to weighing.
