RADWAG AS series User Manual

- 78 -
On enabling the printout editing mode select a number of a non-standard printout (1-4) and
the place for the beginning of text in a printout (text strings from 1 to 80). Then, go to option
Edit to design a printout template or Erase all to erase all designed printout templates.

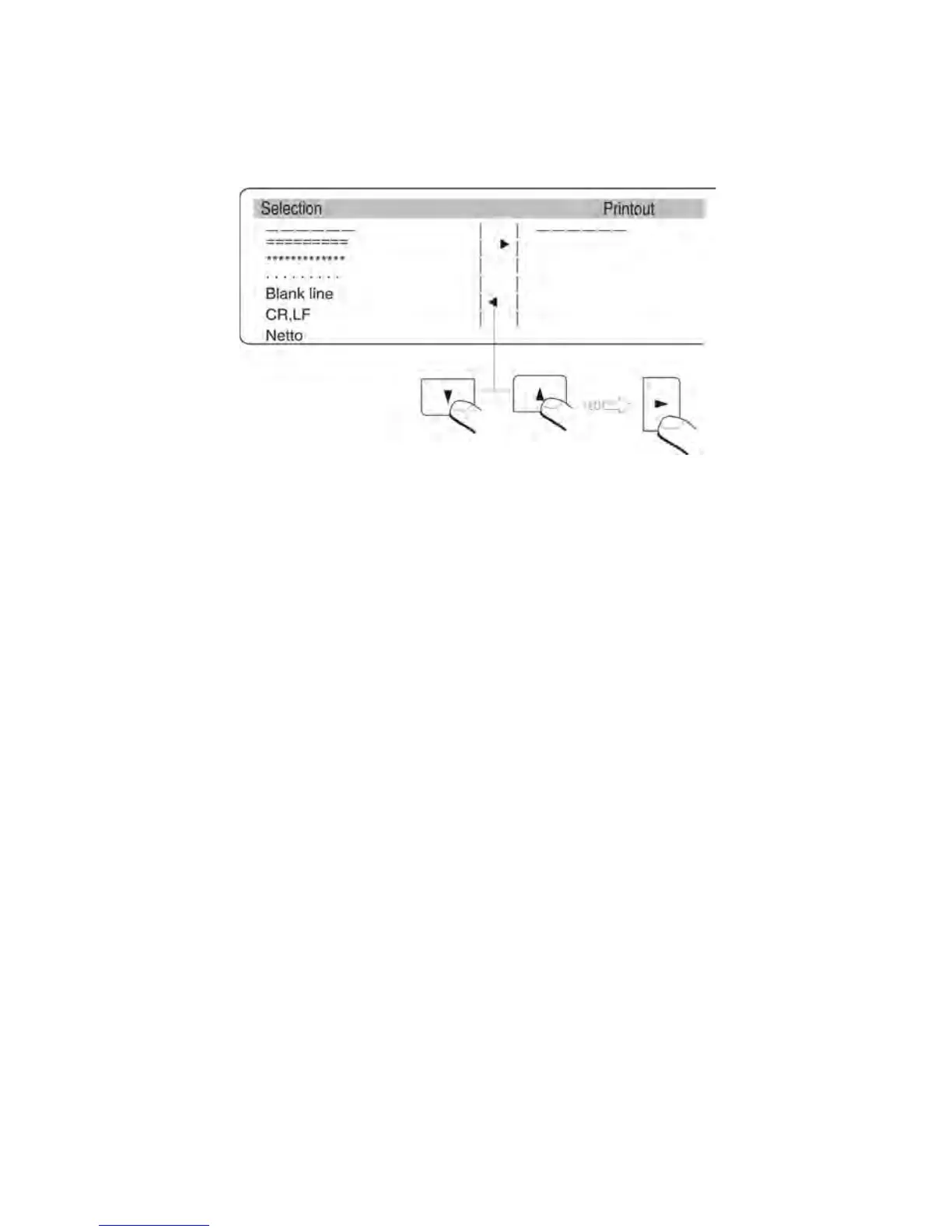

Fig. 64. Printout editing – selecting printout components
Use navigating arrow keys (up and down) to move the cursor between the following
fields. Press RIGHT ARROW KEY to add a selected component to a printout template.
On completing editing of a printout template press ENTER/PRINT key. The display shows
a message asking whether to create a printout template – once again press ENTER/PRINT
key to confirm
17.2.3.
Activating non-standard printouts
If an active printout template is set to STANDARD, then a printout comprises data on
measured mass and variables declared in the GLP menu (see point 17.1 Standard
printout – Fig. 60. Declaring variables for a printout – submenu GLP).
If a user wants to enable a non-standard printout template (1 to 4), then they need to select
a non-standard printout template and specify its beginning and end (the text strings of
printout start and stop)..

RADWAG AS series Specifications

General

Display	LCD with backlight
Maximum Capacity	Varies by model
Readability	Varies by model
Pan Size	Varies by model
Calibration	Internal or external, depending on model
Stabilization Time	≤ 3 seconds
Interface	RS232, USB
Repeatability (Standard deviation)	Varies by model
Linearity	Varies by model
Net Weight	Varies by model
Protection Class	IP 43
