Document ID: RDWR-ALOS-V2815_IG0203 27
Chapter 2 – Alteon Application Switch Platforms
This chapter describes the Alteon Application Switch platforms, and includes the following sections:
• Alteon Application Switch 4000 Series, page 27
• Alteon Application Switch 5000 Series, page 31
• Alteon VA Platform, page 36
Alteon Application Switch 4000 Series
This section includes:
• Alteon Application Switch 4408, page 27
• Alteon Application Switch 4416, page 29
• LCD Module—Alteon Application Switch 4416, page 31
Alteon Application Switch 4408

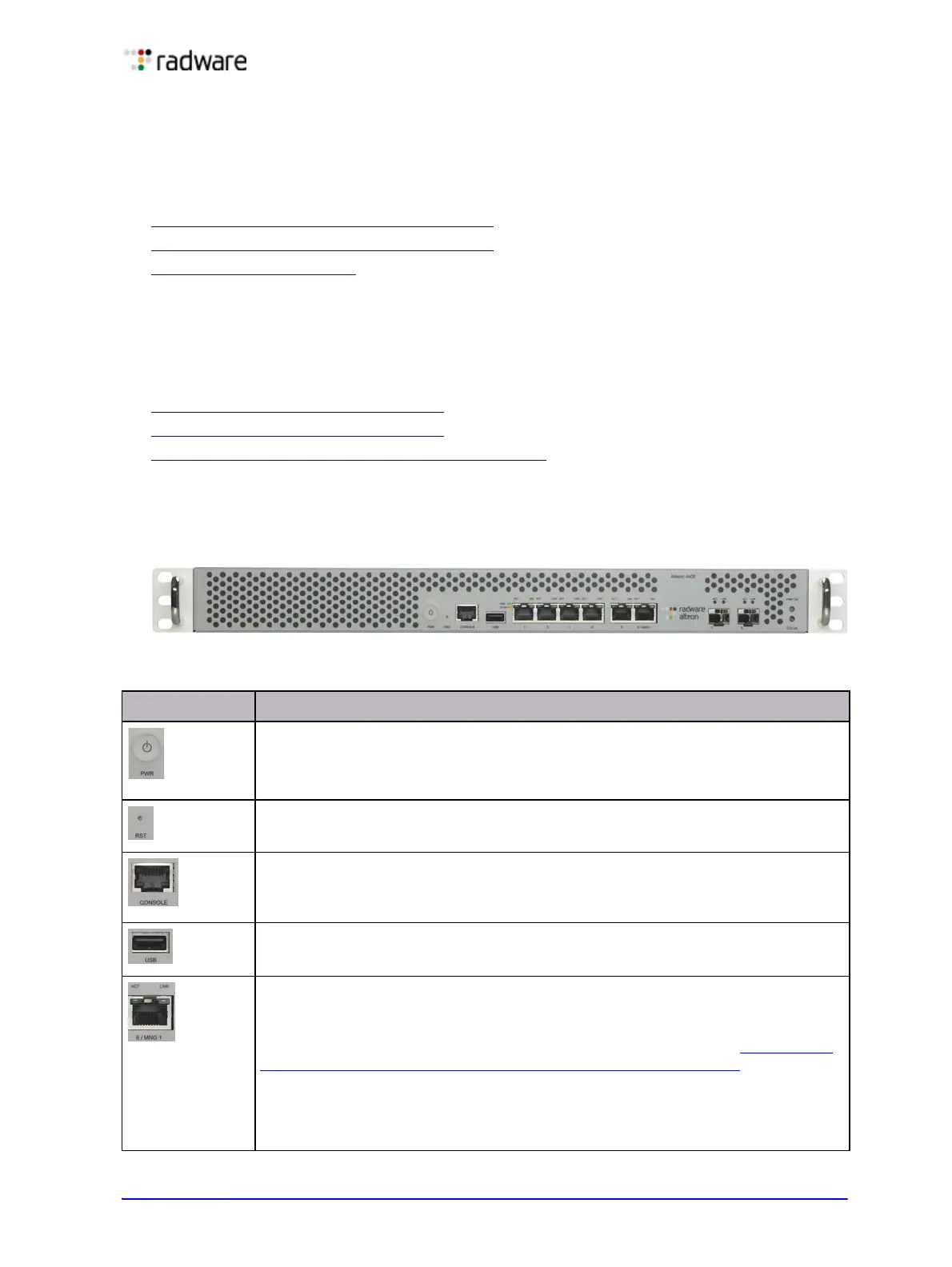

Figure 1: Alteon Application Switch 4408 Front Panel (Single and Dual Power Supply Models)
Table 1: Alteon Application Switch 4408 Front Panel
Feature Label/Description
Power button. Turns power on and off. Pressing the button for 1 to 4 seconds
causes a graceful shutdown of the system, thus preserving system integrity.
Pressing the button for more than four (4) seconds causes the hardware to
power down.
Reset button. Resets the device.
Serial RJ-45 port for out-of-band management.
Note: Radware supplies a RJ-45–to–DE-9 adapter cable to connect the
console port of the platform to a console PC.
USB port for recovery.
RJ-45 GbE ports for traffic or in-band management. The platform supports six
RJ-45 GbE ports for traffic or in-band management.
You can manually configure the last RJ-45 GbE port, labeled 6/MNG 1, to be a
dedicated, out-of-band management port. For the procedure, see Configuring
the Management Port for Alteon Application Switch 4408, page 41.
LEDs:
• ACT—flashing indicates activity.
• LINK—green indicates 1000 Mbit/s. Yellow indicates 10 or 100 Mbit/s.
