Alteon Application Switch 4416

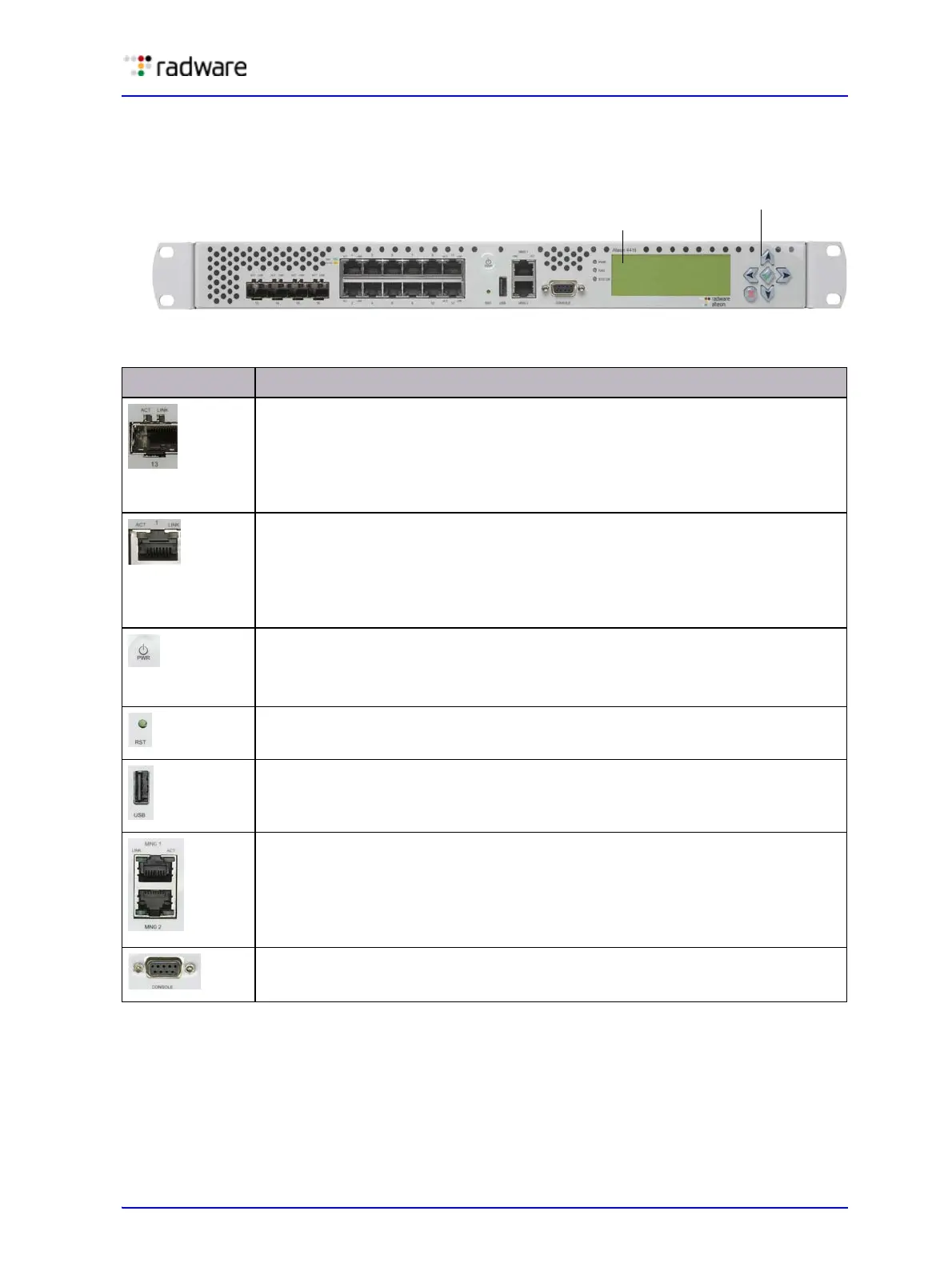

Figure 4: Alteon Application Switch 4416 Front Panel
Table 3: Alteon Application Switch 4416 Front Panel
Feature Label/Description
SFP GbE ports for traffic or management. The platform supports four (4) SFP
ports.
LEDs:
• ACT—flashing indicates activity.
• LINK—green indicates 1000 Mbit/s.
RJ-45 GbE ports for traffic or management. The platform supports twelve (12)
GbE ports.
LEDs:
• ACT—flashing indicates activity.
• LINK—green indicates 1000 Mbit/s. Yellow indicates 10 or 100 Mbit/s.
Power button. Turns power on and off. Pressing the button for 1 to 4 seconds
causes a graceful shutdown of the system, thus preserving system integrity.
Pressing the button for more than four (4) seconds causes the hardware to
power down.
Reset button. Resets the device.
USB port for recovery.
Management port. The MNG 1 port is an RJ-45 10/100/1000 Ethernet port,
which is for management only. The MNG 2 port is currently non-operational.
LEDs:
• ACT—flashing indicates activity.
• LINK—green indicates 1000 Mbit/s. Yellow indicates 10 or 100 Mbit/s.
RS-232 DE-9 port for out-of-band management.
LCD
LCD menu buttons
