Radwin RW 2000 Series - Connecting a Laptop to 2000-Plus (LFF, SFF and Alpha 6.4) Odus

Page 23
June 2023
Corporate Headquarters | T. +972.3.766.2900 | E. sales@radwin.com | www.radwin.com

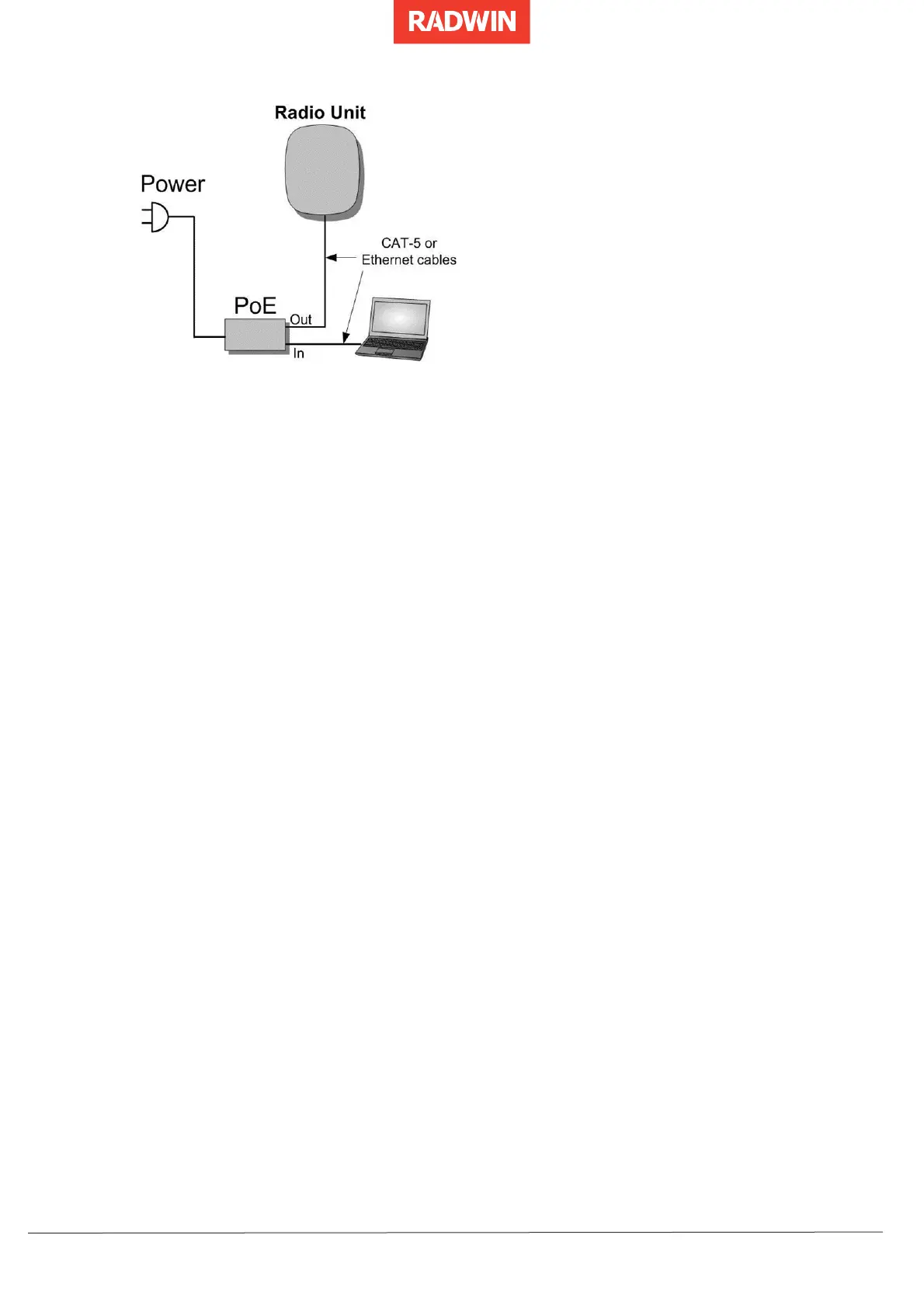

Figure 16 Connecting the laptop to an ODU
ODU socket connections are shown in the following pages.
• Connecting a Laptop to 2000‐Plus (LFF, SFF and Alpha 6.4) ODUs
• Connecting a Laptop to RADWIN 2000 Alpha INT ODUs
• Connecting a Laptop to RADWIN 2000 Alpha EMB ODUs
• Connecting a Laptop to RADWIN 2000 E ODUs
3.3.1 Connecting a Laptop to 2000‐Plus (LFF, SFF and Alpha 6.4)
ODUs
1. Connect to the IDU socket.
