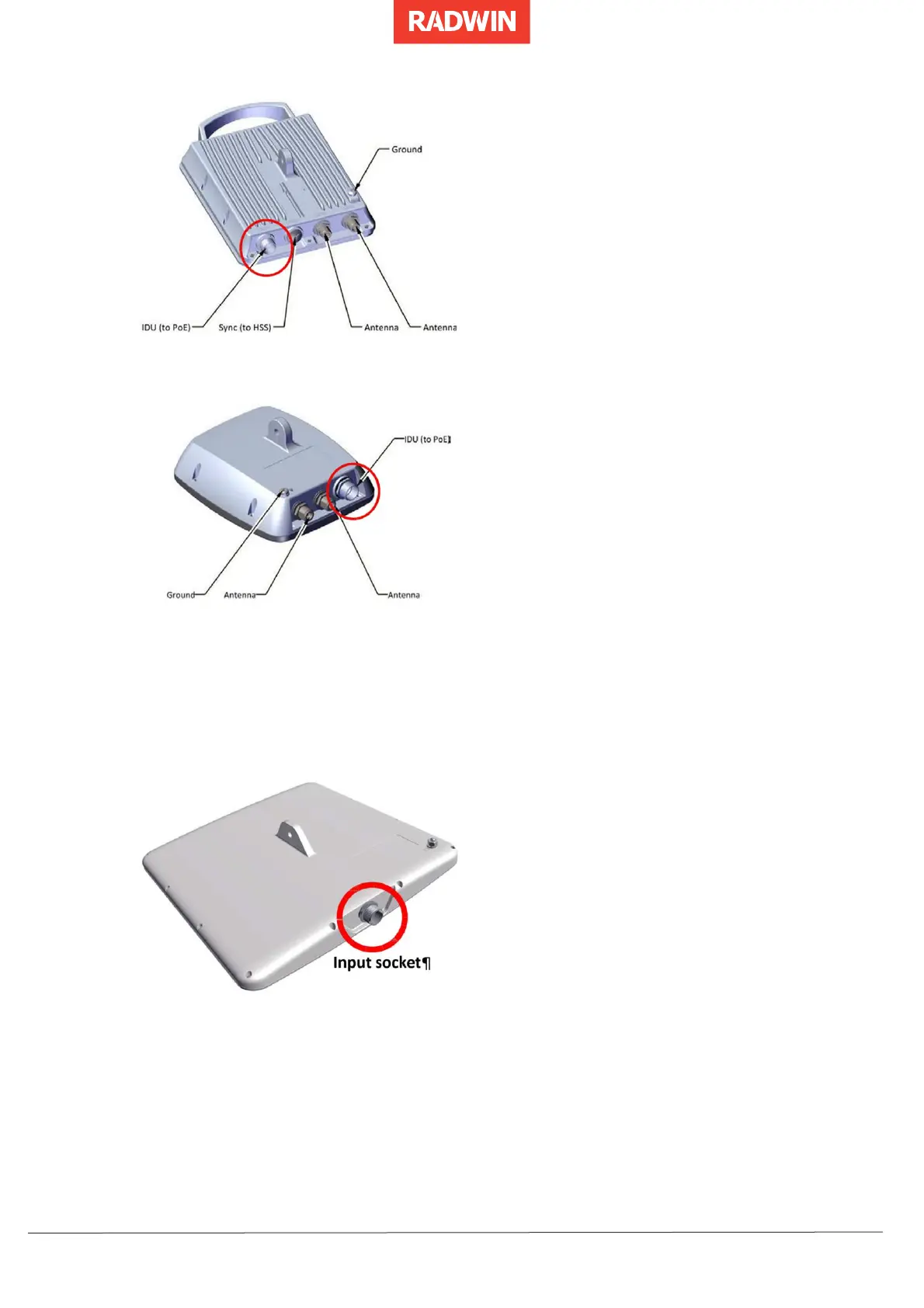

Figure 17 Laptop/network port: LFF ODU (Connectorized ODU shown)
Figure 18 Laptop/network port: SFF ODU (Connectorized ODU shown)
3.3.2 Connecting a Laptop to RADWIN 2000 Alpha INT ODUs
1. Connect to the input socket (not labeled).
Figure 19 Laptop/network port: RADWIN 2000 Alpha INT ODU
3.3.3 Connecting a Laptop to RADWIN 2000 Alpha EMB ODUs
1. Connect to the input socket (not labeled).
