Figure 20 Laptop/network port: RADWIN 2000 Alpha EMB ODU
3.3.4 Connecting a Laptop to RADWIN 2000 E ODUs
1. Connect the PoE to a power source.
2. Connect an ethernet cable between the laptop and the PoE.
3. Connect an ethernet cable from the POE to the ODU PoE IN socket.

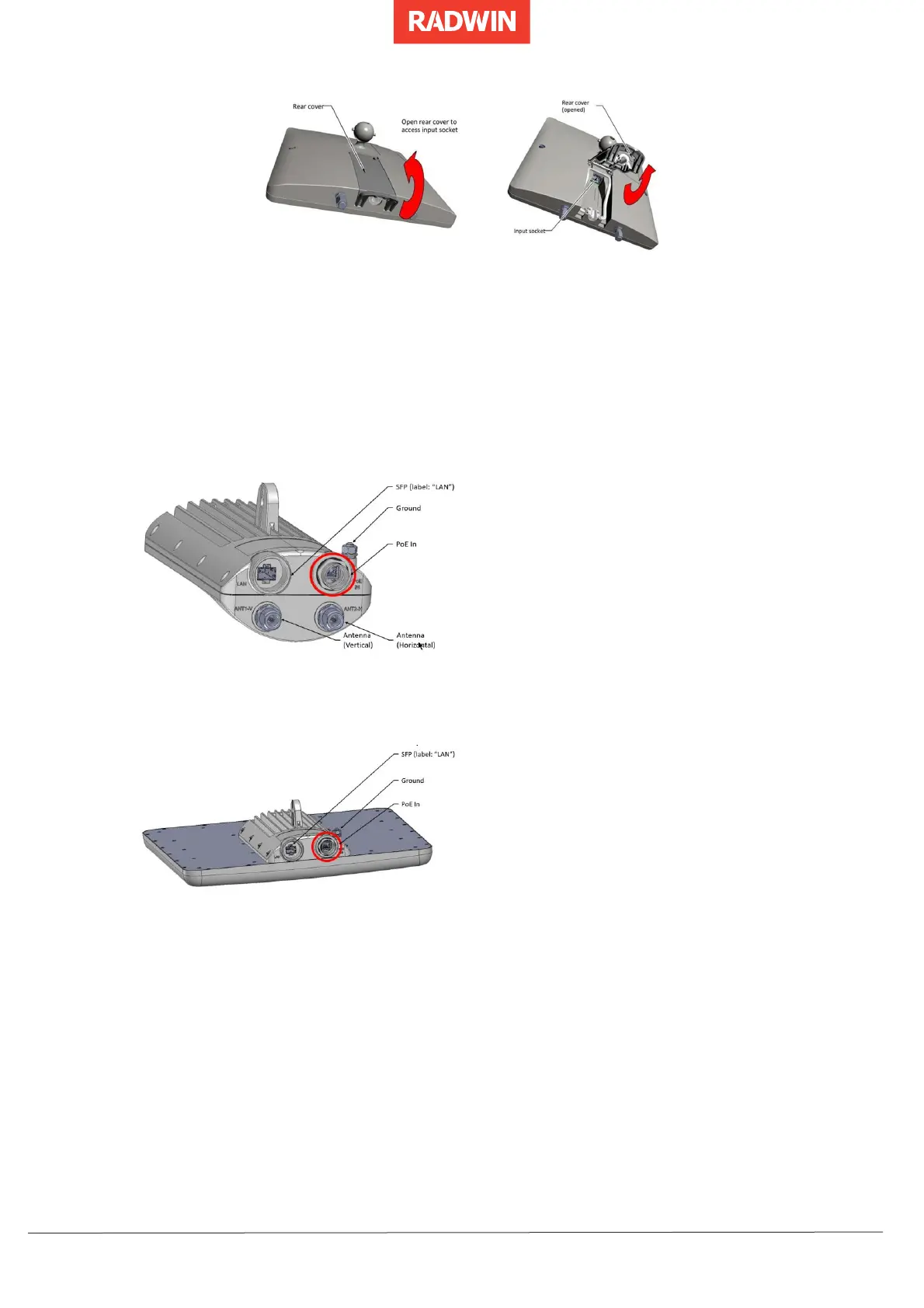

Figure 21 External ODU - POE IN socket
Figure 22 Integrated ODU - POE IN socket
3.4 Configuring the ODUs for Connectivity
As described in Management Tools , either the RADWIN Manager or the browser user
interface is used for configuration, depending on the ODU model as follows:
• Use RADWIN Manager to perform the initial configuration of RADWIN 2000-Plus
ODUs:
o Configure as RT‐A(HBS) or RT‐B(HSU)
