4. Close the clamp halfway.
5. Keep the clamp half‐closed until the alignment procedure is complete.

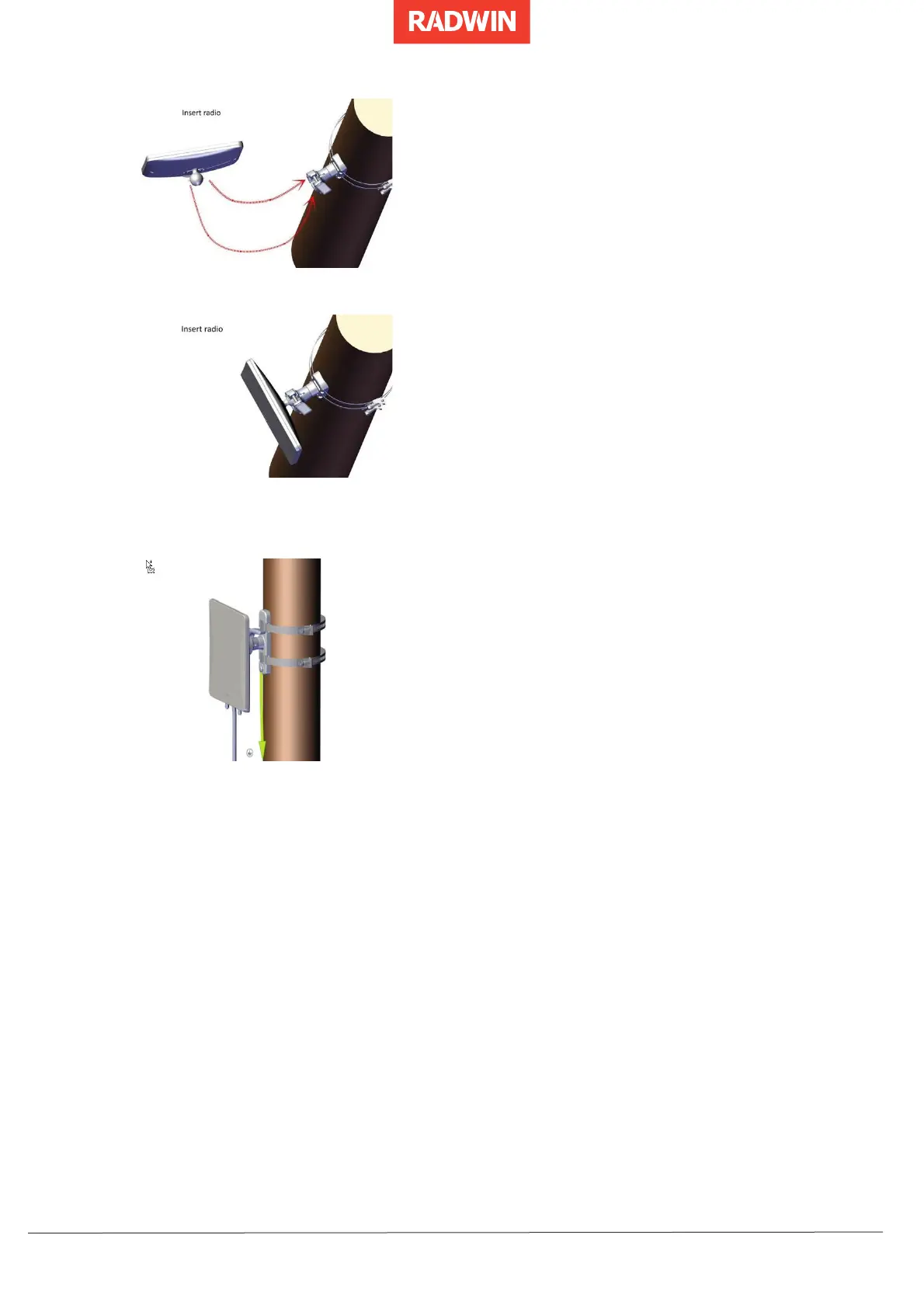

3.9 Mounting Alpha Connectorized ODUs
The Alpha Connectorized ODU is mounted on a pole using worm‐drive clamps.
1. Place the ODU on a pole.
