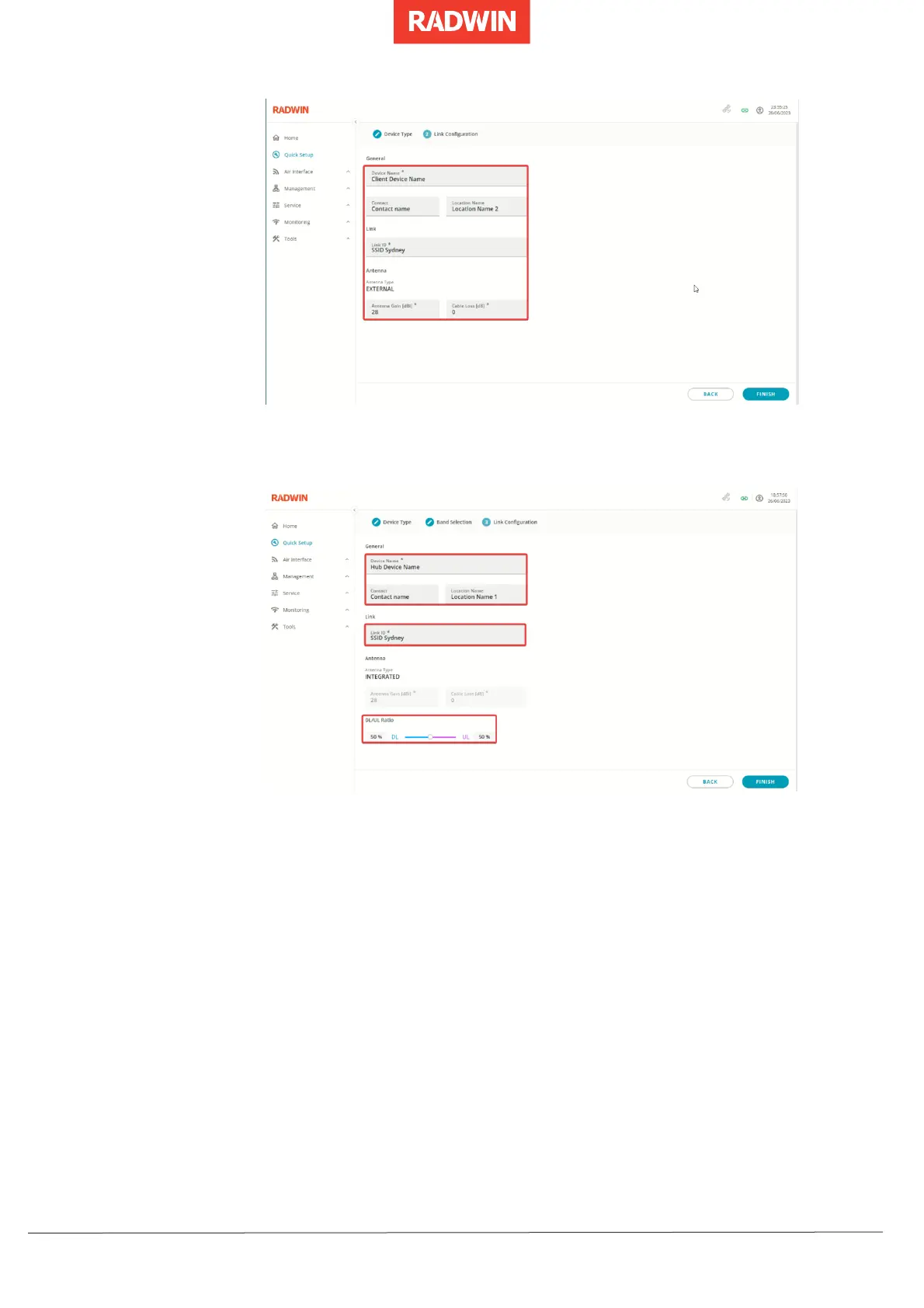

ii. For Hub:
4. After finishing the quick setup, the home screen appears.
5. Disconnect the ODU and prepare it for deployment in the field.
3.5 Checking Items to be Installed
• ODU + mounting kit
• 2 LPUs for each ODU (recommended)
• PoE (if outdoor, requires mounting kit)
• CAT‐5e cables
• Grounding cables (14 AWG) for ODU, LPUs and outdoor PoEs (if used)
• External antenna + mounting kit (if using an external antenna for LFF or SFF
ODUs).+ Bracket (for Radwin Dish antenna with alpha/E)
• RF cables (if using an external antenna for LFF or SFF ODUs)
