Radwin RW 2000 Series User Manual

Page 47
June 2023
Corporate Headquarters | T. +972.3.766.2900 | E. sales@radwin.com | www.radwin.com

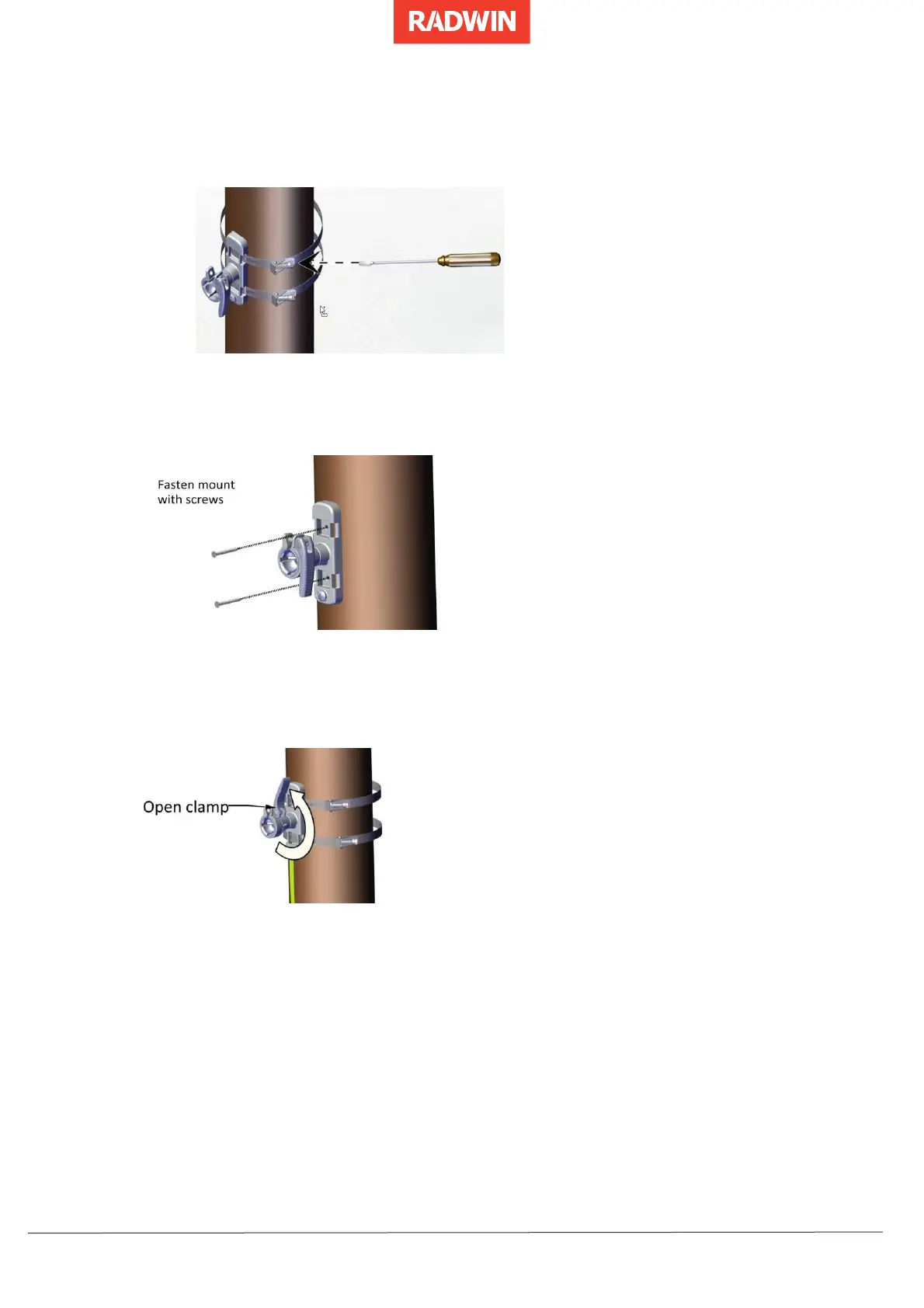

e. Once the band is at the correct radius, close the clamp and tighten it with a
screwdriver (make sure the tops of the screws face away from the mount).
3. Alternatively, you can fasten the mount with screws (not included) appropriate for the
surface being used:
3.8.2 Mounting the RADWIN 2000 Alpha EMB ODU
1. Open the clamp (for ODU).
2. Position the ODU so that the knobs on the mounting ball on the rear are opposite the
slots on the mount.
