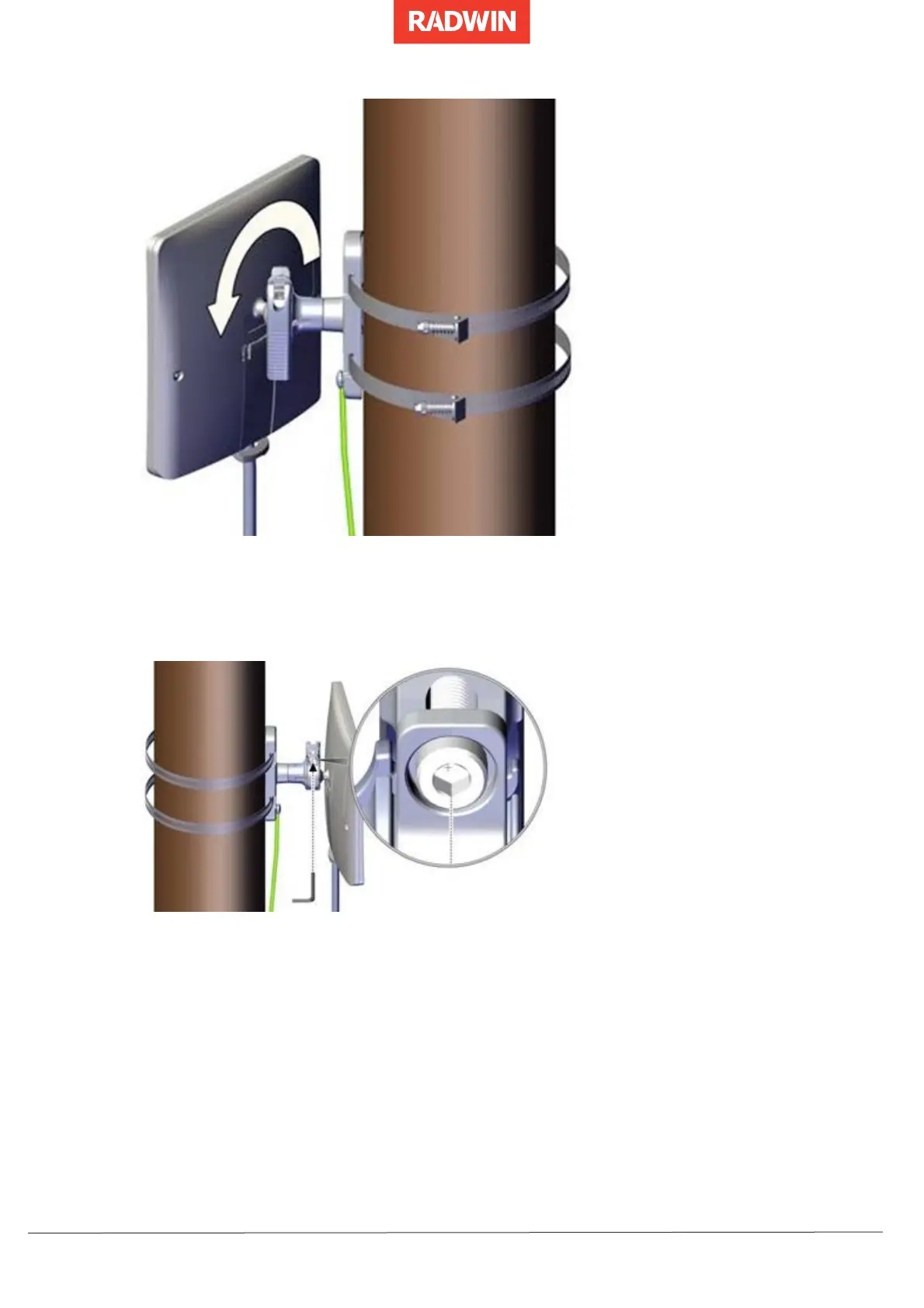

Figure 56 Tighten arm on mount: RADWIN 2000 Alpha EMB ODU
3. If the ODU requires more tightening, use the hex screw with a 5mm hex key.
Figure 57 Use hex screw to further tighten arm on mount
7.2.3 Swivelling a RADWIN 2000 Alpha INT mount
1. Swivel the mounts as shown following:
