3.11 Connecting the ODUs to an External Antenna

An external or supplemental antenna is optional for these ODUs:

• Connectorized LFF (large form‐factor) ODUs

• Connectorized SFF (small form‐factor) ODUs

• RADWIN 2000 Alpha EMB ODUs

An external antenna is required for:

• Alpha Connectorized ODU

• RADWIN 2000 E External ODU

3.11.1 Connecting LFF and SFF ODUs to an External Antenna

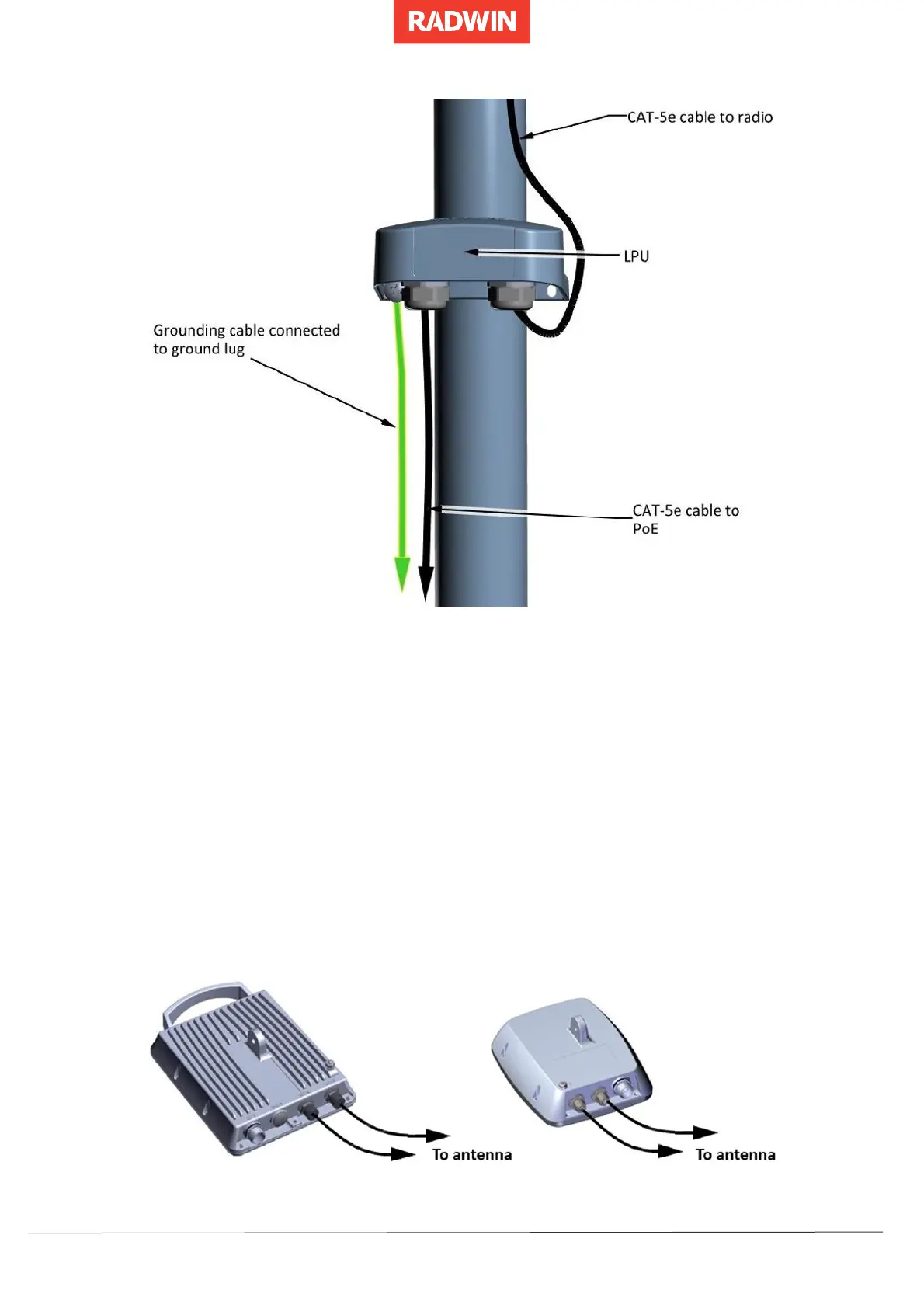

Connect the external antenna to the antenna connections on the ODU as shown.
