Page 43
June 2023
Corporate Headquarters | T. +972.3.766.2900 | E. sales@radwin.com | www.radwin.com

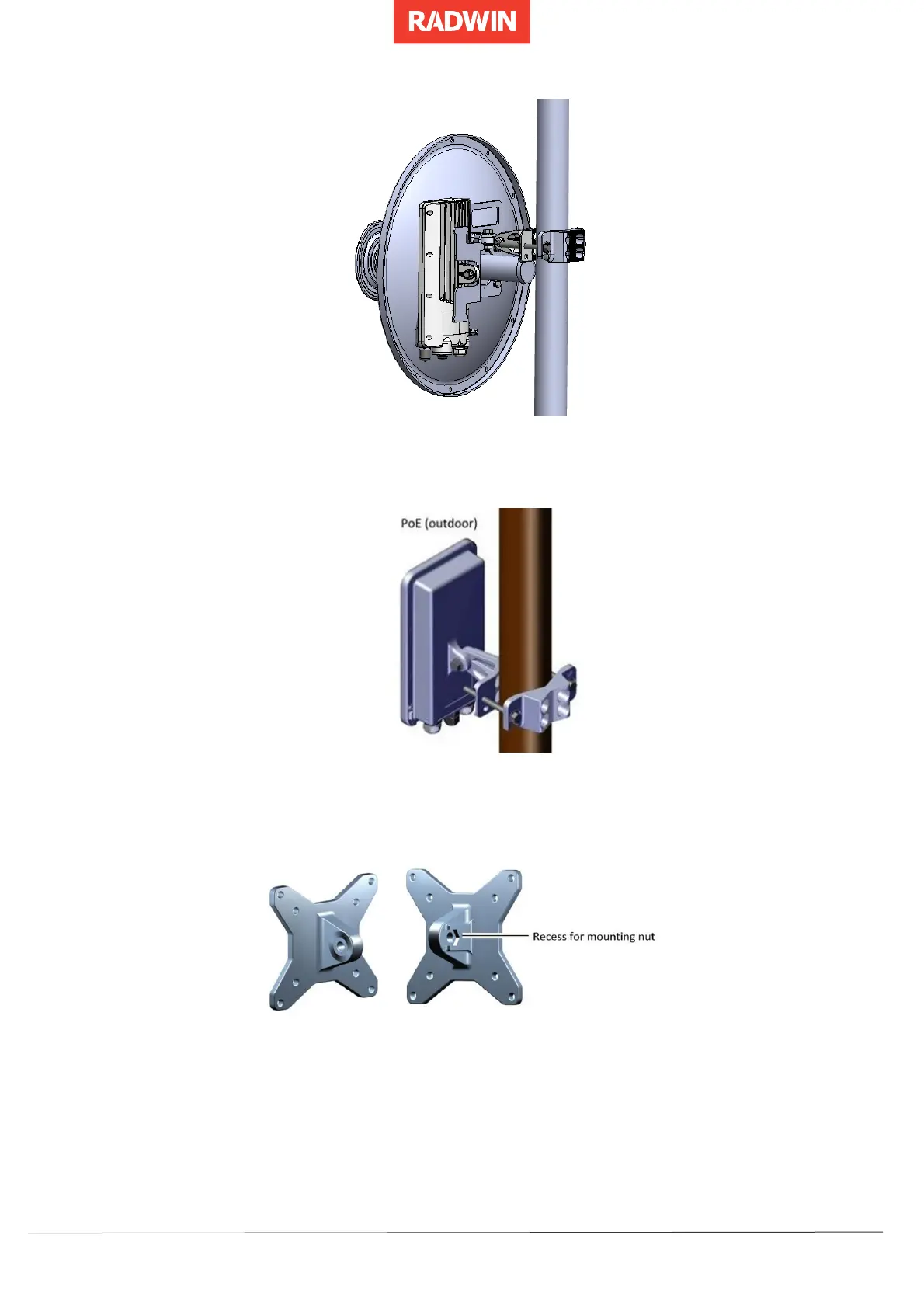

Figure 27 Mounted RADWIN 2000 E integrated ODU
Figure 28 Mounted PoE
Flat Panel Antenna
For a flat panel antenna, a mounting kit adapter is required:
Figure 29 Flat panel antenna mounting kit adapter
1. Attach the mounting kit adaptor to the rear of the external antenna:
