Page 64

June 2023

Corporate Headquarters | T. +972.3.766.2900 | E. sales@radwin.com | www.radwin.com

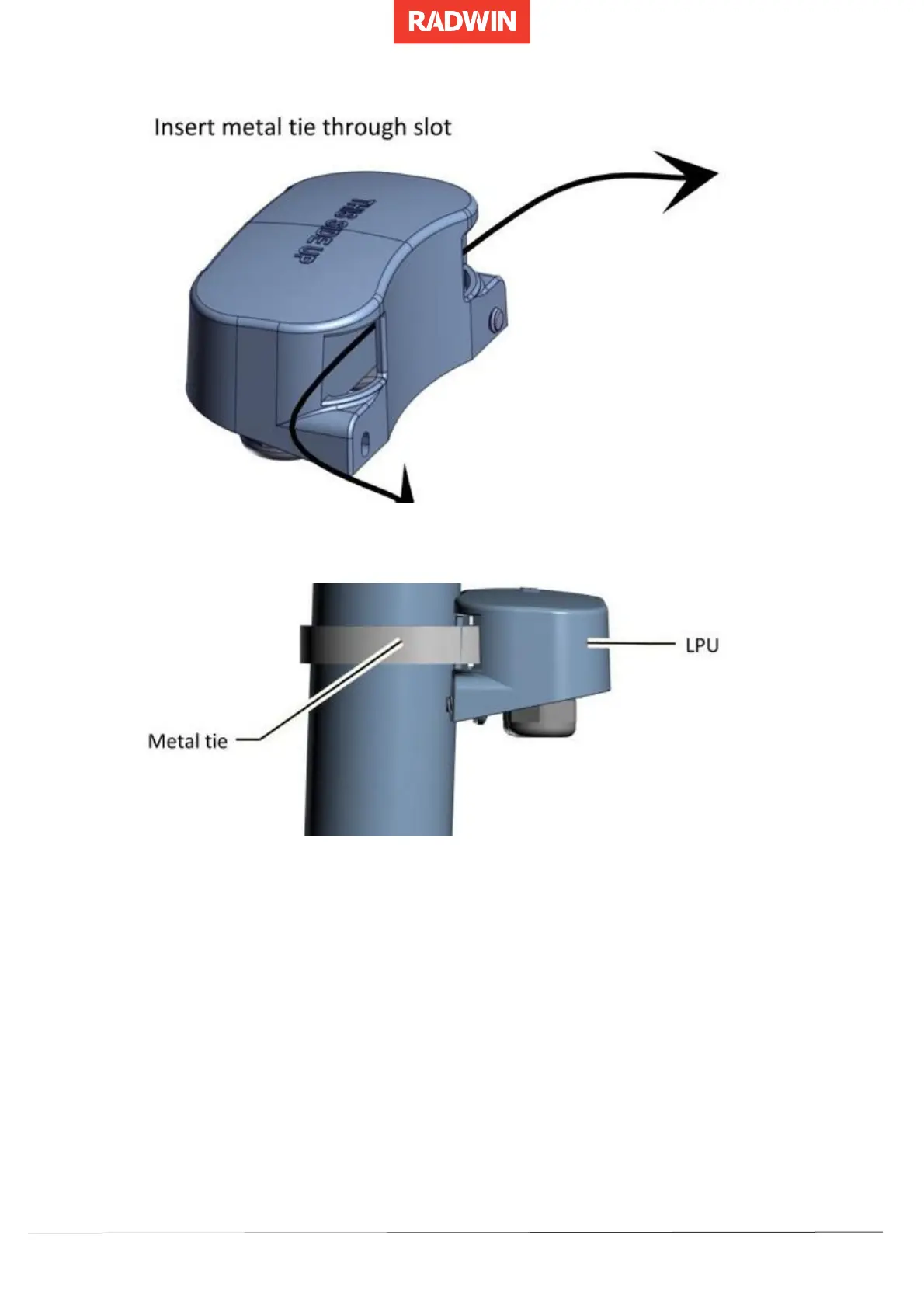

2. Tighten the metal band:

3. Connect the grounding lug to a ground source.
