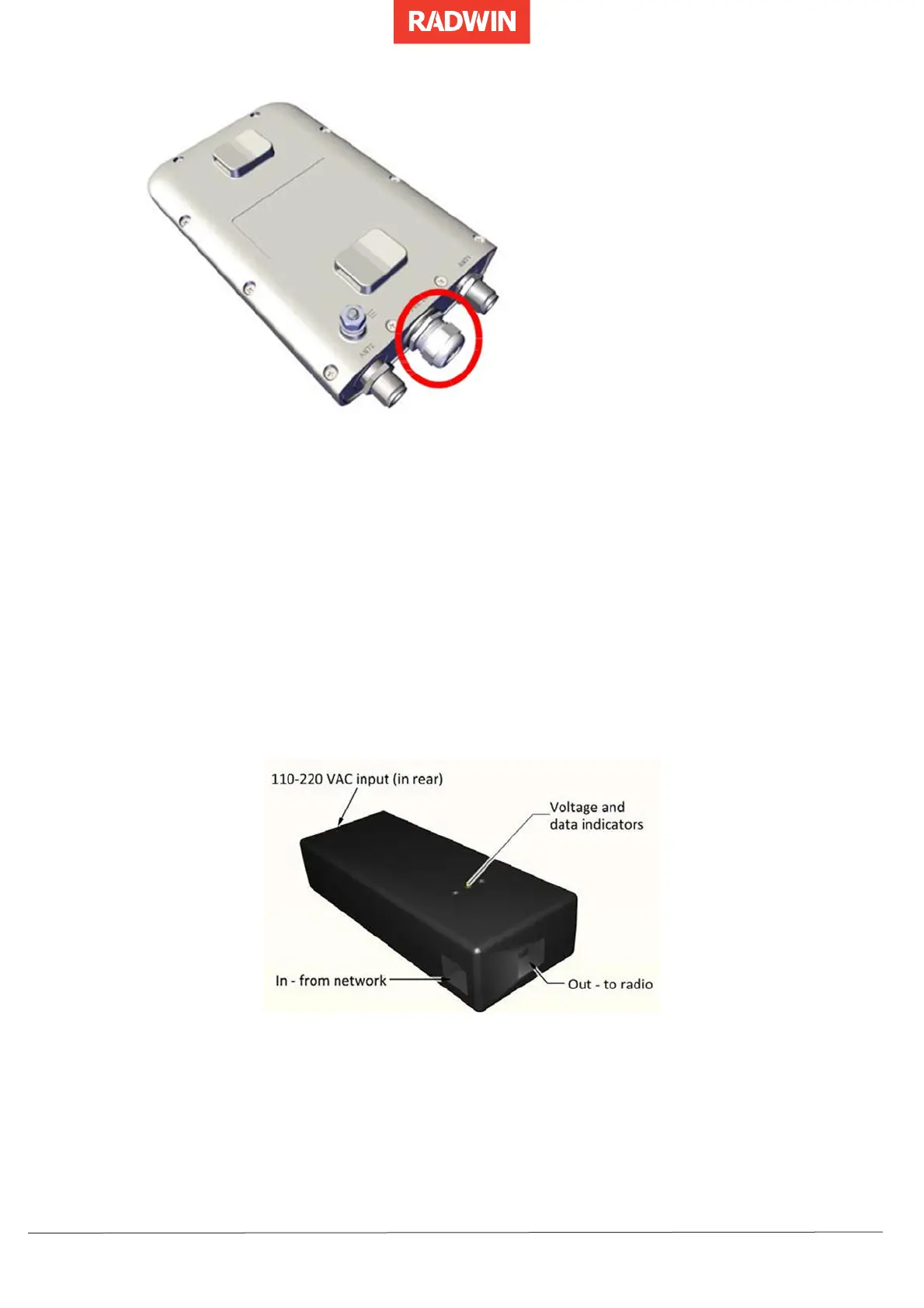

Figure 47 Input port: Alpha Connectorized ODU ("PoE IN")
2. Add sealant tape to the connections (see Waterproofing ).
3. Route the CAT‐5e and ground cables down from the ODU to a PoE.
It is recommended to route the CAT-5e cable via 2 LPUs: one near the ODU, and
one near the PoE.
4. Fasten CAT‐5e cable connections with a cable gland and add sealant tape.
5. Connect the ground cable to the ground.
6. Perform the final connections via a PoE depending on the type of PoE you are using,
as described below.
Indoor PoE
1. Connect the CAT‐5e cable from the lower LPU to the "Out" port.
2. Connect the LAN cable to the "In" port.
3. Connect the power cable.
