408 SERVICING AND MAINTENANCE
3. Disconnect the wiring harness connectors
from the bulb socket.
Wiring Harness Connector
4. Rotate the bulb socket counterclockwise a
qua
rter turn to unlock it from the housing.
5. Pull the bulb straight out of the socket.
6. R
everse the procedure to install the bulb and
hous
ing.
CENTER HIGH MOUNTED STOP LAMP (CHMSL)
WITH CARGO LAMP
See below steps to replace:
1. Remove the four screws holding the housing/
len
s to the body as shown.

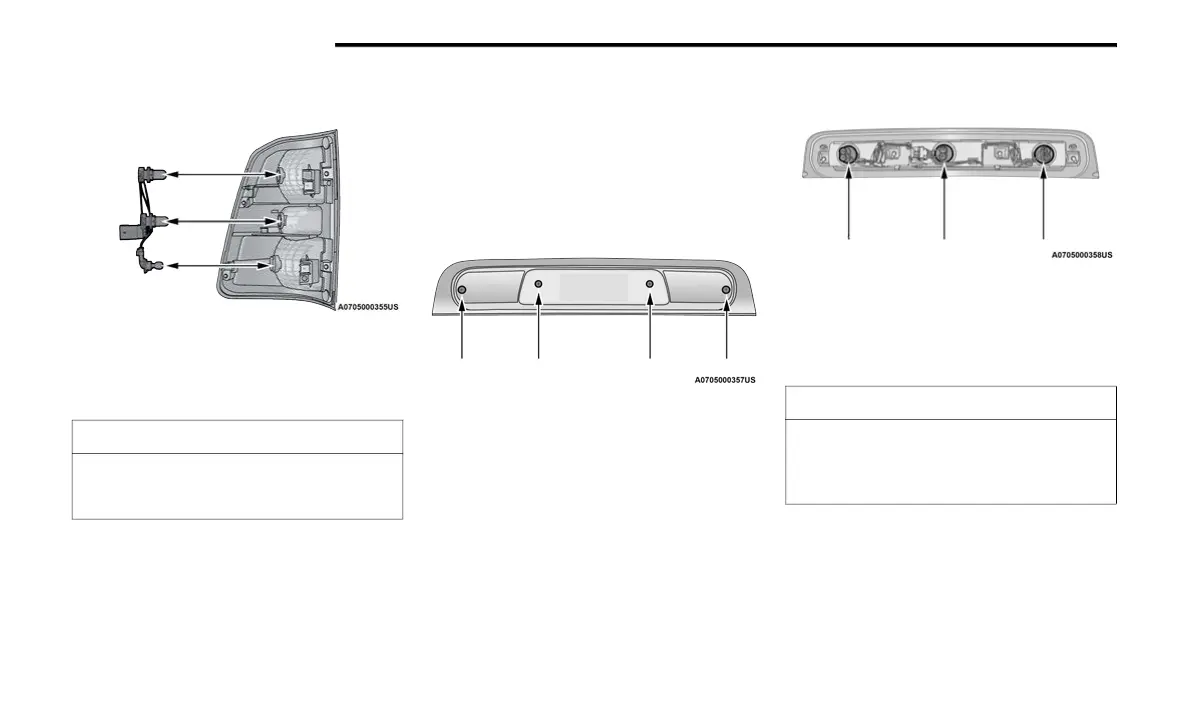

CHMSL Mounting Screw Locations
2. Separate the connector holding the housing
and
wiring harness to the body.
CHMSL Bulb Location
3. Turn the desired bulb socket a quarter turn
coun
terclockwise and remove the socket and
bulb from housing.
4. Pull the desired bulb straight from the socket.
Outside Bulbs: Cargo Lamps
Inside Bulb: Center High Mounted Stop
Lamp
5. Reverse the procedure for installation of bulbs
and
housing.
CAUTION!
Do not contaminate the bulb glass by touching it
with your fingers or by allowing it to contact other
oily surfaces. Shortened bulb life will result.
CAUTION!
Do not contaminate the bulb glass by touching it
with your fingers or by allowing it to contract
other oily surfaces. Shortened bulb life will
result.
