FOG LAMPS — IF EQUIPPED
Please see an authorized dealer for service on LED
and Halogen front fog lamps.
Halogen
See below steps to replace:
1. Reach under and behind the front fascia/
bum
per to access the back of the front fog
lamp housing.
2. Disconnect the fog lamp wiring harness
conn
ector from the fog lamp bulb.

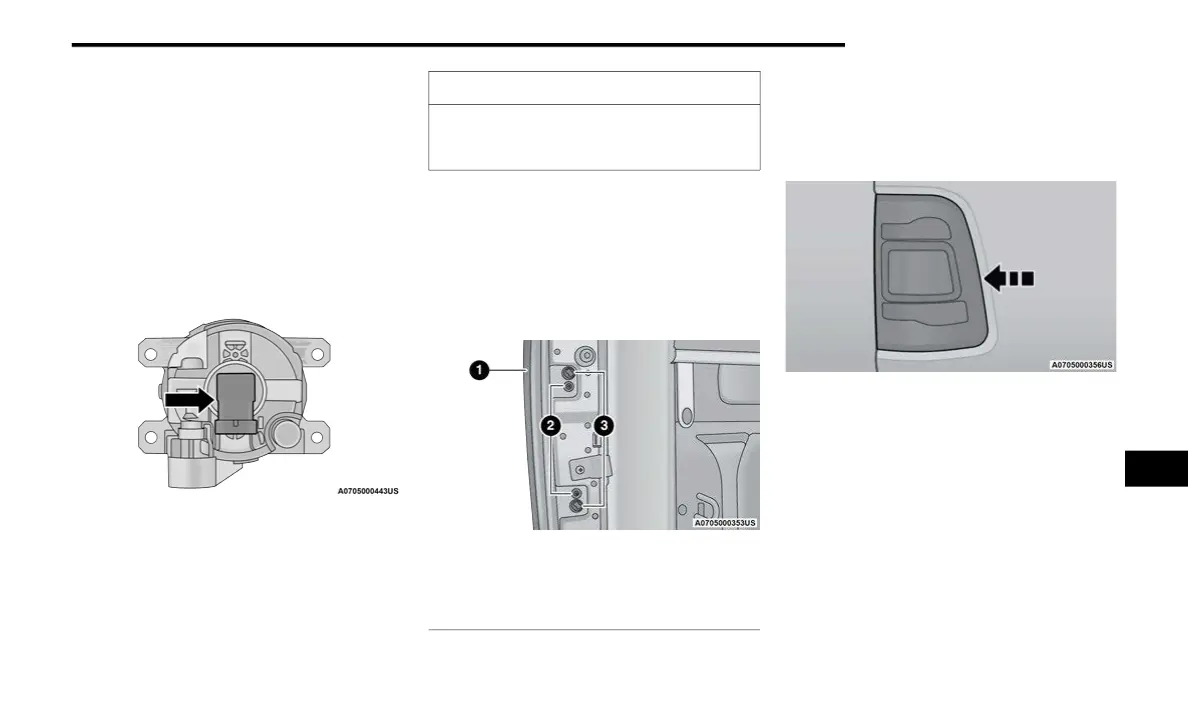

Fog Lamp Bulb
3. Rotate the bulb counterclockwise a quarter
tur
n to unlock the bulb from the housing.
4. Pull the bulb straight out from the housing.
5. R
everse the procedure to install the bulb and
cove
r.
REAR TAIL/STOP, TURN SIGNAL AND BACKUP
LAMPS
See below steps to replace:
1. Remove the two screws and push pin
reta
iners that pass through the bed sheet
metal.
Tail Lamp Locations
2. Pull the outboard side of the lamp rearward far
enou
gh to unsnap the two receptacles on the
outboard side of the lamp housing from the
two plastic snap post retainers in the outer box
side panel.
Tail Lamp Removal
CAUTION!
Do not contaminate the bulb glass by touching it
with your fingers or by allowing it to contact other
oily surfaces. Shortened bulb life will result.
1 — Tail Lamp
2 — Fasteners
3 — Push - Pin Retainers
