8 MAINTENANCE & LUBRICATION
8.2 MACHINE: LUBRICATE THE FOLLOWING POINTS. WEEKLY OR EVERY 40
WORKING HOURS ____________________________________________________
1. Lubricate the following with Shell Darina R2 grease.
(a) Lift arm pivots (A Fig.8.2.3).
(b) Rear Axle centre pivot (A Fig.8.2.1).
(c) Steering rams-inner pivots (A Fig.8.2.2)
(d) Steering ram rod end (A Fig.8.2.2).
(e) Steering Track Rod, Rod End (A Fig.8.2.2).
(f) Bonnet Actuator Ball Joints.
2 . Lubricate the following with oil:
Divertor Valve spools and operating mechanism.

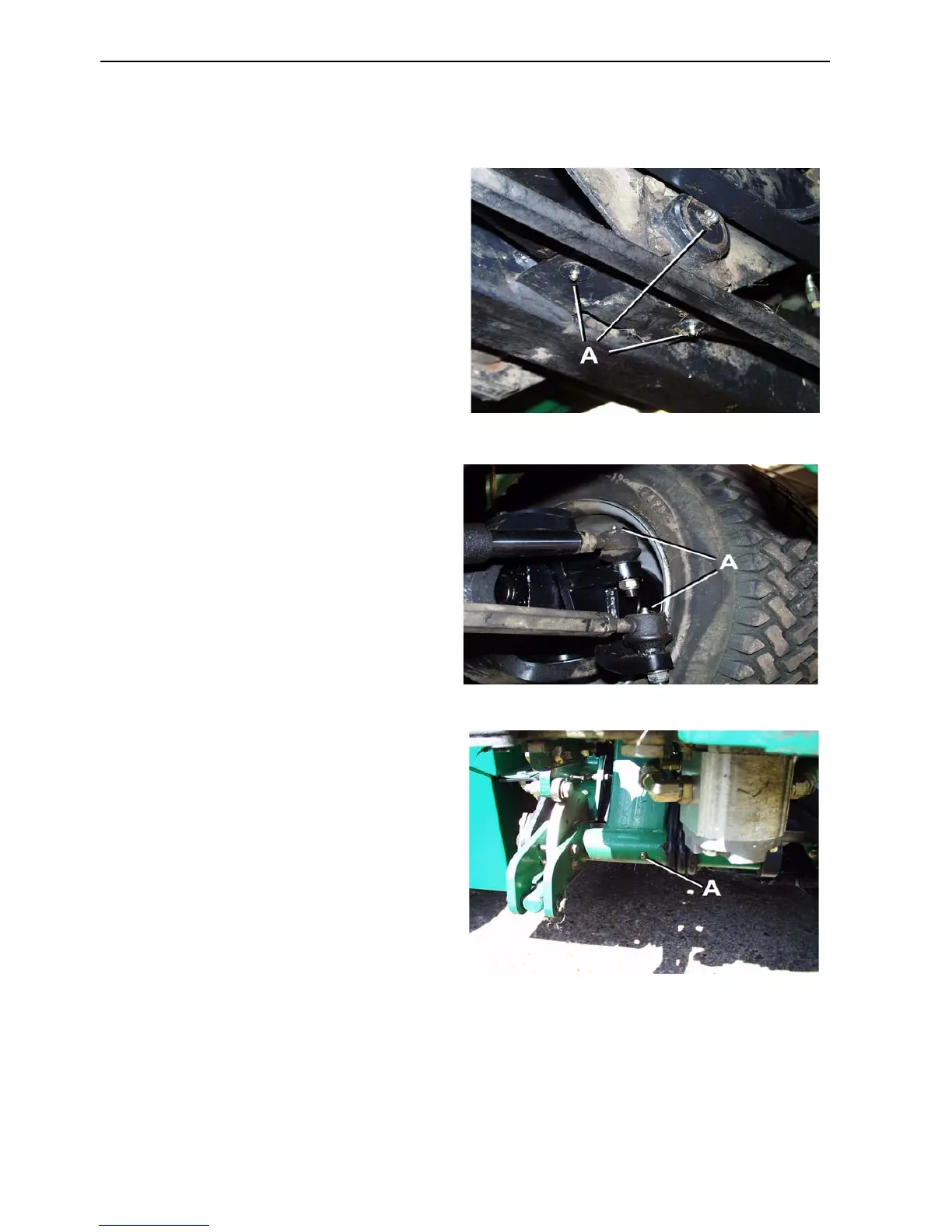

Fig.8.2.1
