9 ADJUSTMENTS

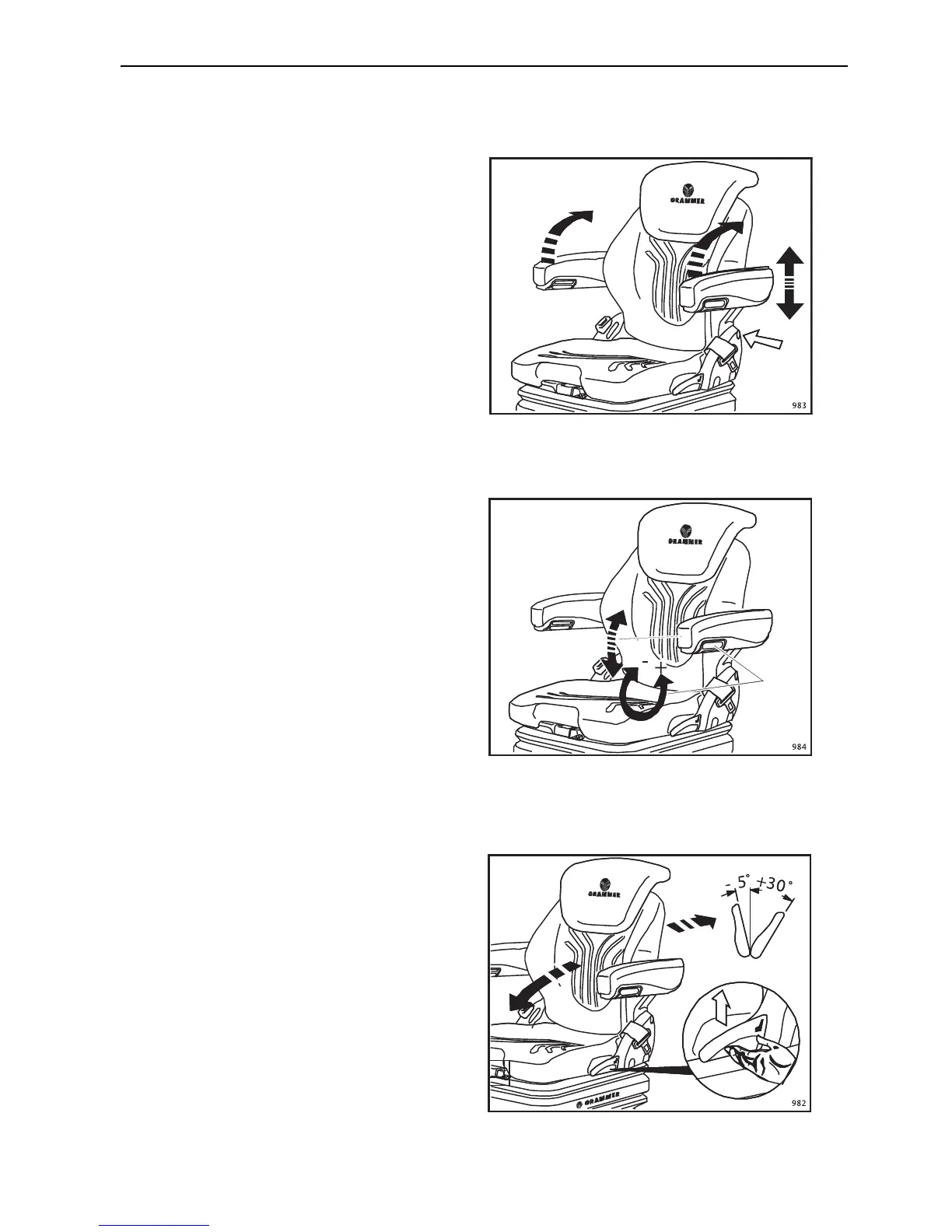

9.10.6 ARMRESTS * **_____________________________________________________
The armrests can be folded up if required and the
height individually adjusted.
To adjust the armrests for height, separate the
round cap (see arrow) from the cover, loosen the
hexagon nut (size 13 mm) behind it and adjust
the armrests to the desired position (5-steps)
and tighten the nut again.
Replace the cap onto the nut.
* If Fitted
** Optional Extra
9.10.7 ARMREST ADJUSTMENT * ___________________________________________
The inclination of the armrests can be modified
by turning the adjustment knob.
When turning the knob to the outside (+) the
front part of the armrest will be lifted, when
turning the knob to inside (-) it will be lowered.
* If Fitted
** Optional Extra
9.10.8 BACKREST ADJUSTMENT____________________________________________
Moving the locking lever upwards loosens the
notching of the backrest adjustment.
After the adjustment, the locking lever must
latch into the desired position. It should not
be possible to move the backrest into another
position when it is locked.
For an ergonomic use the backrest can be
adjusted in a range of –5 to +30 degrees
(15 steps of 2.5 degrees each).
* If Fitted
** Optional Extra
